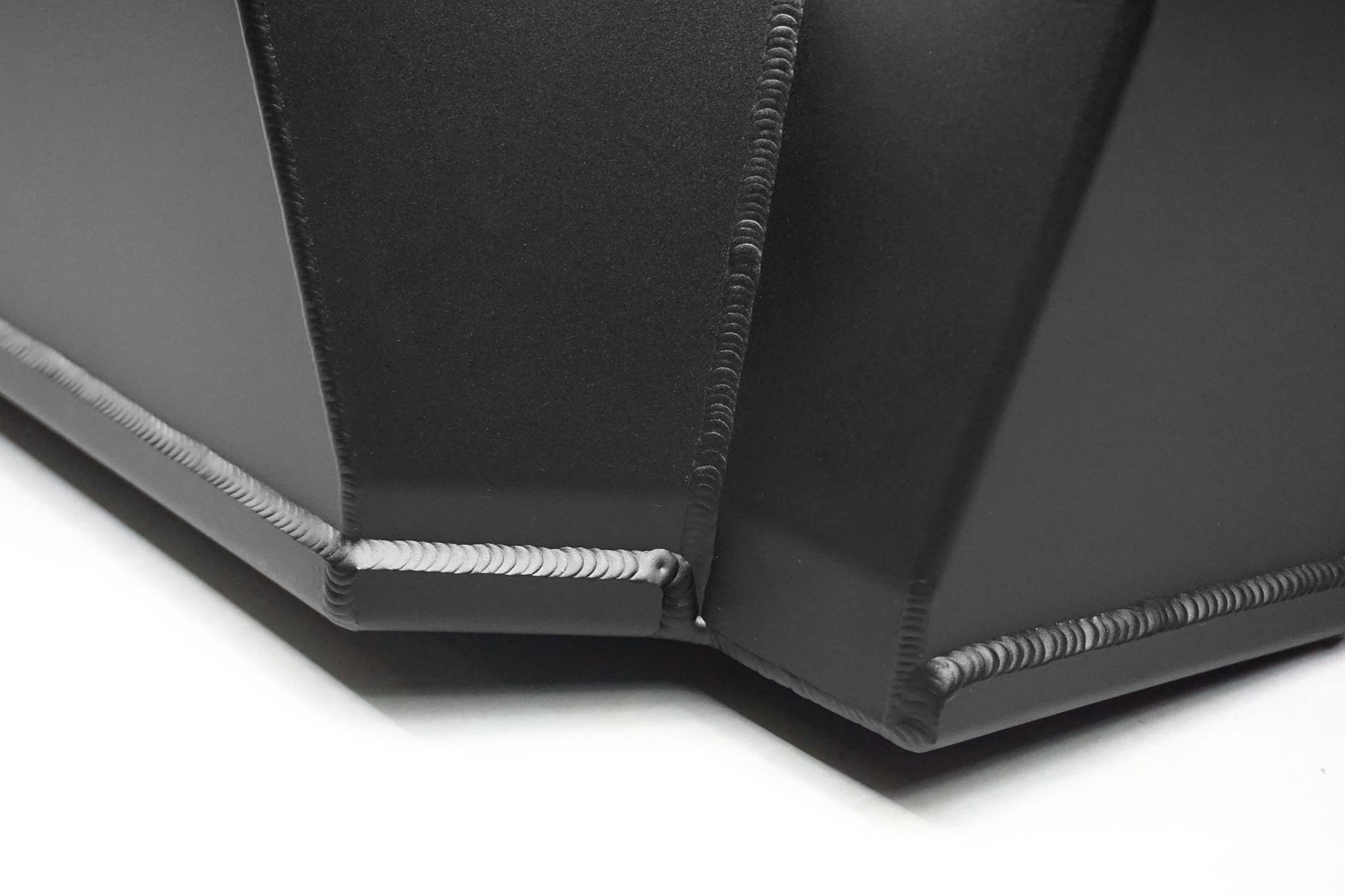

Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // AUXILIARY FUEL SYSTEM
REV. 2026 / v1.1

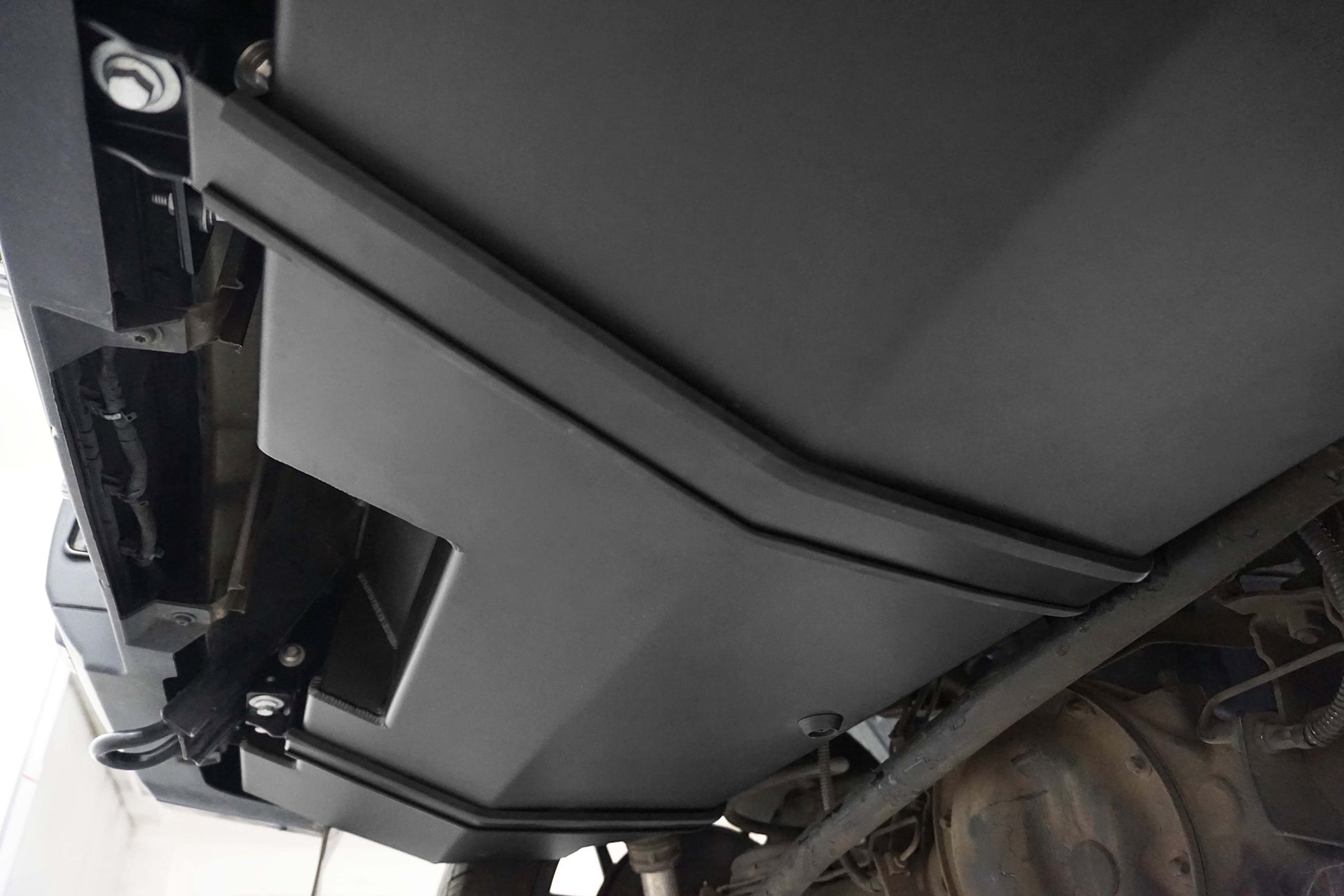

BENZ G-CLASS AUXILIARY FUEL TANK 75L
Auxiliary fuel system engineered to extend driving range through seamless fuel transfer while preserving factory balance, fitment, and system reliability.
TOTAL CAPACITY
175L
EST.RANGE INCREASE
400km - 620km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELG-Class
YEAR2019+
ENGINE2.0L Turbo I4 / 3.0L Turbo I6 / 4.0L Twin-Turbo V8
FUELGasoline
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|

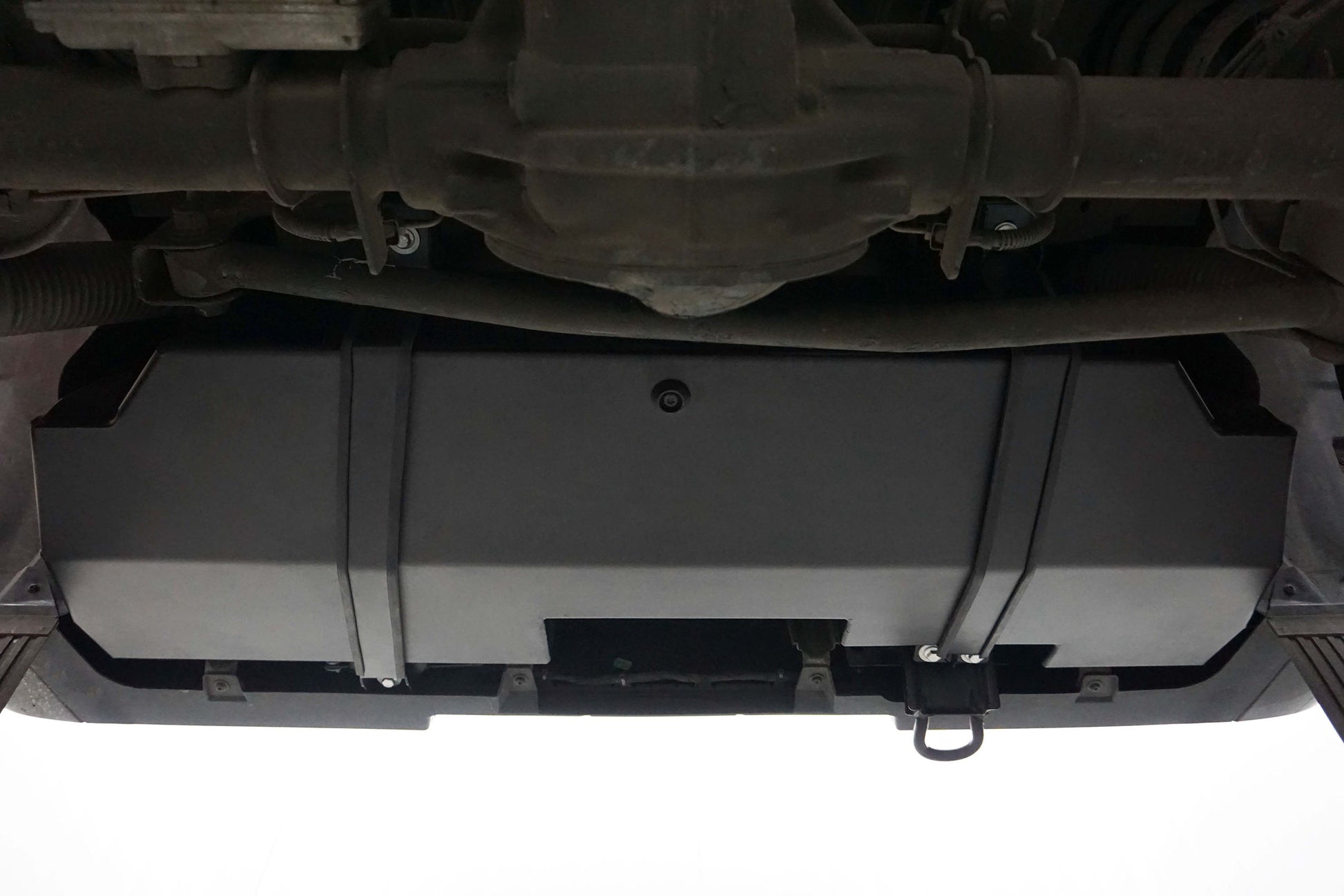

| MOUNT POSITION | Rear Mount |
| NET WEIGHT | 20KG |
| GROUND CLEARANCE | NO LOSS-HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
175L
Factory: 100L + Fuken: 75L
EST. RANGE INCREASE
400km - 620km+
Fuel System Logic
SYSTEM TYPE
Rear-Mounted Auxiliary System with Fuel Transfer Pump
Premium rear-mounted auxiliary fuel system precision-engineered for the 2019+ Mercedes-Benz G-Class W463A (2.0L I4 / 3.0L I6 / 4.0L Twin-Turbo V8 Gas). Custom-contoured for the iconic G-Wagon rear geometry, it seamlessly expands total gasoline capacity from 100L to 175L. Equipped with an integrated high-flow transfer pump and dedicated cabin switch, it delivers fuel safely on demand into the primary tank while remaining 100% isolated from Mercedes’ sensitive CAN-bus and EVAP systems for a guaranteed codes-free overland upgrade.
Gauge Behavior: The factory Mercedes-Benz fuel gauge continues to read the 100% OEM primary tank level accurately. When the auxiliary transfer pump is activated via the cabin control, fuel is pumped into the primary tank, causing the factory gauge needle and Distance to Empty (DTE) readout to smoothly rise or stay sustained. Low-fuel warnings operate normally with a physical reserve of approx. 18L remaining in the primary tank.
Structure & Protection Design
01
02

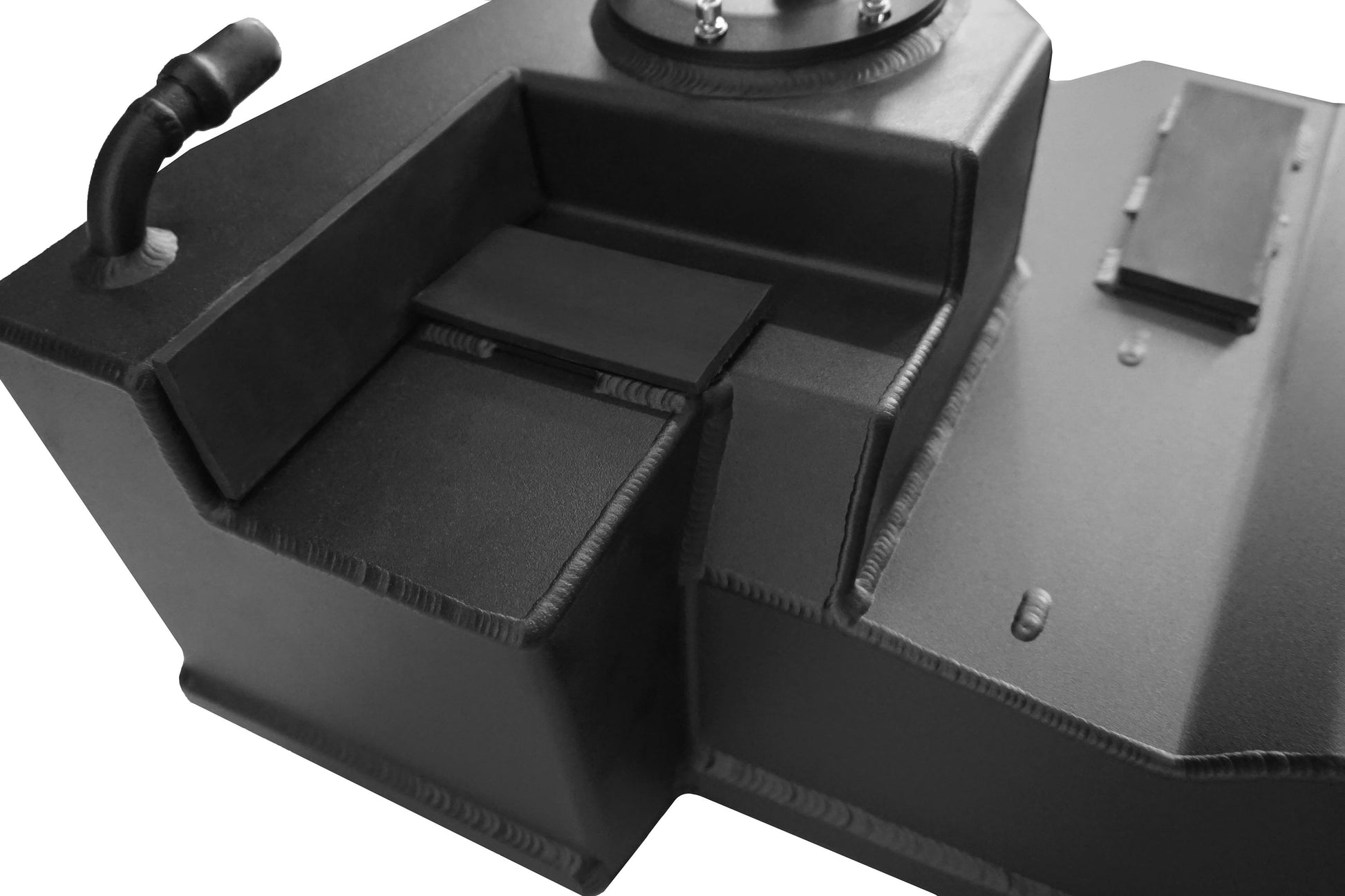

Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03

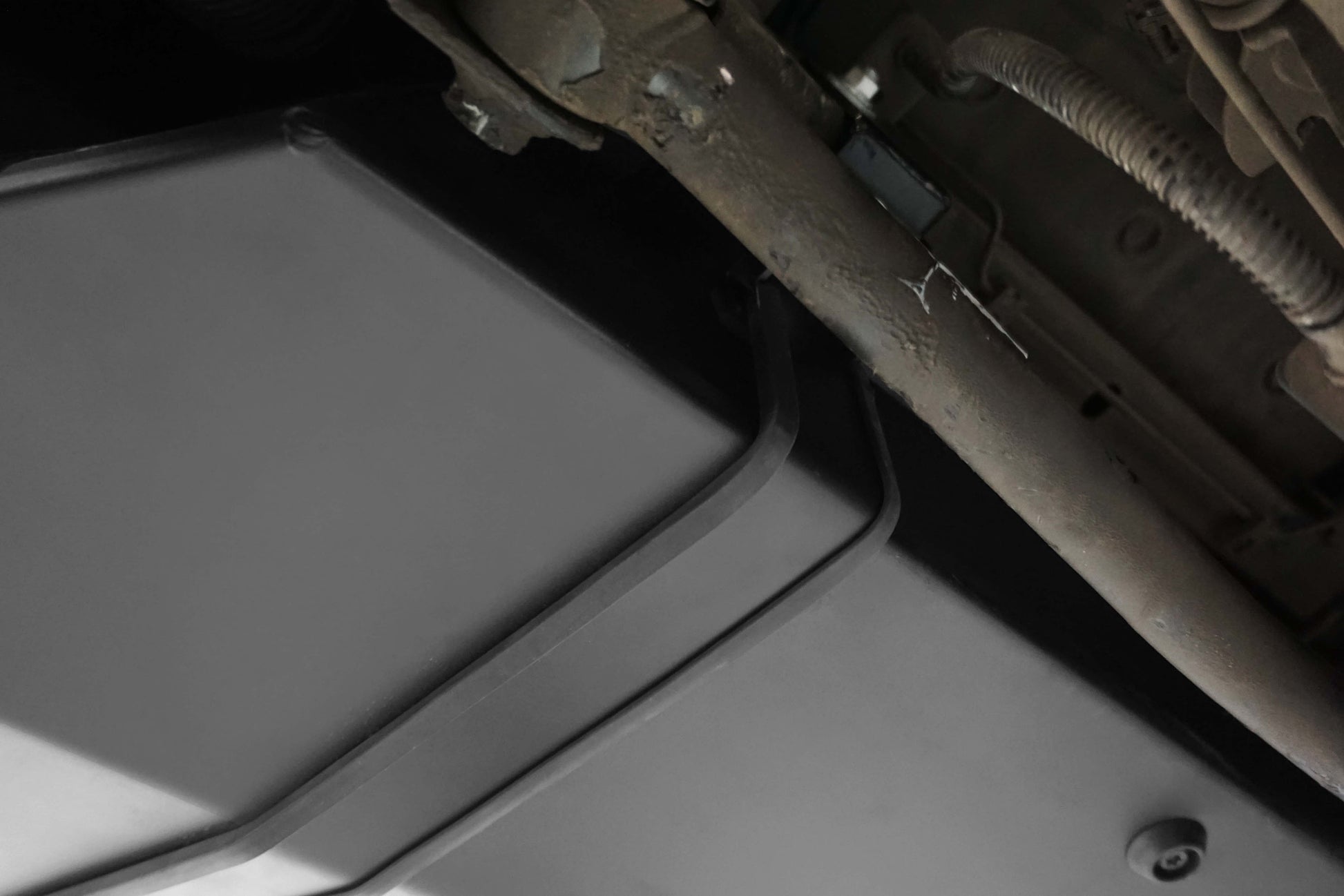

Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Quick-Connect Fuel Line Fittings

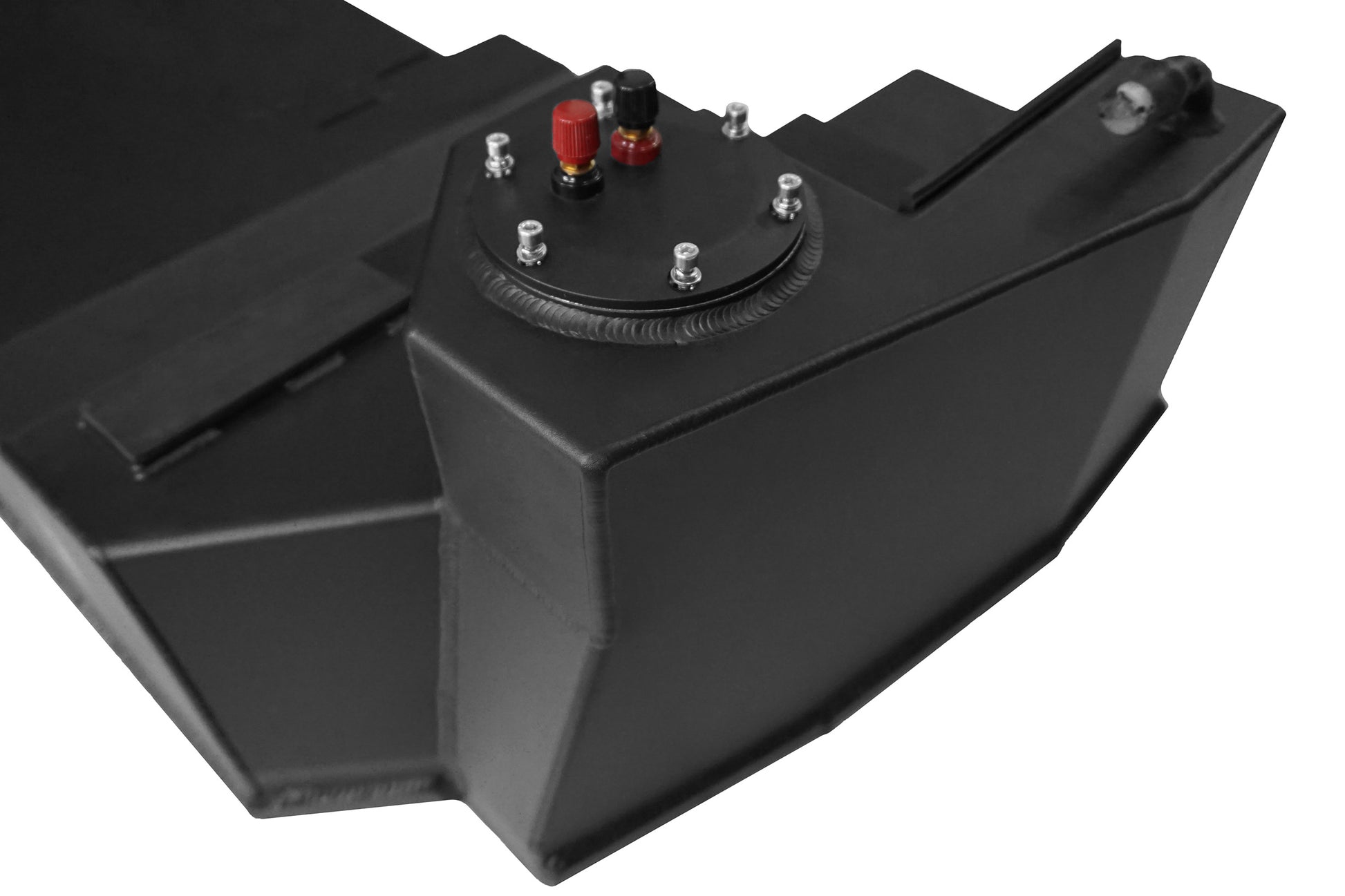

Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
05
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
06
Direct Bolt-On Installation

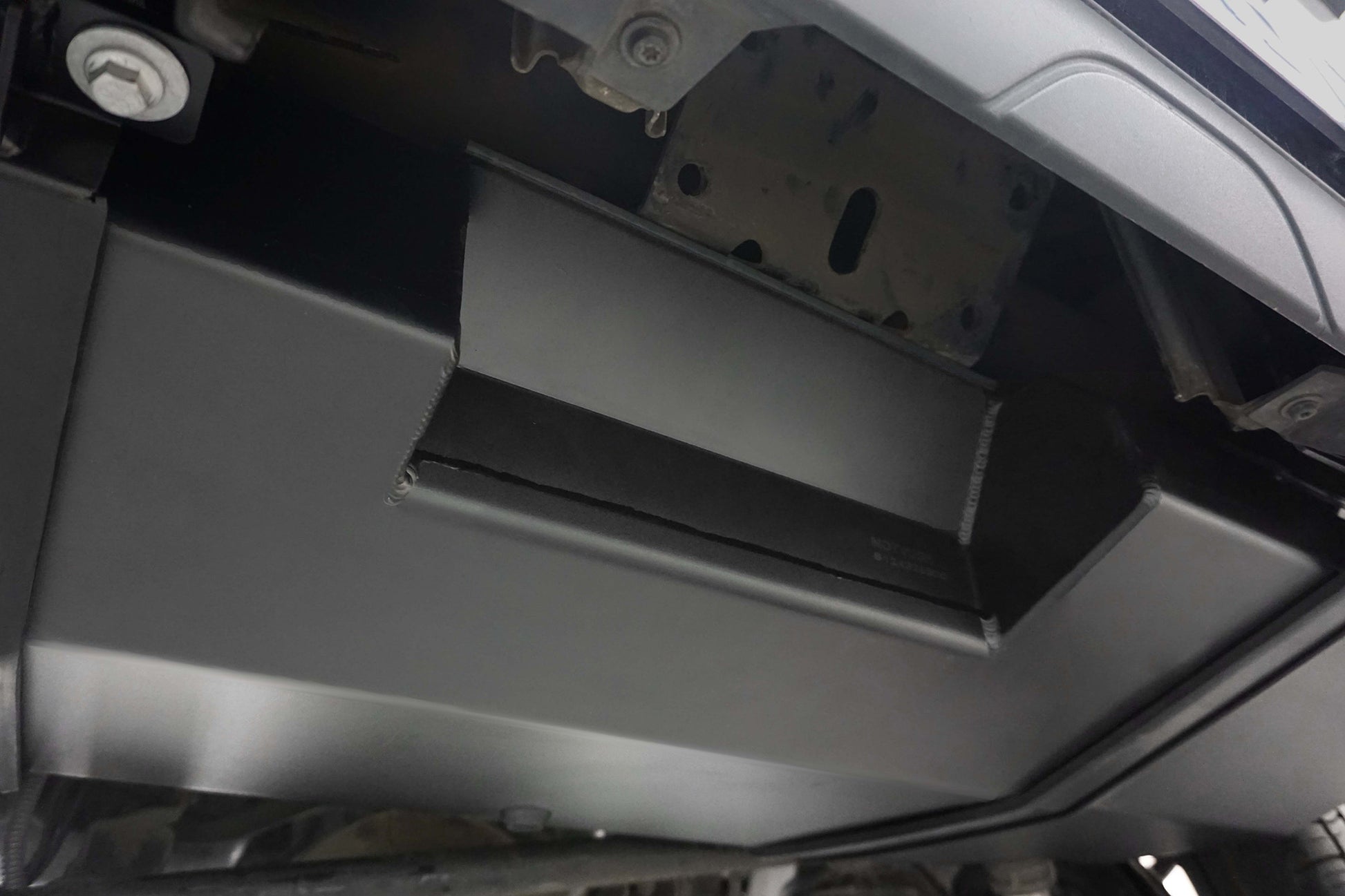

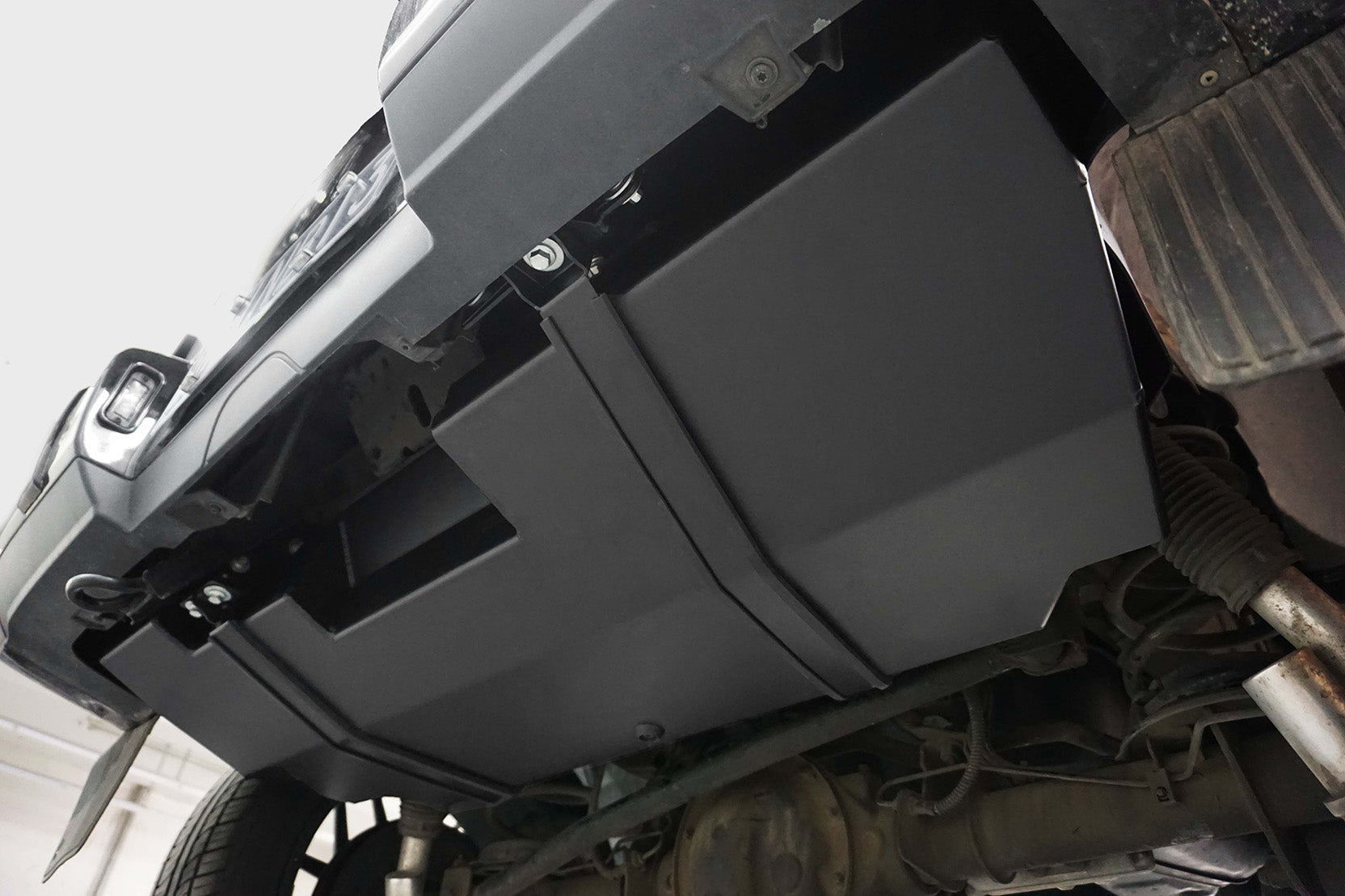

Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
07
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
20KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
56KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
3 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

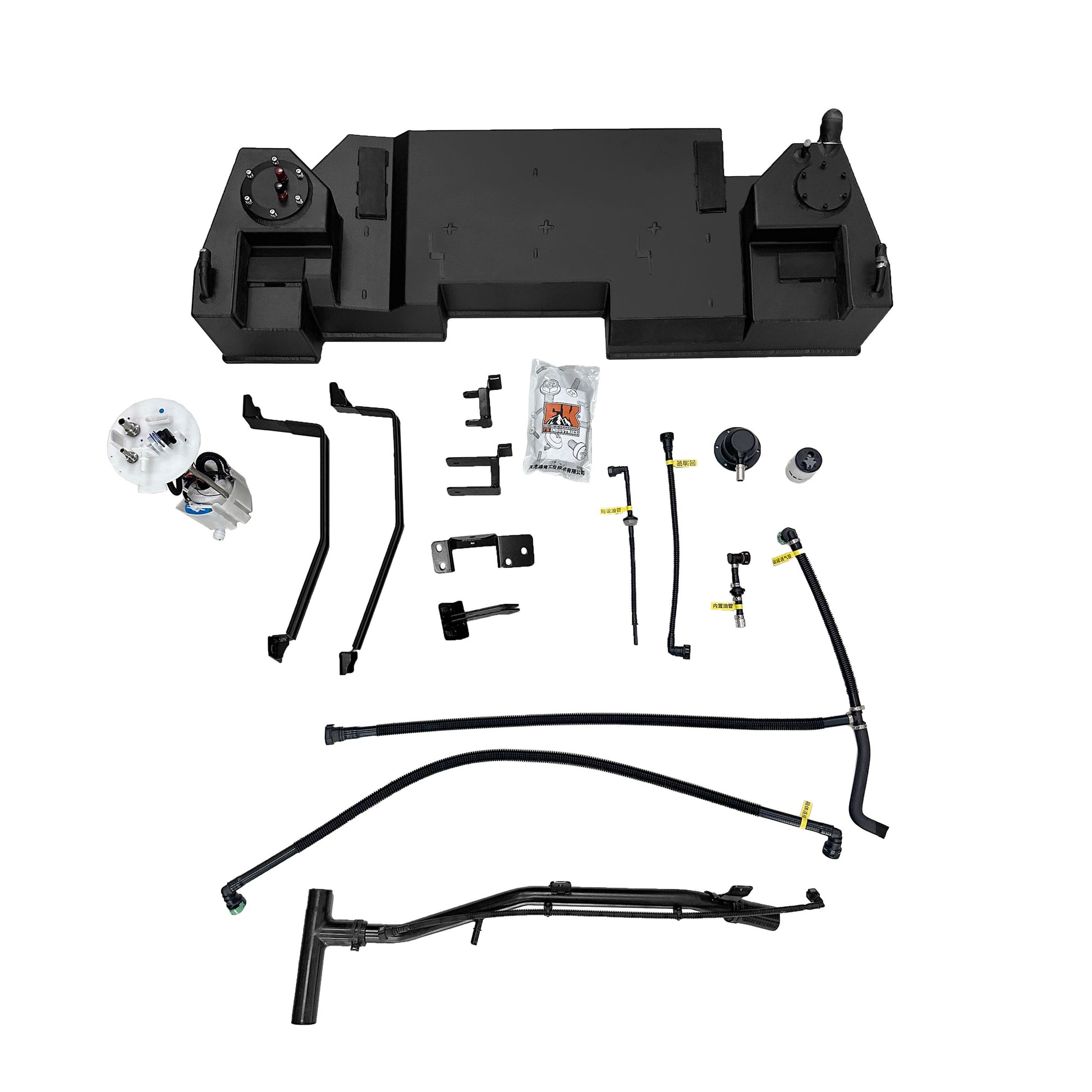

What's In The Box
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
