Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // PRIMARY FUEL SYSTEM UPGRADE
REV. 2026 / v1.1

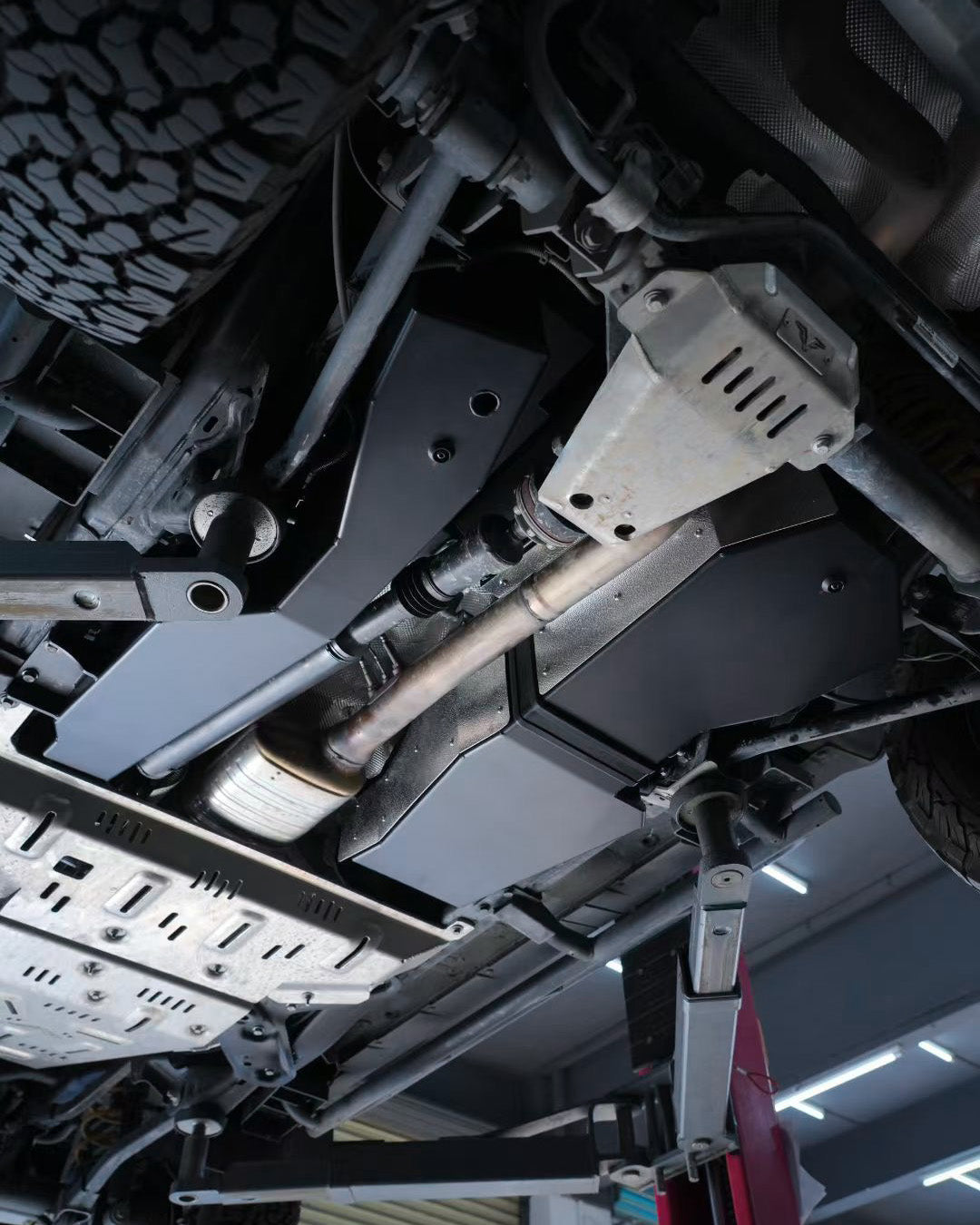

Main + Auxiliary Fuel Tank System

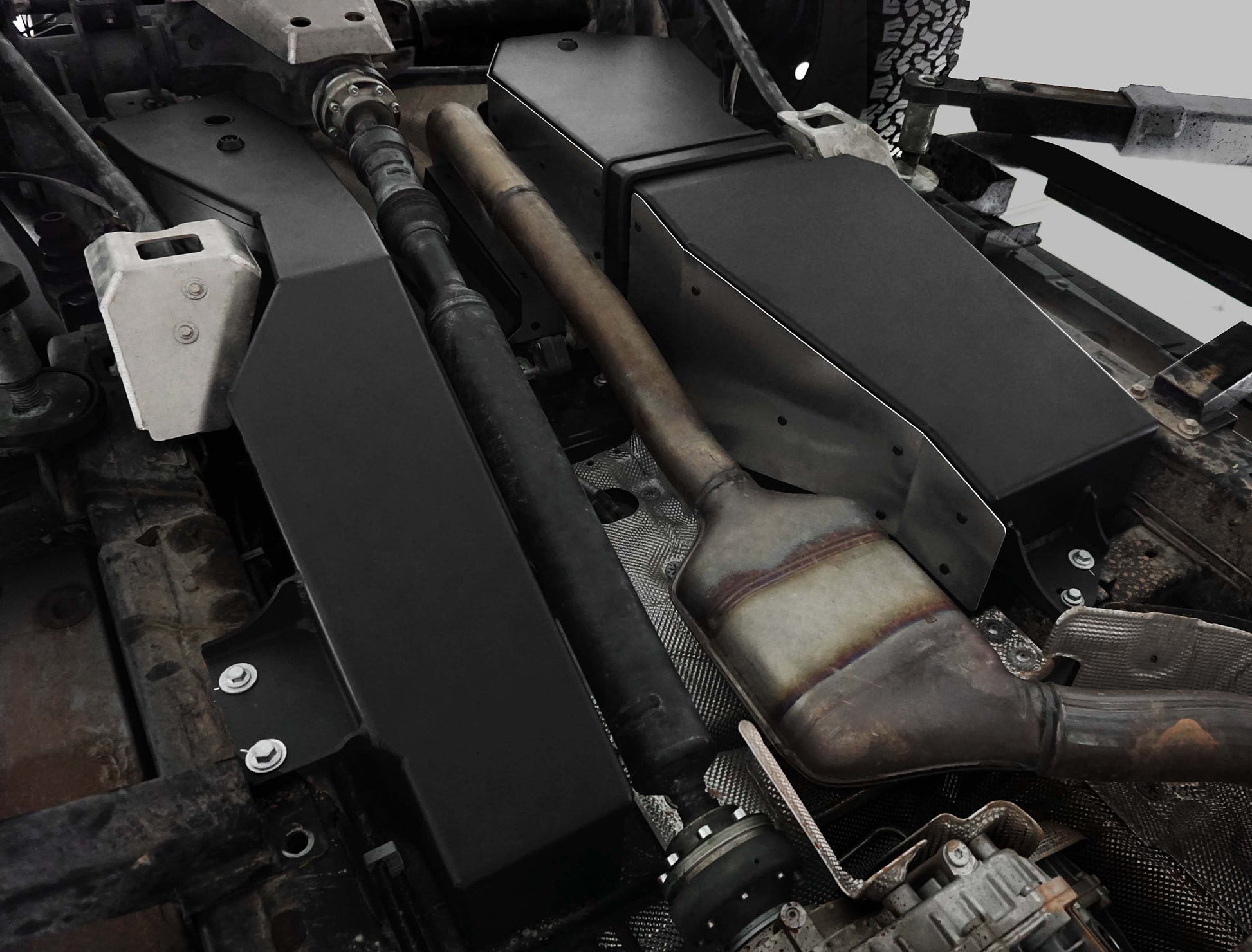

Integrated main and auxiliary fuel tank system engineered to significantly expand total fuel capacity while maintaining OEM integration, zero-loss ground clearance, and factory venturi transfer system functionality across 2022+ INEOS Grenadier platforms.
TOTAL CAPACITY
165L
EST.RANGE INCREASE
460km - 710km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELIneos Grenadier
YEAR2022+
ENGINE3.0L Turbo Inline-6 Gasoline / 3.0L Turbo Diesel Inline-6
FUELGasoline/Diesel
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | Replacement+Side Mount |
| NET WEIGHT | 40KG |
| GROUND CLEARANCE | NO LOSS-HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
165L
Factory: 90L + Fuken: 75L
EST. RANGE INCREASE
460km - 710km+
Fuel System Logic
SYSTEM TYPE
Integrated Primary Upgrade with Auto-Siphon Sub-Tank

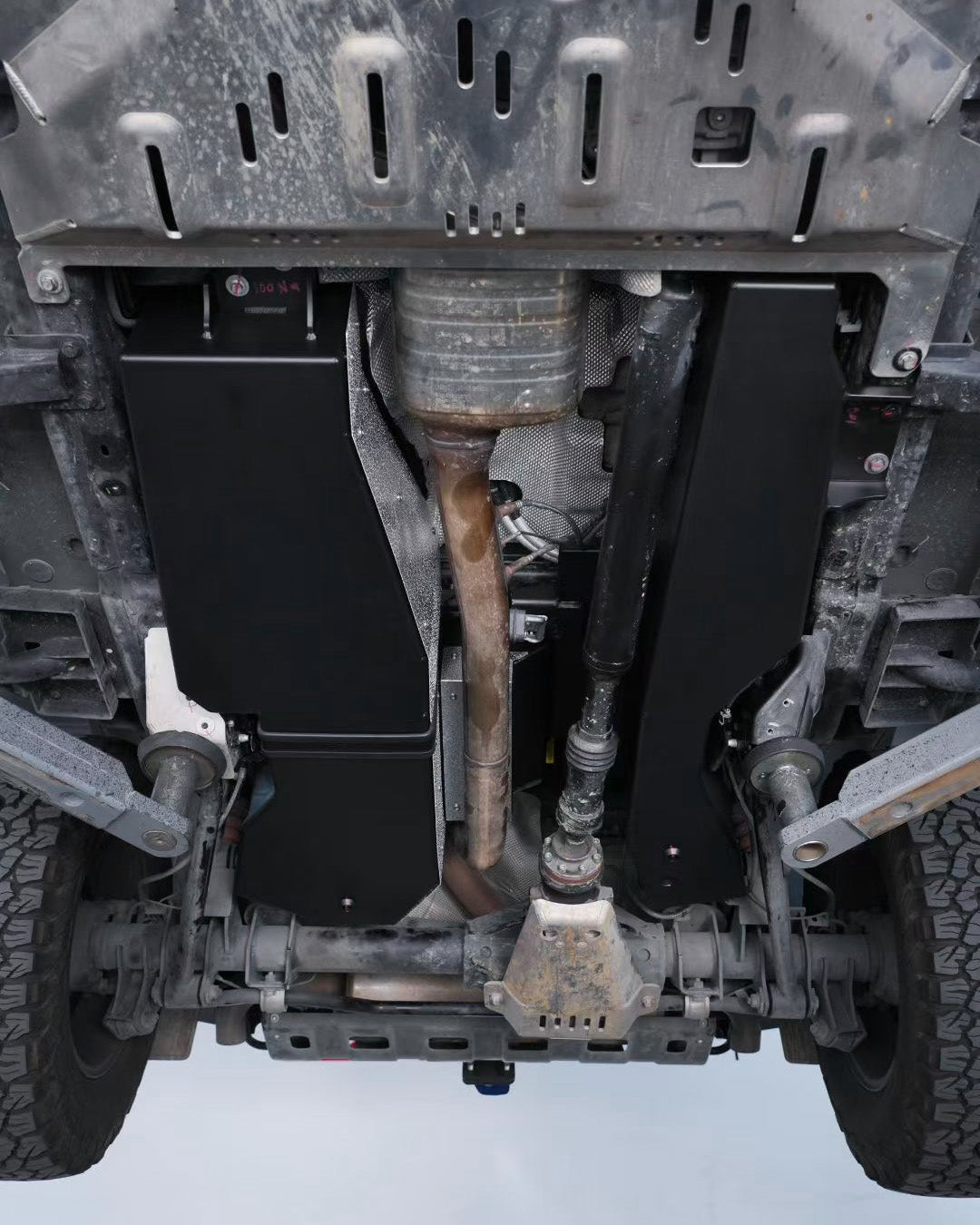

Ultimate high-capacity dual-tank system precision-engineered for the 2022+ INEOS Grenadier (3.0L Turbo I6 Gas B58 / Diesel B57). Features an upgraded 120L replacement primary tank paired with a 45L side-mounted auxiliary tank, boosting total fuel volume from 90L to 165L without sacrificing underbody ground clearance. The auxiliary tank transfers fuel automatically to the expanded primary tank via the OEM venturi system—requiring zero secondary pumps or manual switches for a 100% codes-free overland upgrade.
Gauge Behavior: The factory fuel gauge will remain sustained at the "Full" position for an extended period as fuel automatically transfers from the 45L auxiliary tank. Once depleted, the gauge smoothly registers the upgraded 120L primary tank, declining much more gradually than stock. When the low-fuel warning triggers, a physical reserve of approx. 18L remains in the main tank. Distance to Empty (DTE) is dynamically calculated by the computer and serves as a general reference.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03

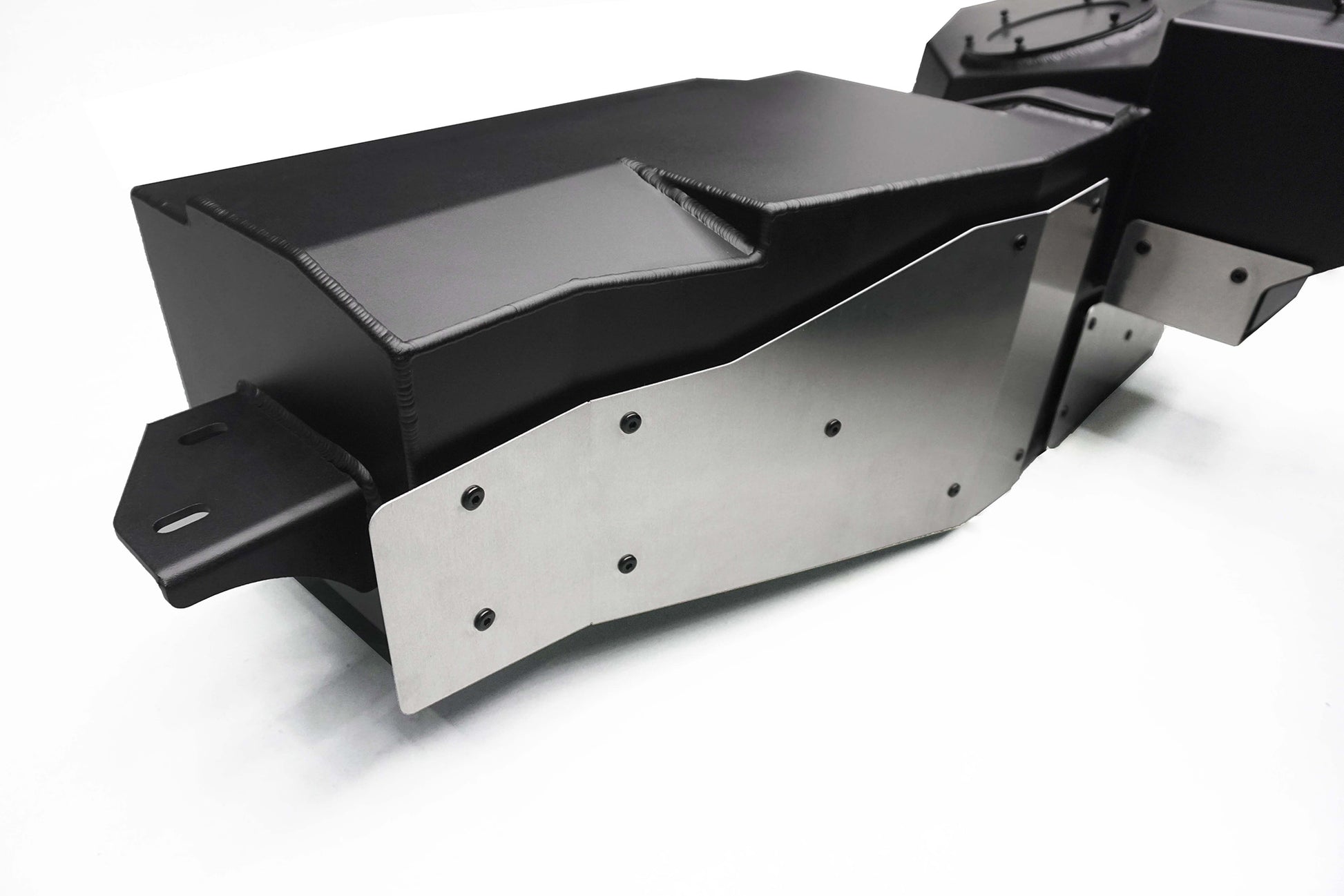

Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
05

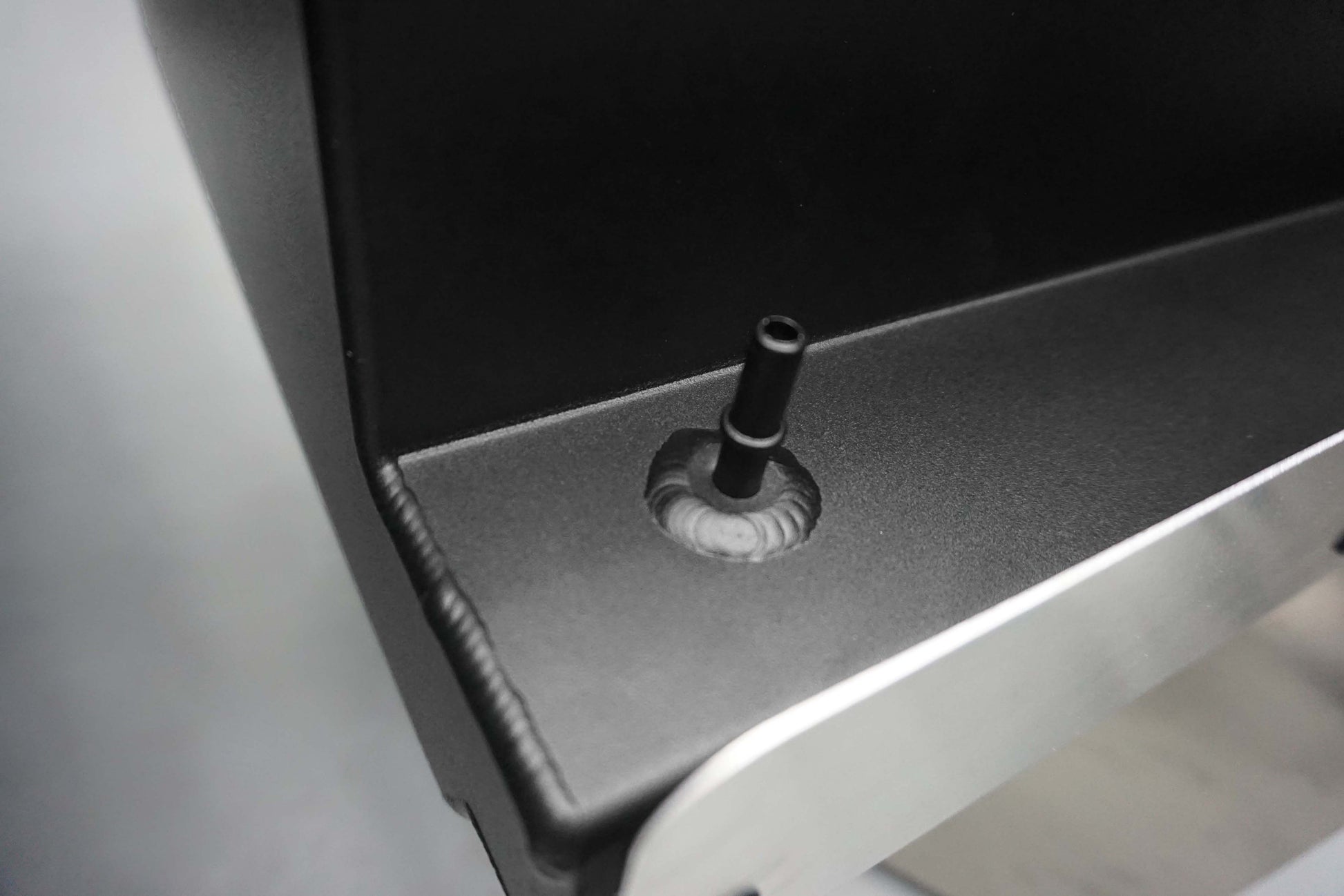

Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
06

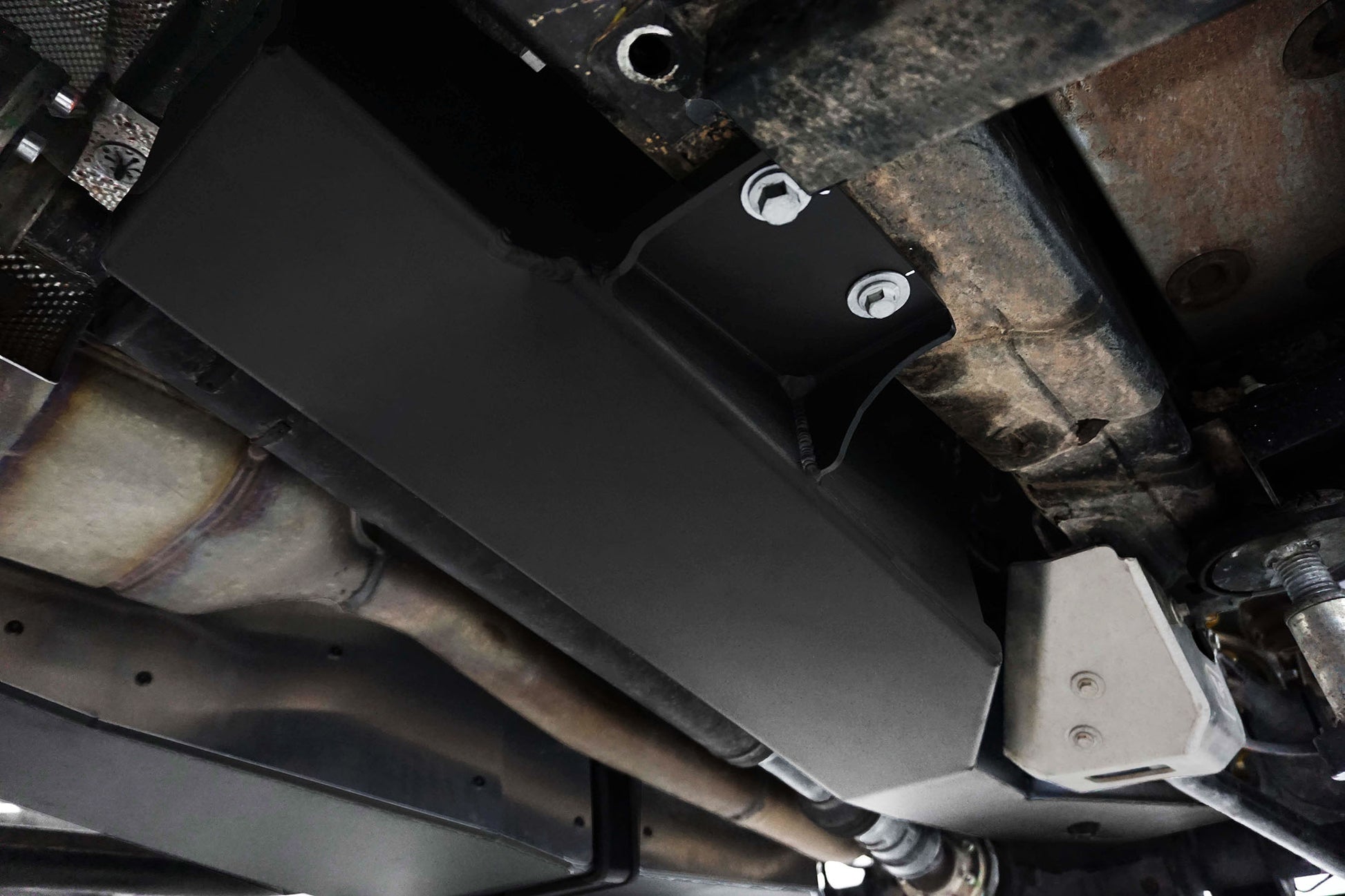

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
07
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
40KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
112KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
4 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

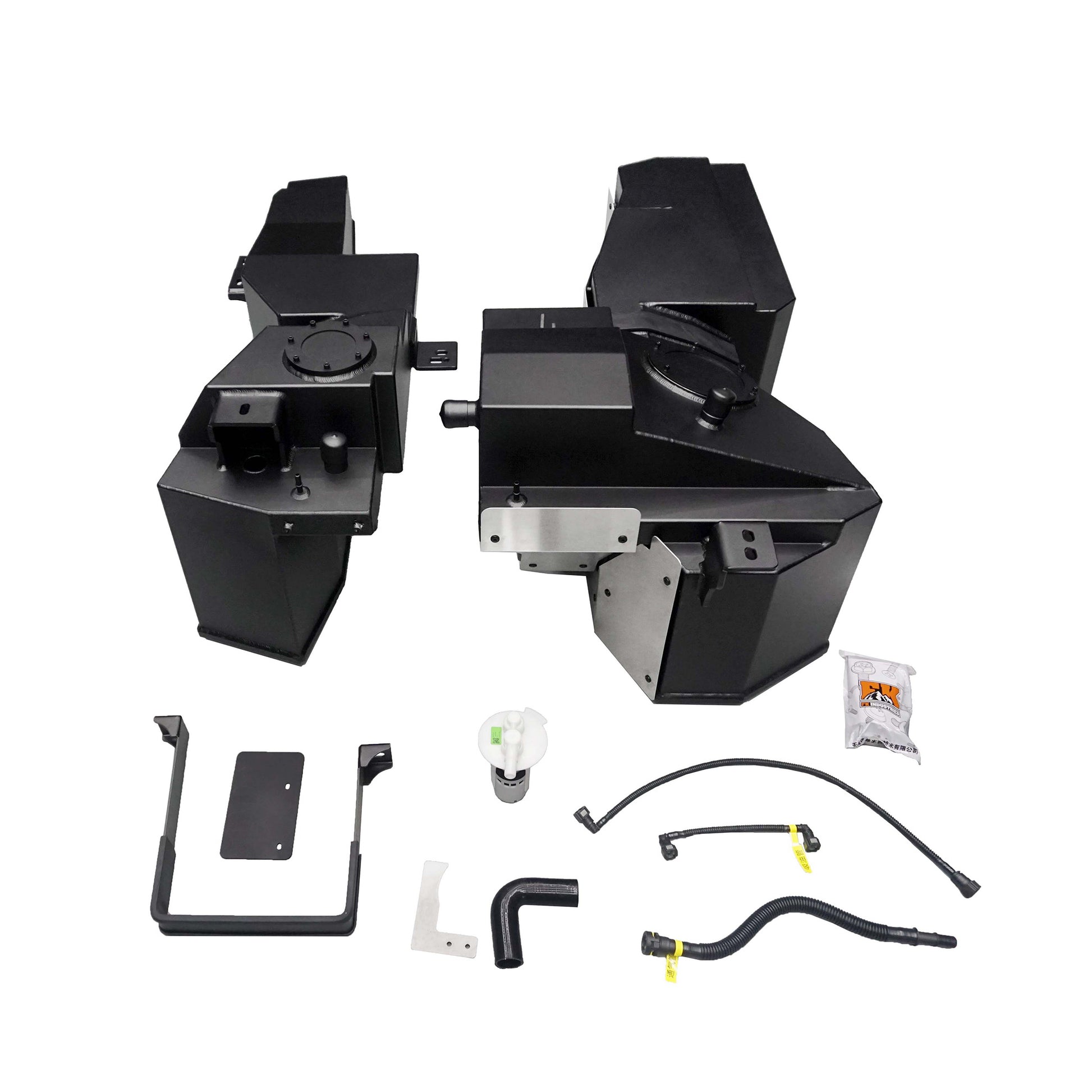

What's In The Box
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
