Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // AUXILIARY FUEL SYSTEM
REV. 2026 / v1.1

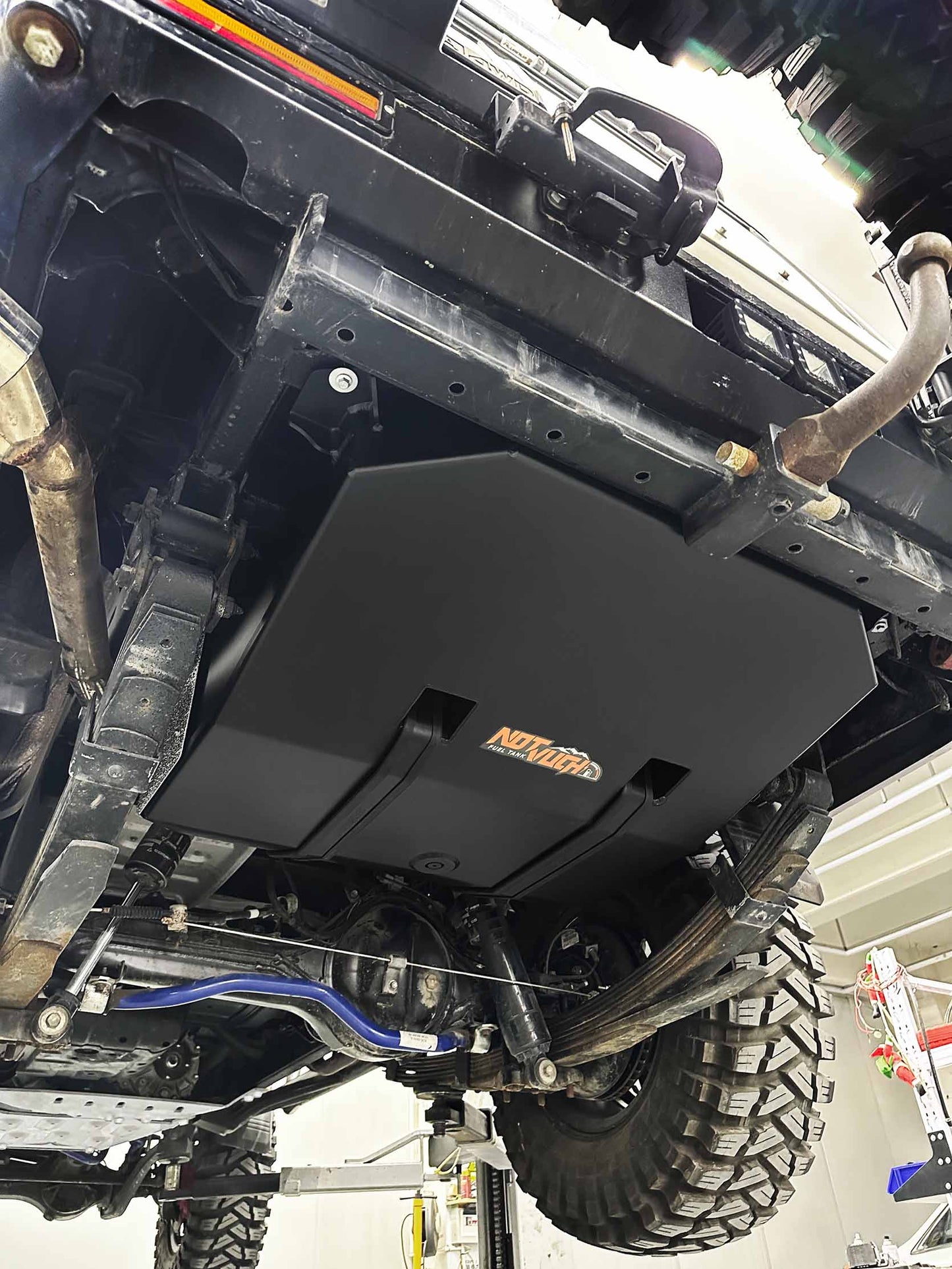

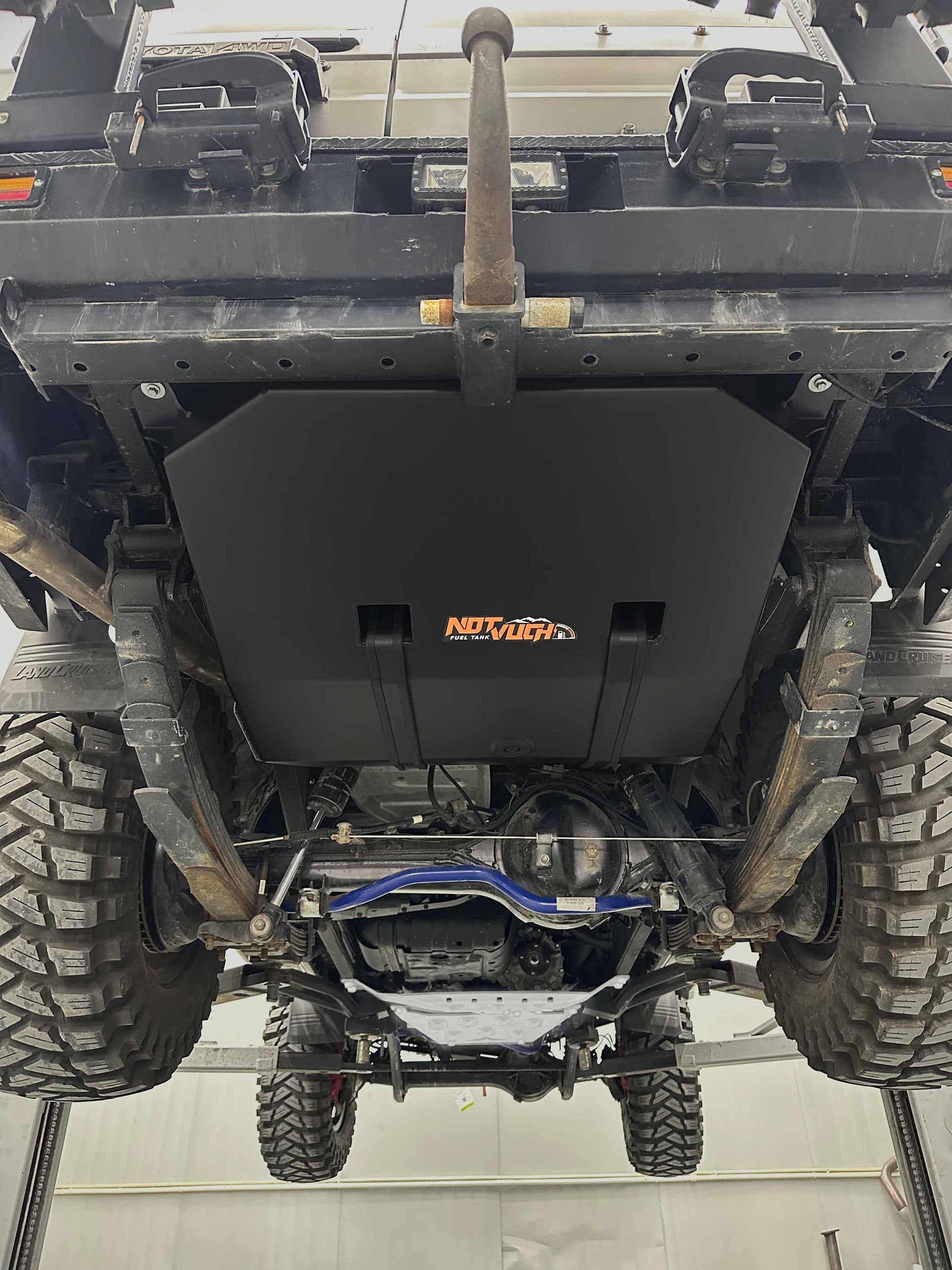

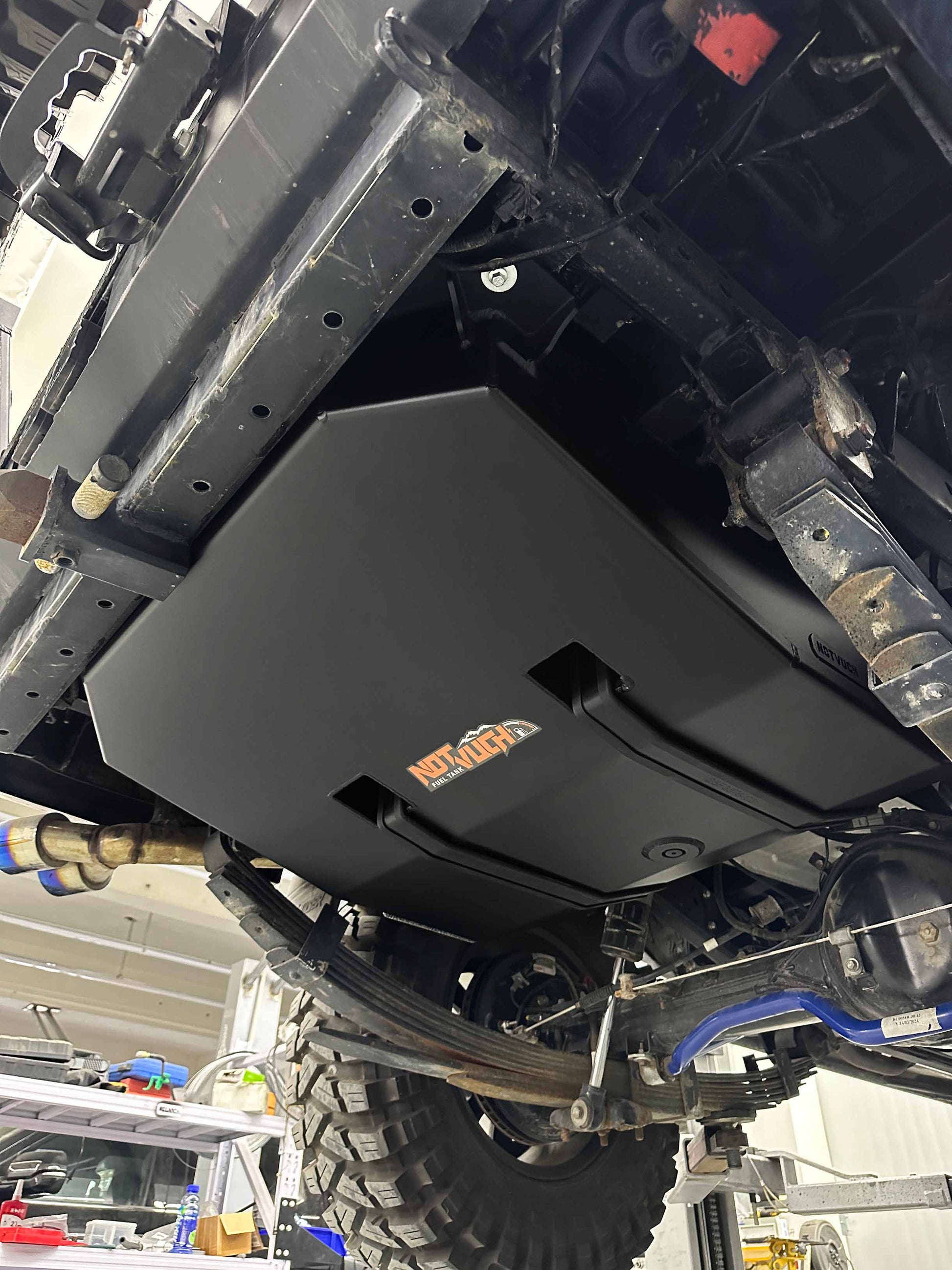

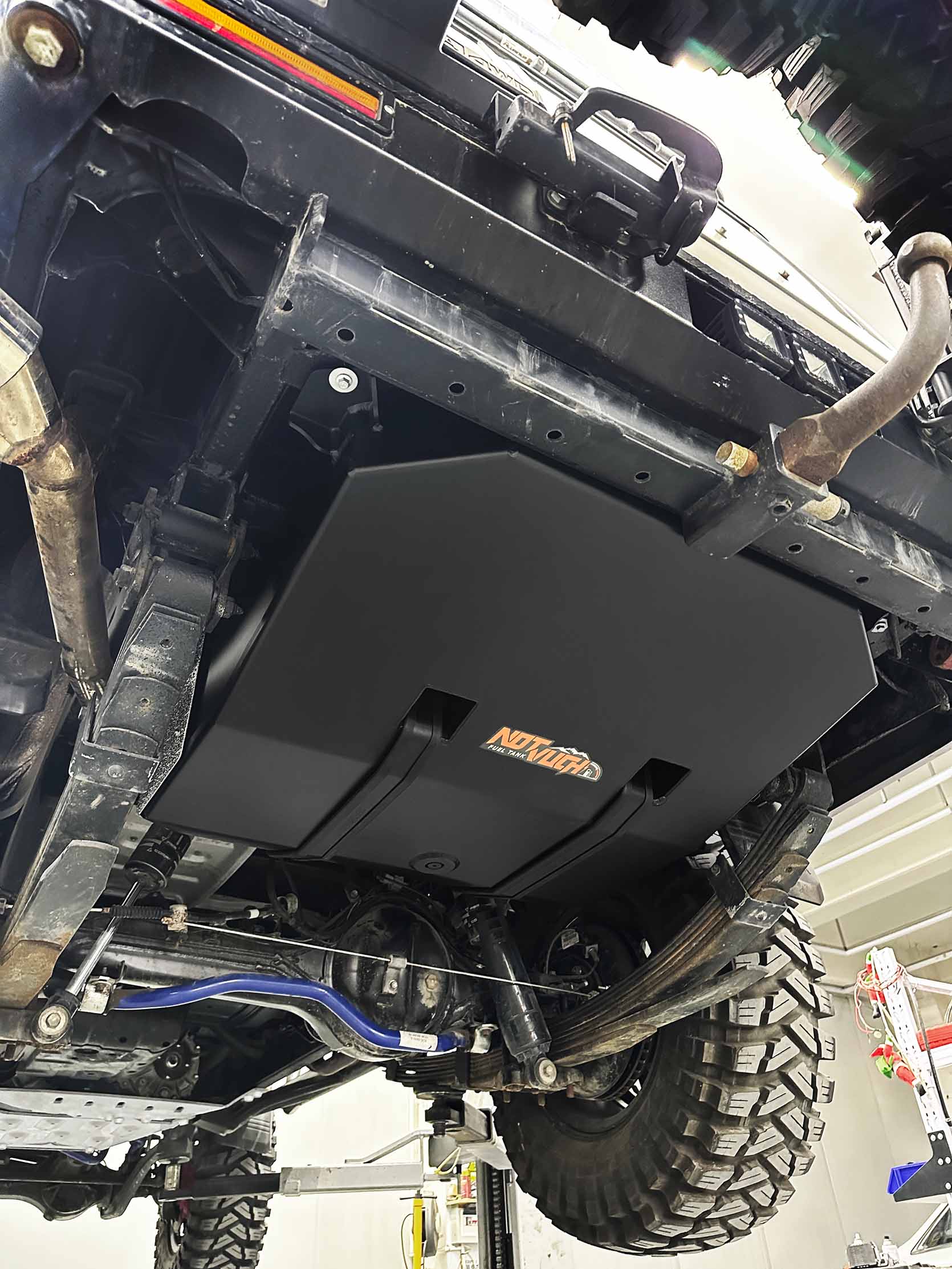

LAND CRUISER 79 AUXILIARY FUEL TANK 145L
Auxiliary fuel system engineered to extend driving range through seamless fuel transfer while preserving factory balance, fitment, and system reliability.
TOTAL CAPACITY
235L
EST.RANGE INCREASE
330km - 520km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELLand Cruiser 79
YEAR2015+
ENGINE2.8L Turbo Diesel / 4.0L V6
FUELGasoline/Diesel
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | REPLACEMENT |
| NET WEIGHT | 28KG |
| GROUND CLEARANCE | NO LOSS-HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
235L
Factory: 180L + Fuken: 55L
EST. RANGE INCREASE
330km - 520km+
Fuel System Logic
SYSTEM TYPE
Direct Replacement
Heavy-duty high-capacity auxiliary (sub) tank upgrade precision-engineered for the 2015+ Toyota Land Cruiser LC79 Single Cab (2.8T Diesel / 4.0L V6 Gas) equipped with factory dual fuel tanks. Designed to directly replace the 90L OEM sub-tank with a massive 145L capacity, expanding total onboard fuel volume from 180L to 235L when paired with the factory 90L main tank. It integrates 100% seamlessly with Toyota’s OEM dual-tank dash switch, transfer pump logic, and fuel senders, delivering a bulletproof, codes-free solution for commercial work and extreme overland expeditions.
Gauge Behavior: The factory dual-tank gauge and in-dash transfer switch system remain 100% functional. When switched to the auxiliary position, the fuel gauge reads the expanded 145L capacity, declining more gradually than stock. When the sub-tank low-fuel warning triggers, a generous physical reserve of approx. 20L remains in the chamber. Distance to Empty (DTE) is dynamically calculated by Toyota's ECU, offering a dependable safety buffer for heavy commercial loads and long-distance Outback touring.

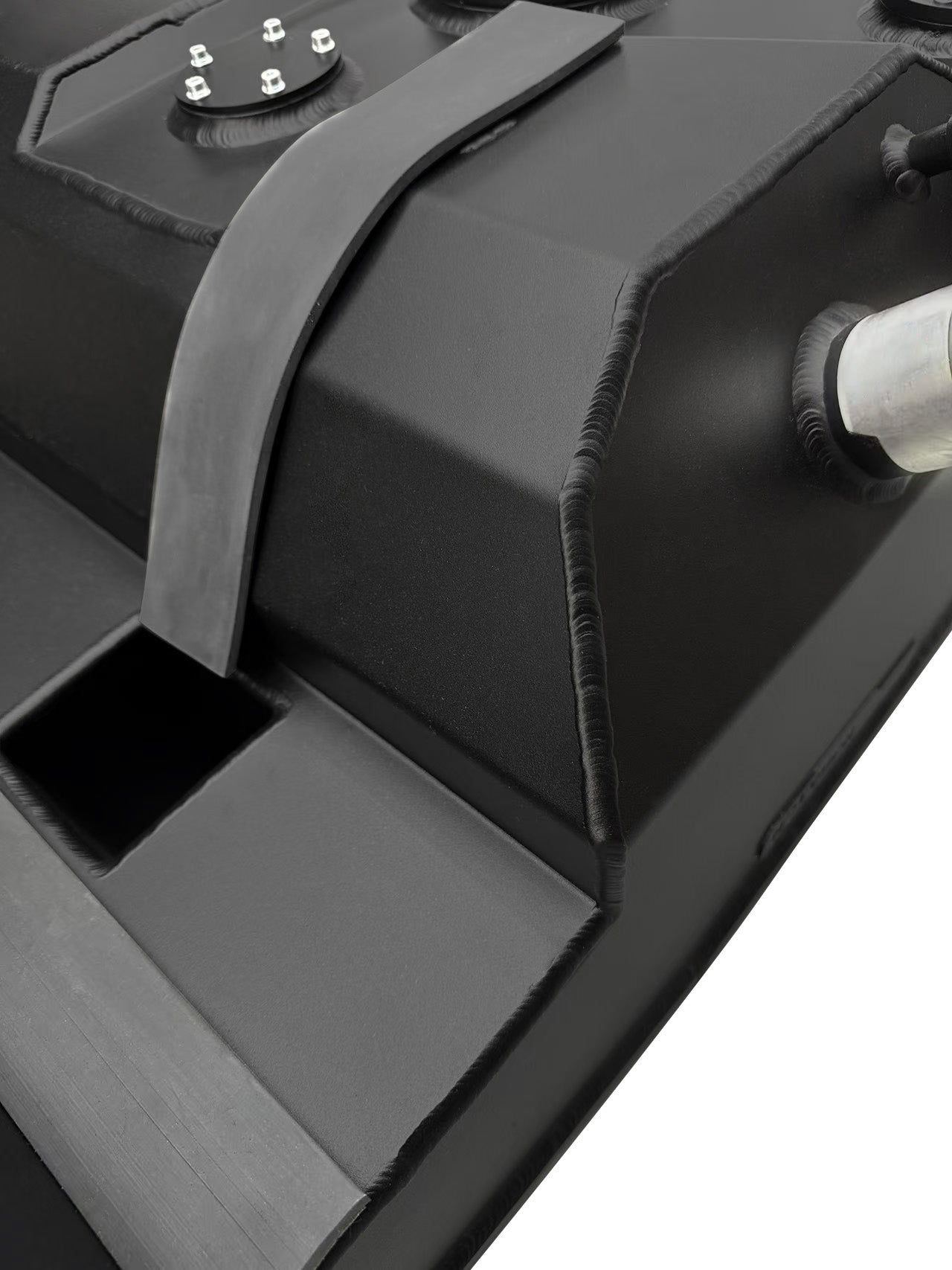

Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04

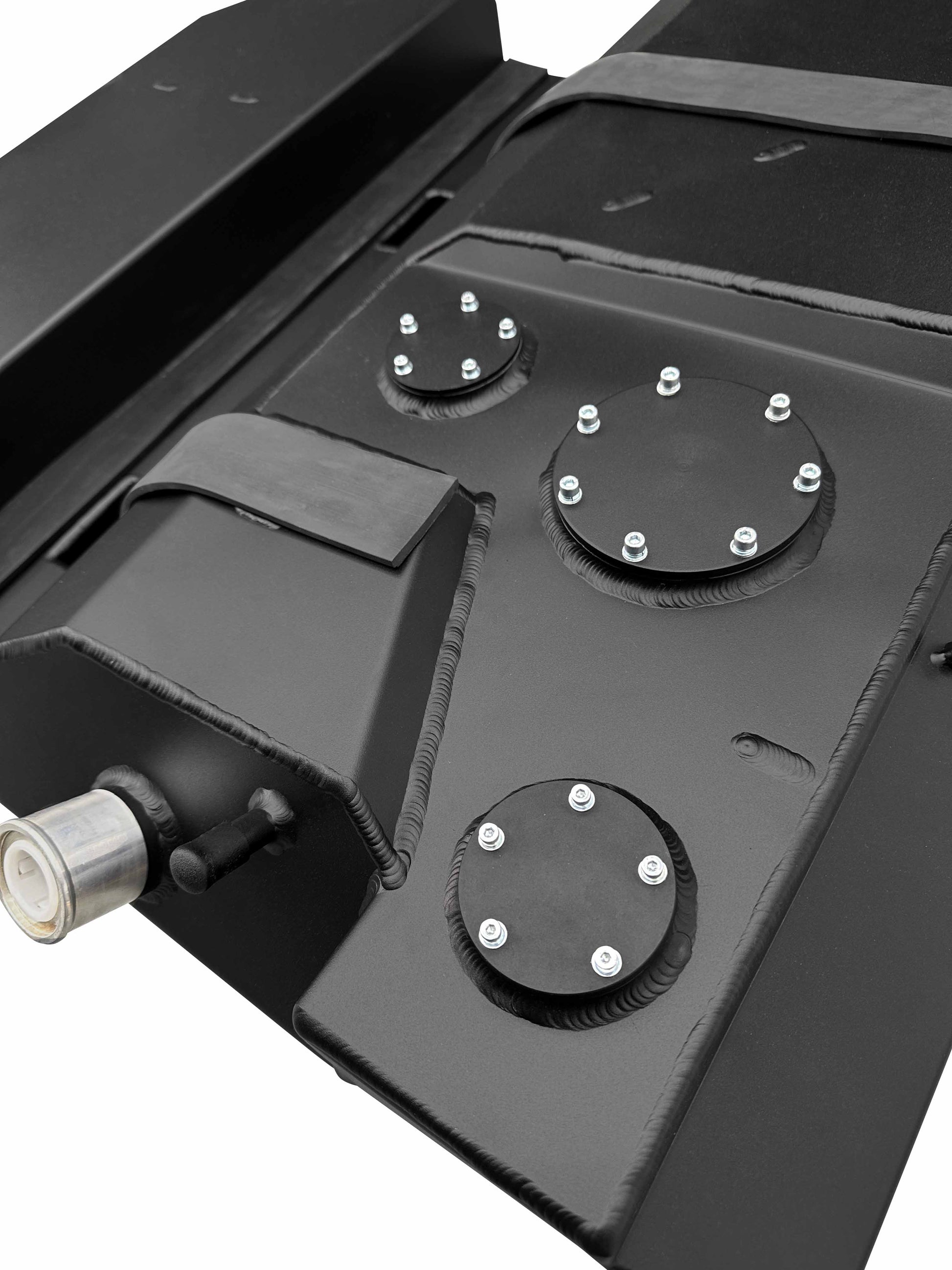

Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
05
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
06

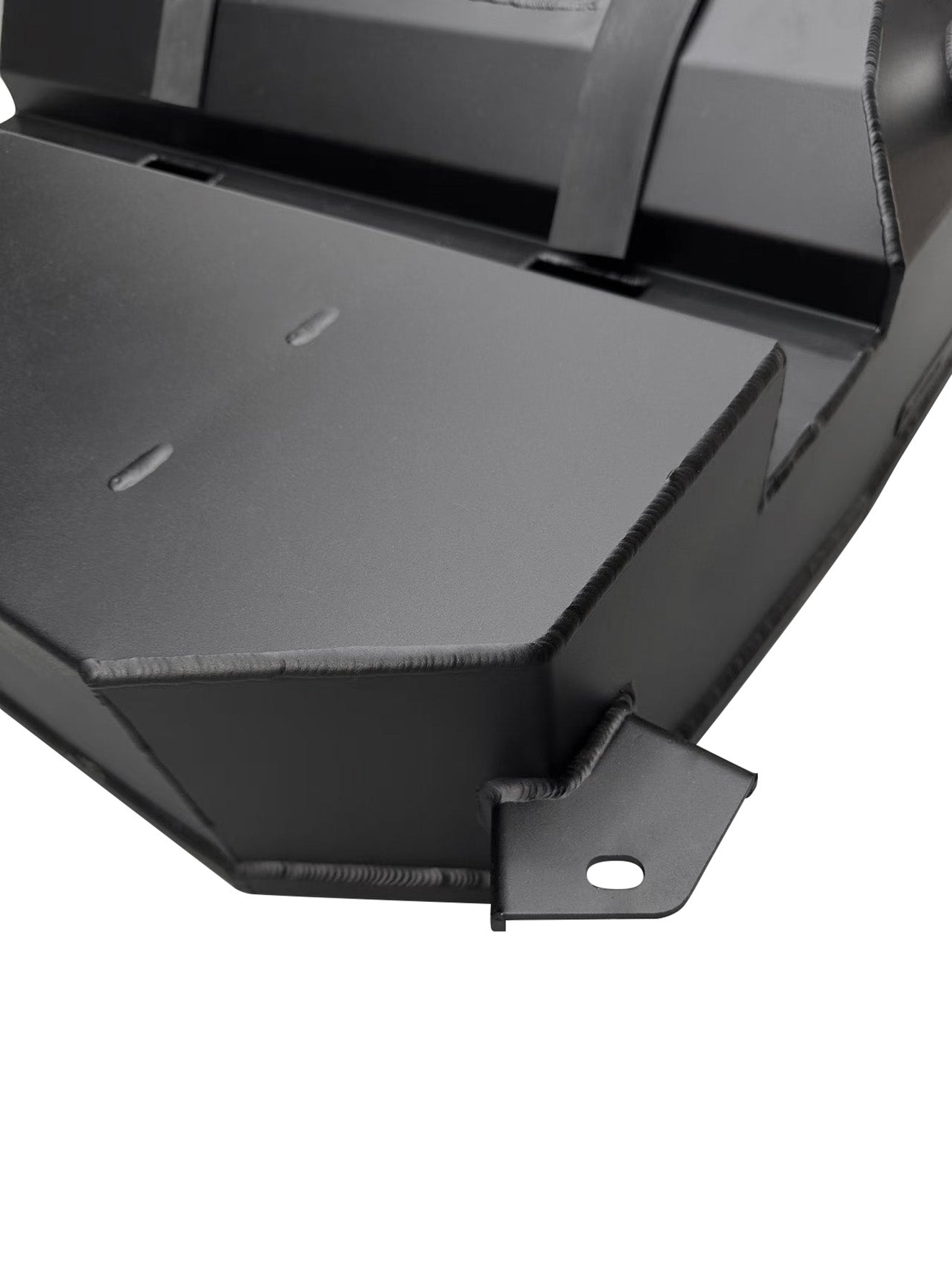

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
07
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
28KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
78KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
1 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

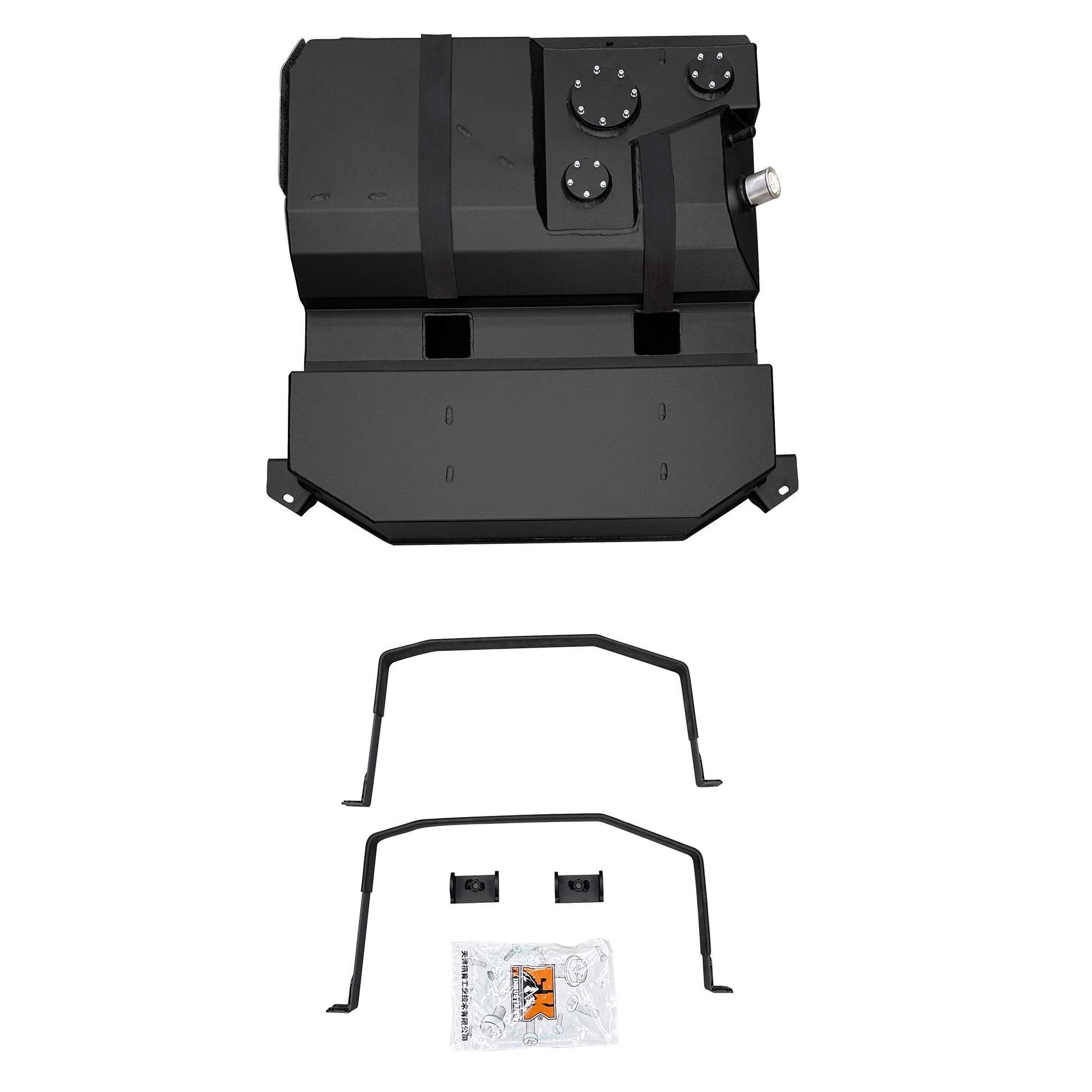

What's In The Box
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
