Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // PRIMARY FUEL SYSTEM UPGRADE
REV. 2026 / v1.1
Patrol Y63 Main Fuel Tank 138L
Direct-replacement fuel tank engineered to boost capacity while retaining OEM fitment for Y63 platforms.
TOTAL CAPACITY
138L
EST.RANGE INCREASE
200km - 280km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELPatrol Y63
YEAR2025+
ENGINE3.5L Twin-Turbo V6
FUELGasoline
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | REPLACEMENT |
| NET WEIGHT | 25.6KG |
| GROUND CLEARANCE | MINIMAL(＜10MM) |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
138L
Factory: 98L + Fuken: 40L
EST. RANGE INCREASE
200km - 280km+
Fuel System Logic
SYSTEM TYPE
Direct Replacement (OEM Integrated)
Heavy-duty high-capacity replacement tank precision-engineered for the 2025+ Nissan Patrol Y63 (3.5L Twin-Turbo V6 Gas). Custom-molded to maximize underbody fuel storage without compromising ground clearance or off-road departure angles, it expands fuel capacity from the 98L OEM tank to a massive 138L. It seamlessly integrates with Nissan’s factory fuel sender unit, primary pump, and EVAP emissions system for a 100% codes-free, overland-ready upgrade.
Gauge Behavior: The factory fuel gauge remains fully functional, scaling smoothly across the expanded 138L capacity. Due to the upgraded volume, the gauge needle will dwell longer at the "Full" position and decline more gradually than stock. When the low-fuel warning triggers, a physical reserve of approx. 20L remains in the tank. Distance to Empty (DTE) is dynamically calculated by Nissan's ECU based on real-time consumption, providing a dependable 100km - 140km+ safety margin for remote desert touring.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Strap Shield Protection System
Recessed mounting pockets allow the tank straps to sit flush within protected zones, reducing the risk of strap damage or snagging when sliding over obstacles off-road.
05
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
06
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
07

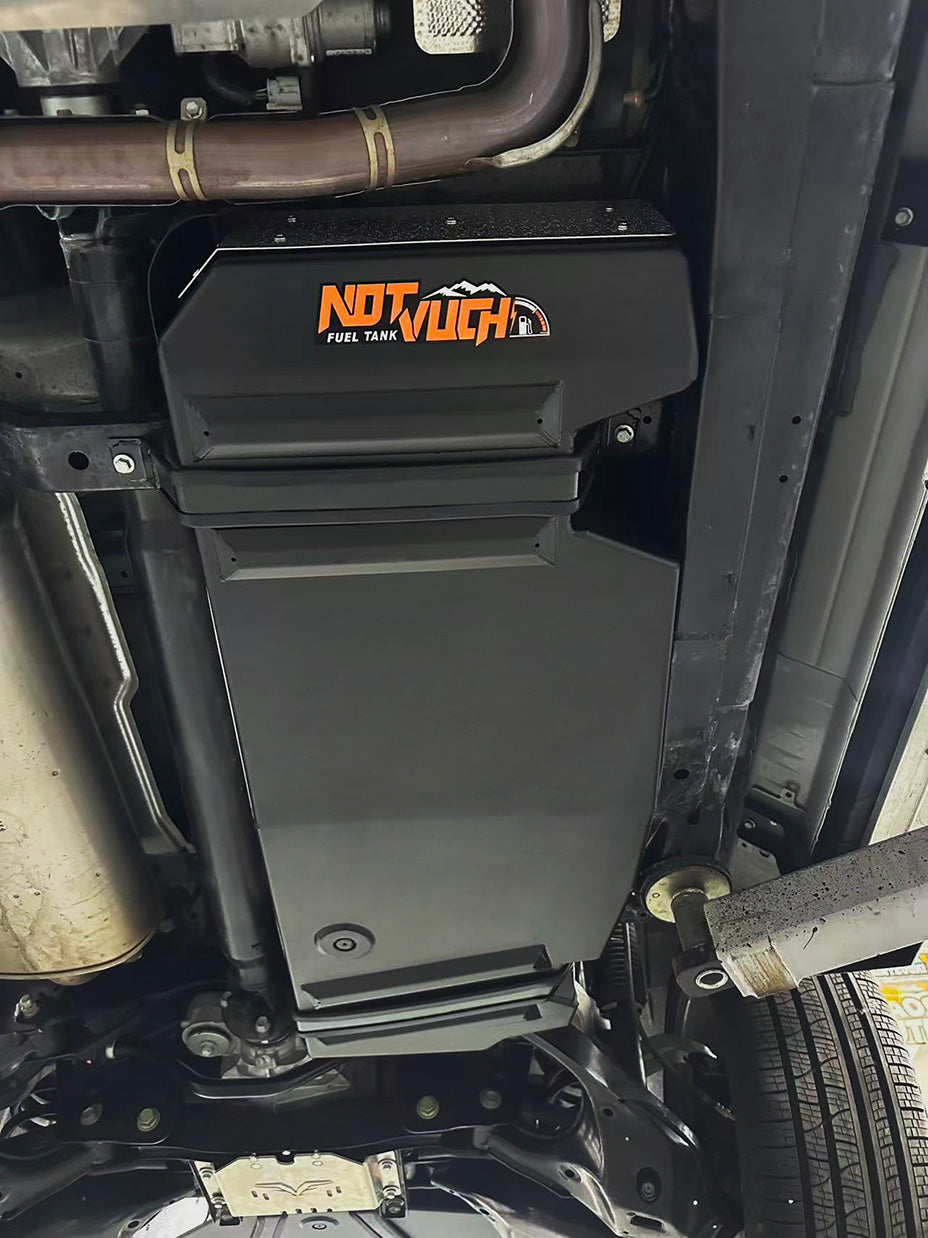

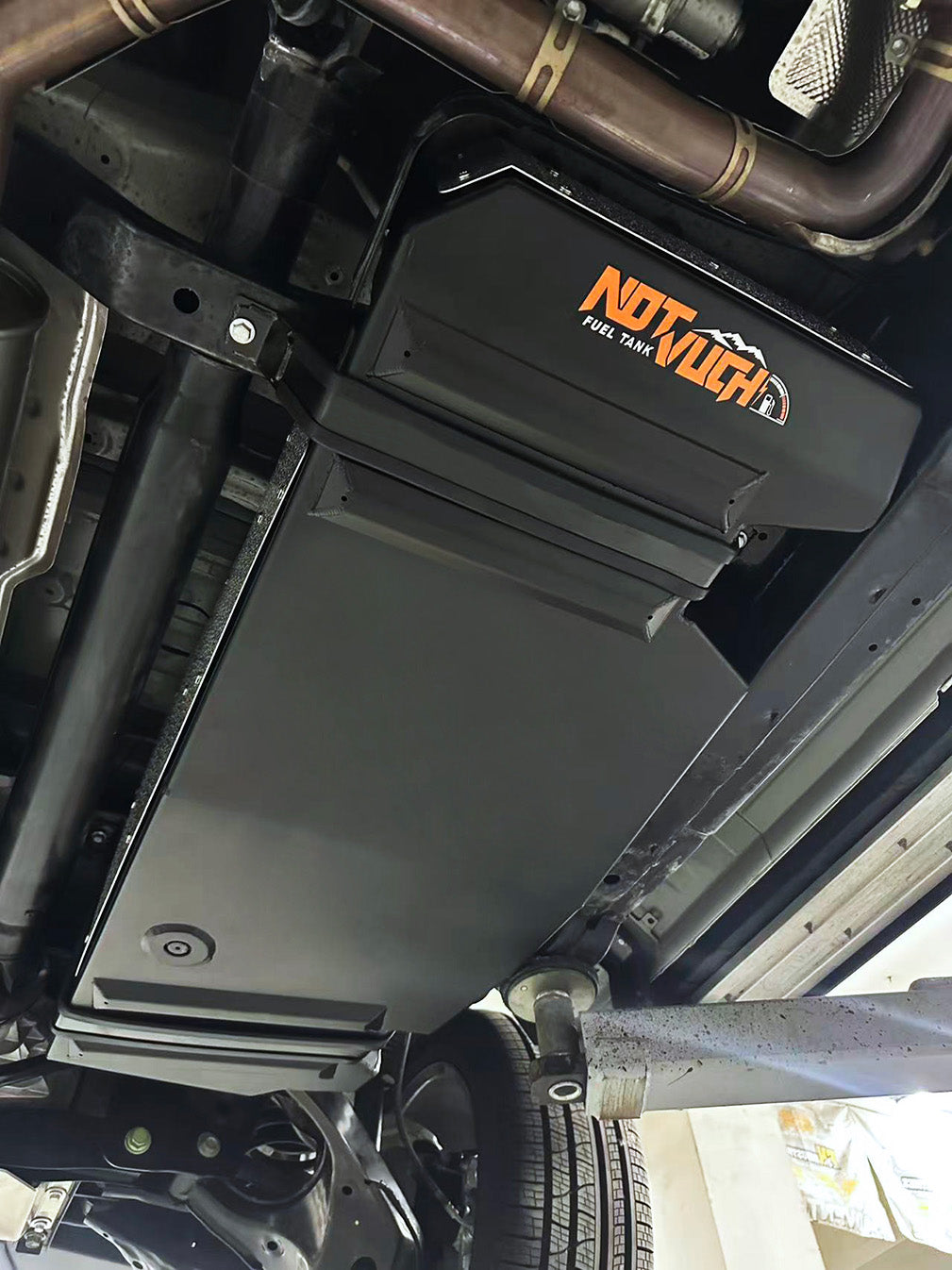

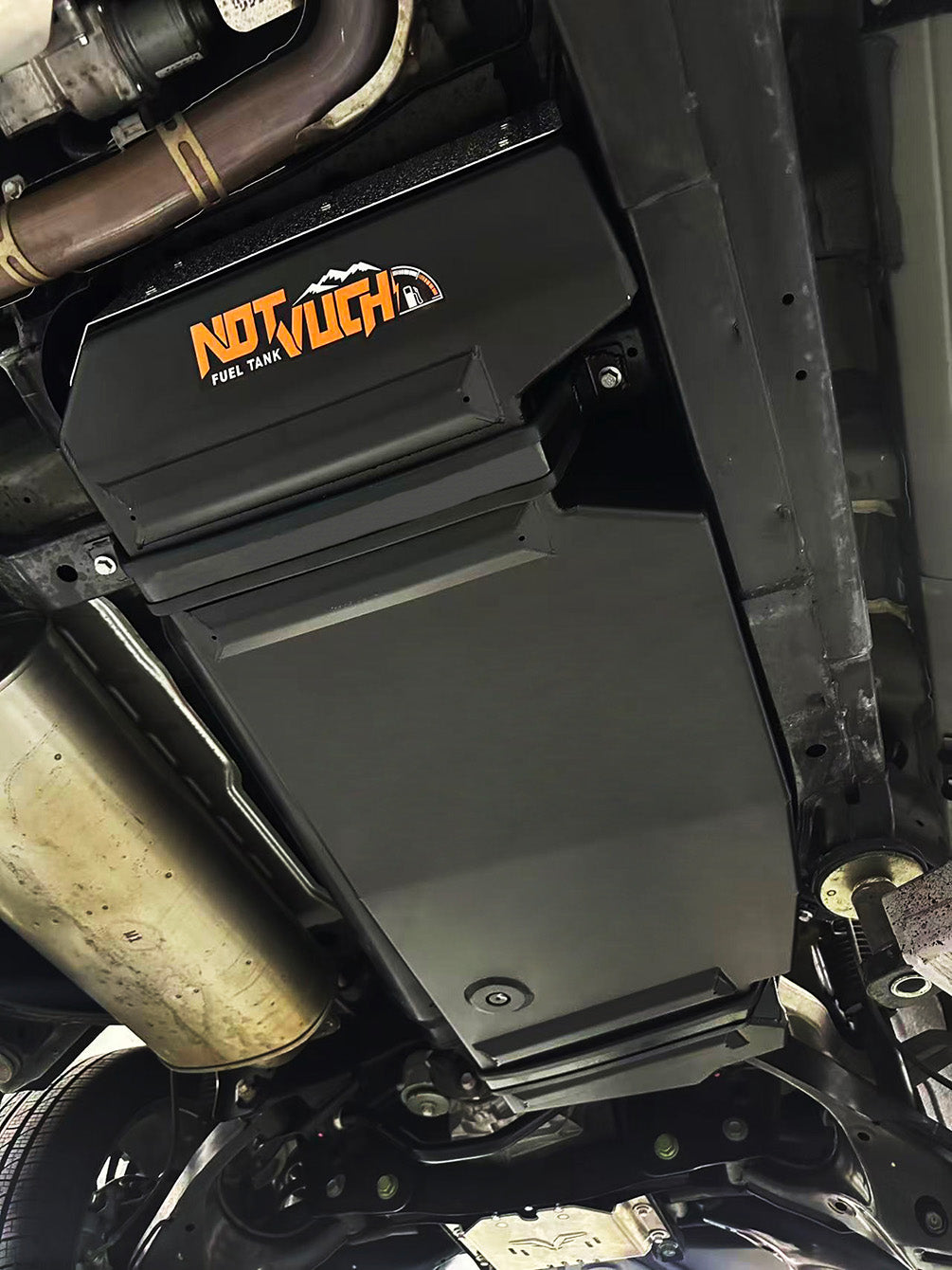

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
08
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
25.6KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
70KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
1 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

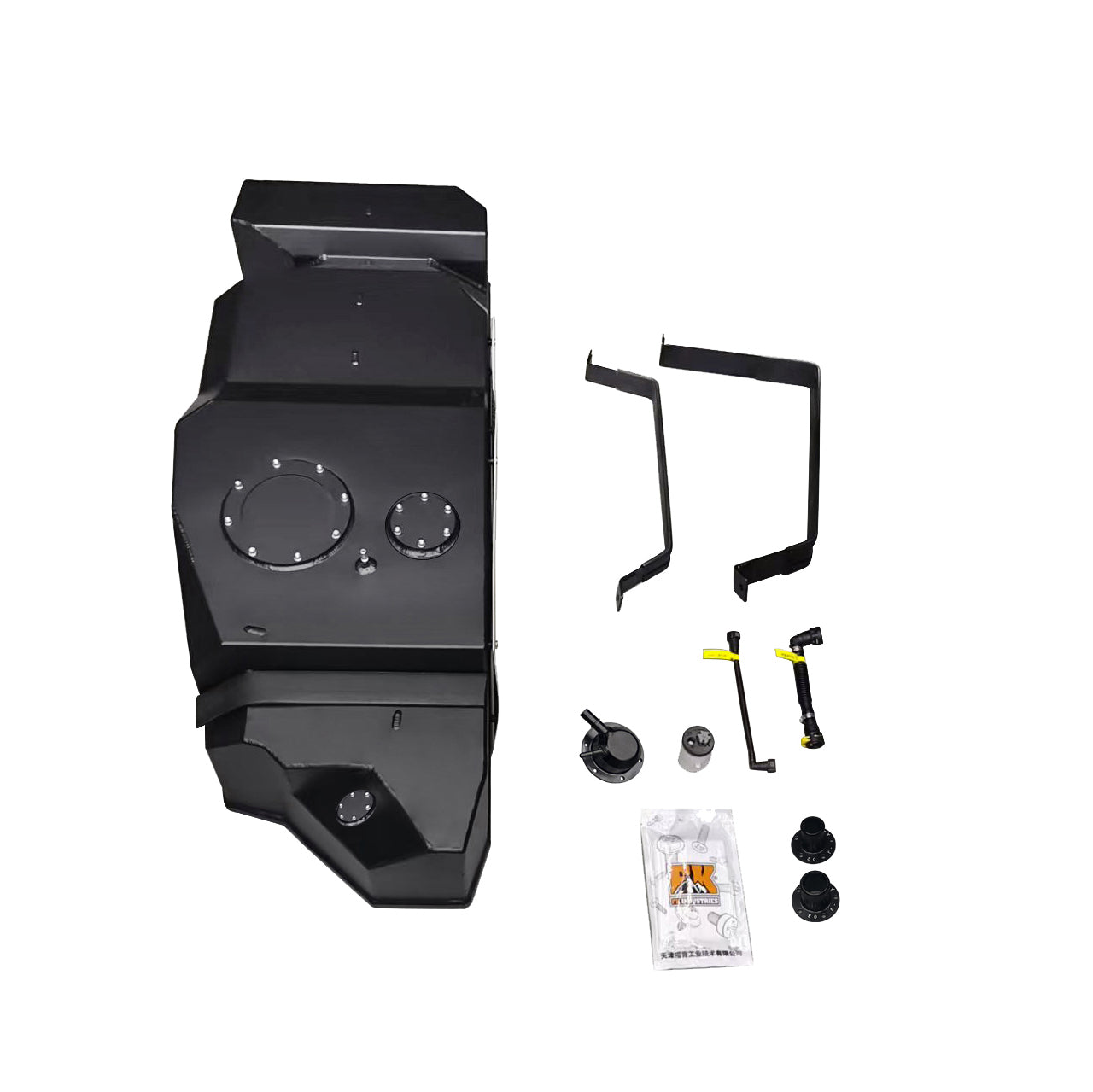

What's In The Box
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
