Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // PRIMARY FUEL SYSTEM UPGRADE
REV. 2026 / v1.1
JEEP GLADIATOR MAIN FUEL TANK 130L
Direct-replacement fuel tank engineered to boost capacity while retaining OEM fitment for Jeep Gladiator platforms.
TOTAL CAPACITY
130L
EST.RANGE INCREASE
270km - 370km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELJEEP GLADIATOR
YEAR2019+
ENGINE3.6L Pentastar V6
FUELGasoline
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | REPLACEMENT |
| NET WEIGHT | 29.1KG |
| GROUND CLEARANCE | NO LOSS-HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
130L
Factory: 83L + Fuken: 47L
EST. RANGE INCREASE
270km - 370km+
Fuel System Logic
SYSTEM TYPE
Direct Replacement (OEM Integrated)

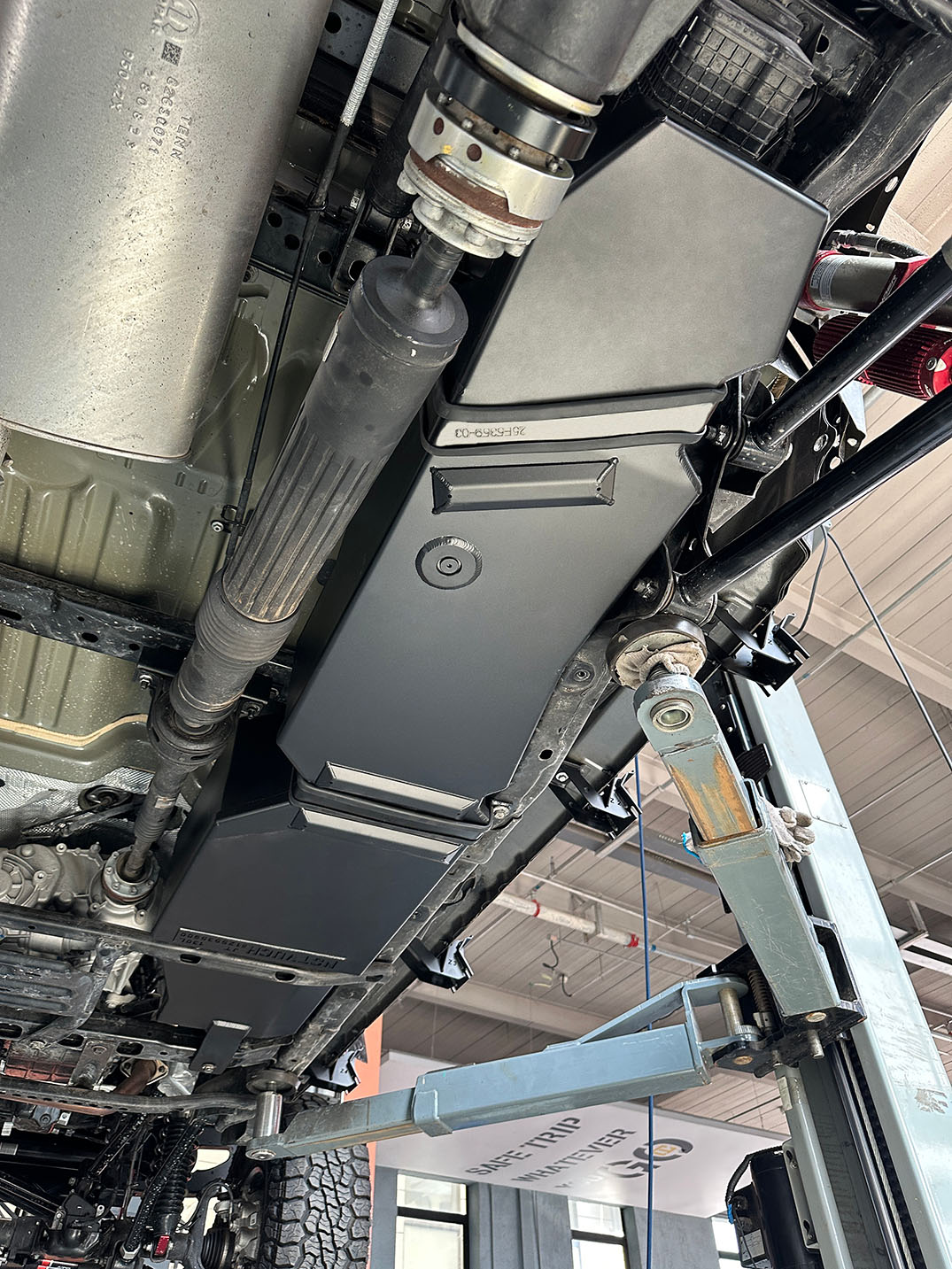

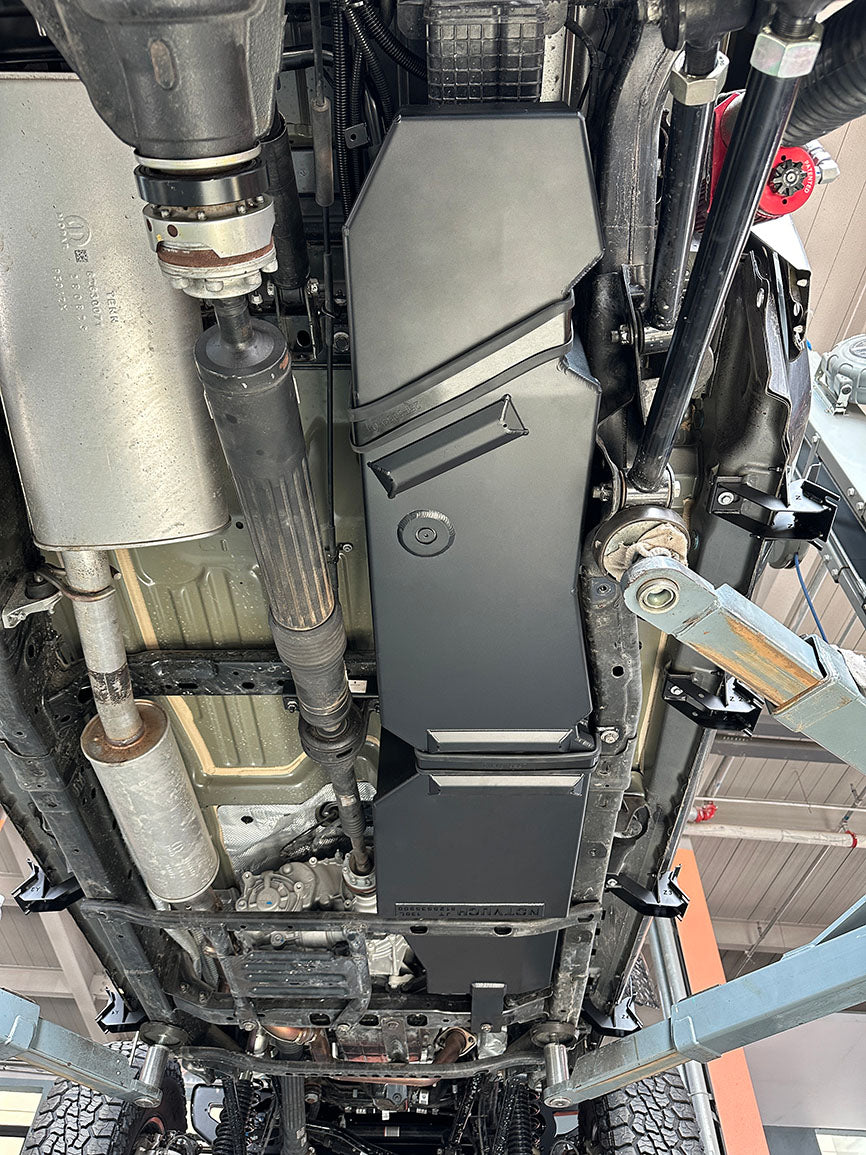

Heavy-duty high-capacity replacement main tank precision-engineered for the 2019+ Jeep Gladiator JT (3.6L Pentastar V6 Gas). Custom-molded to maximize underbody fuel storage on the JT chassis without compromising off-road ground clearance or breakover angles, it expands fuel capacity from the 83L OEM tank to a massive 130L. It seamlessly integrates with Jeep’s factory fuel sender unit, primary pump, and EVAP emissions system for a 100% codes-free, trail-ready overland upgrade.
Gauge Behavior: The OEM fuel gauge will continue to function normally using the factory fuel level sensor with no firmware update required. However, the estimated driving range / Distance to Empty (DTE) shown on the dashboard relies on Jeep's original ECU calculation logic and will not automatically recalibrate for the larger 130L capacity. While actual driving range is significantly increased (+47L / 270km-370km+), the displayed DTE may not fully reflect the additional range. When the low-fuel warning triggers, the 130L tank will hold a substantially larger usable physical fuel reserve than stock.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04

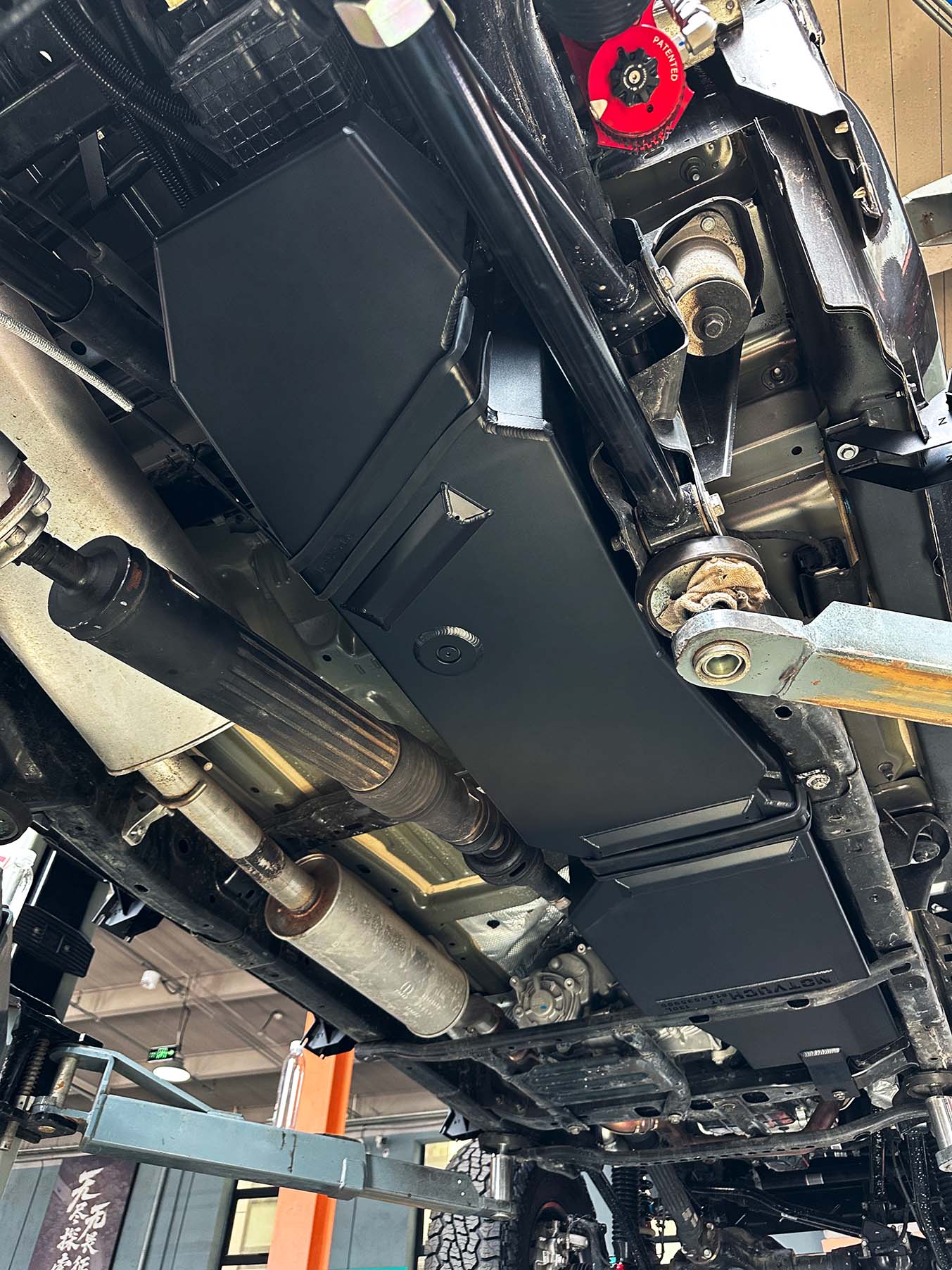

Strap Shield Protection System
Recessed mounting pockets allow the tank straps to sit flush within protected zones, reducing the risk of strap damage or snagging when sliding over obstacles off-road.
05

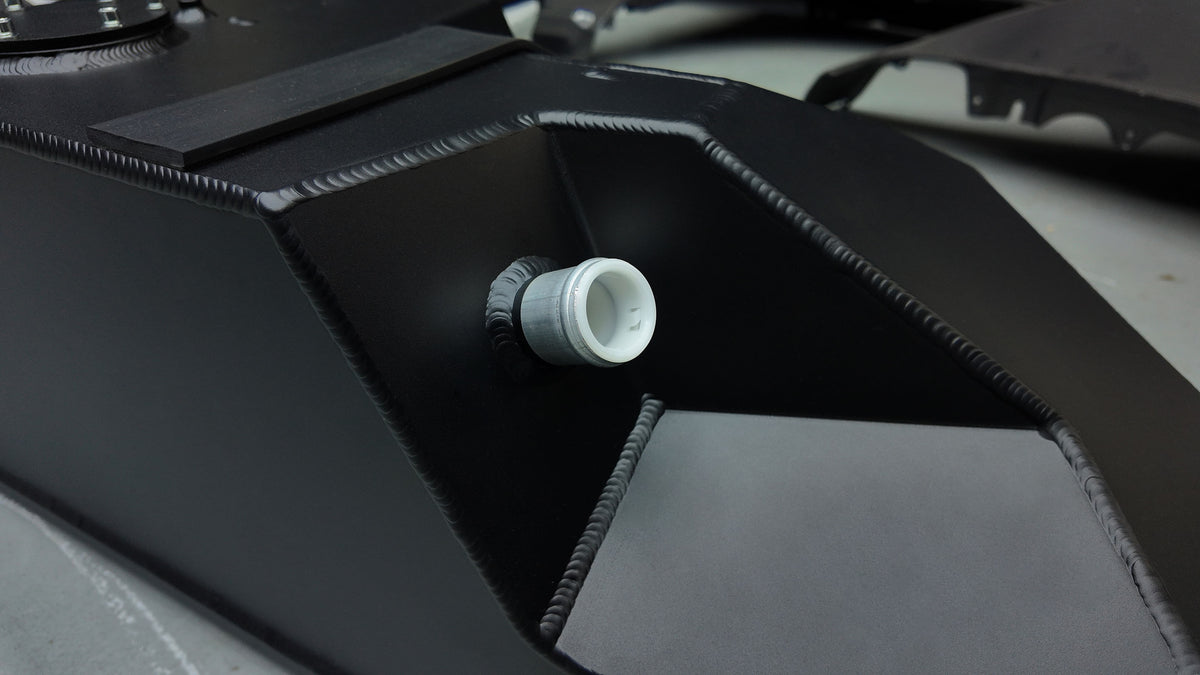

Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
06
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
07

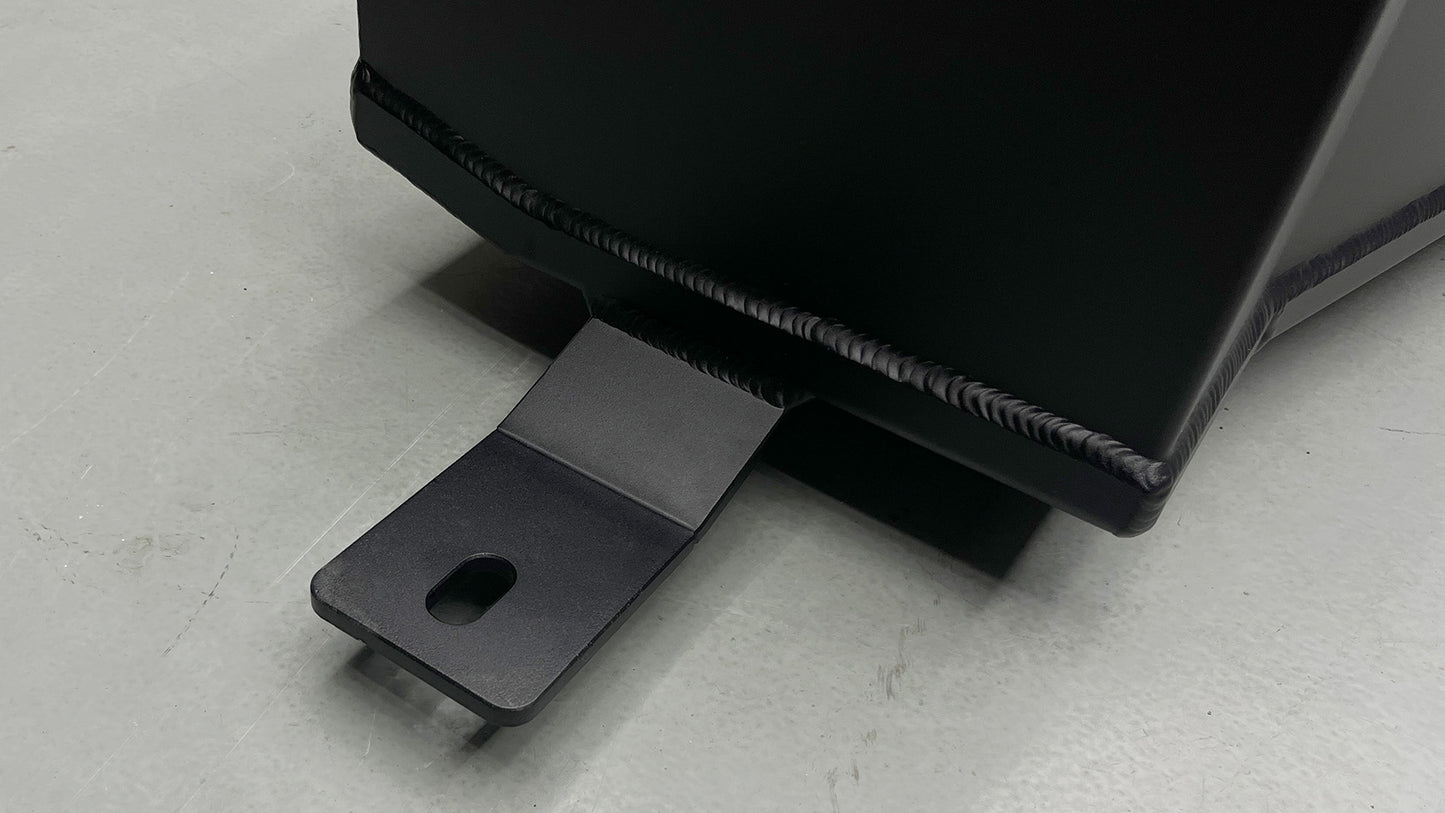

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
08

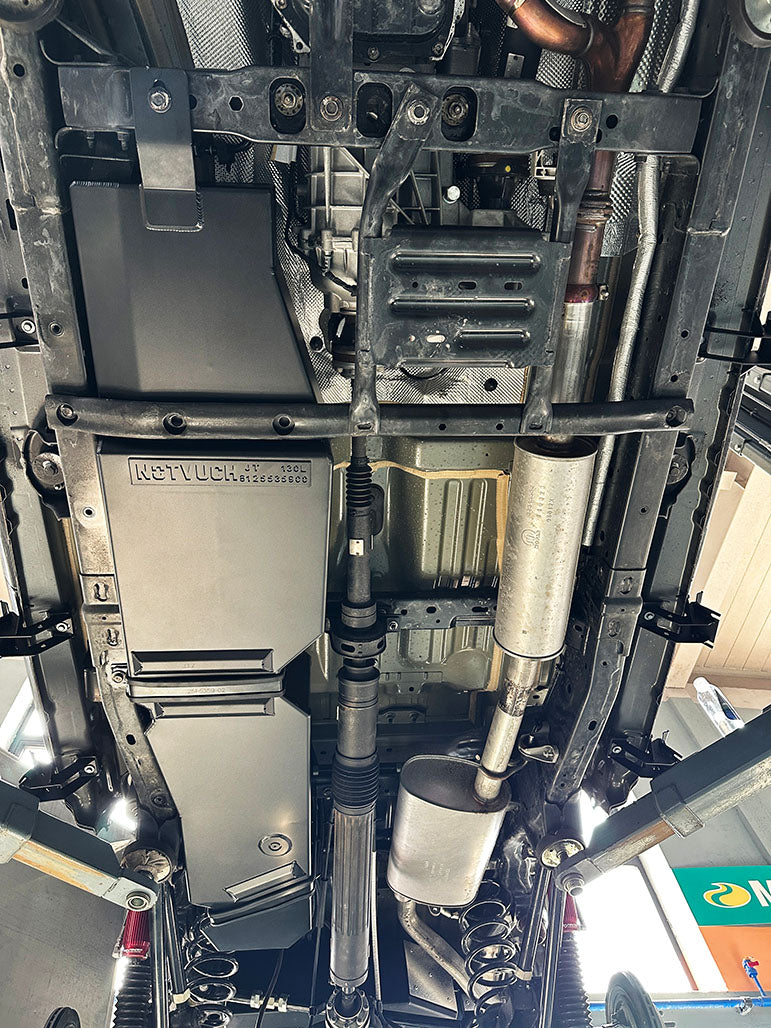

Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.

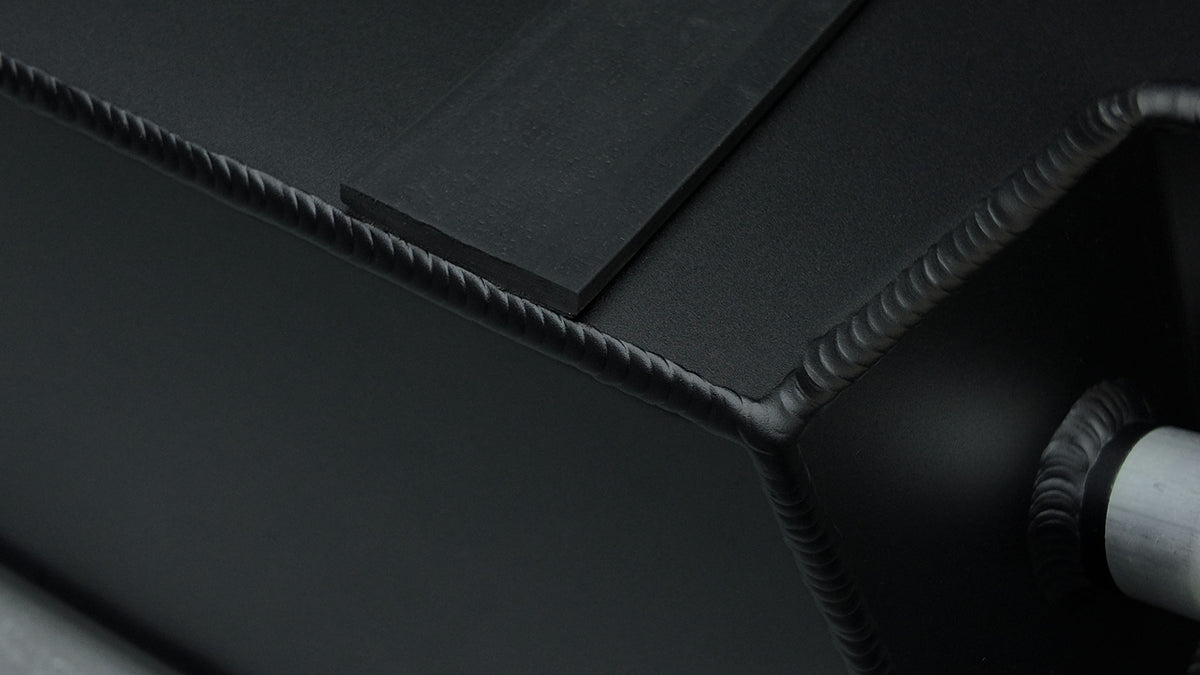

Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
29.1KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
81KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
2 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

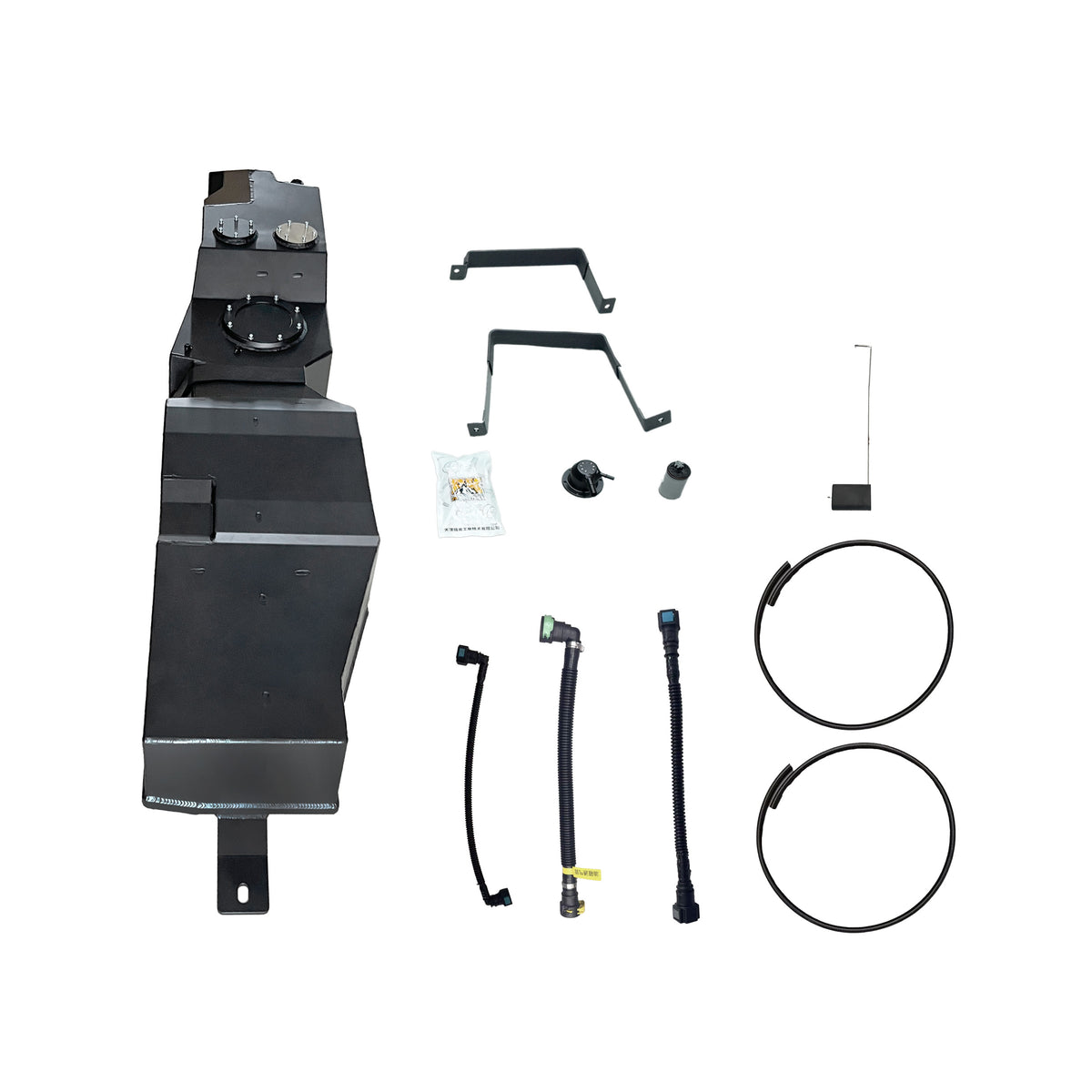

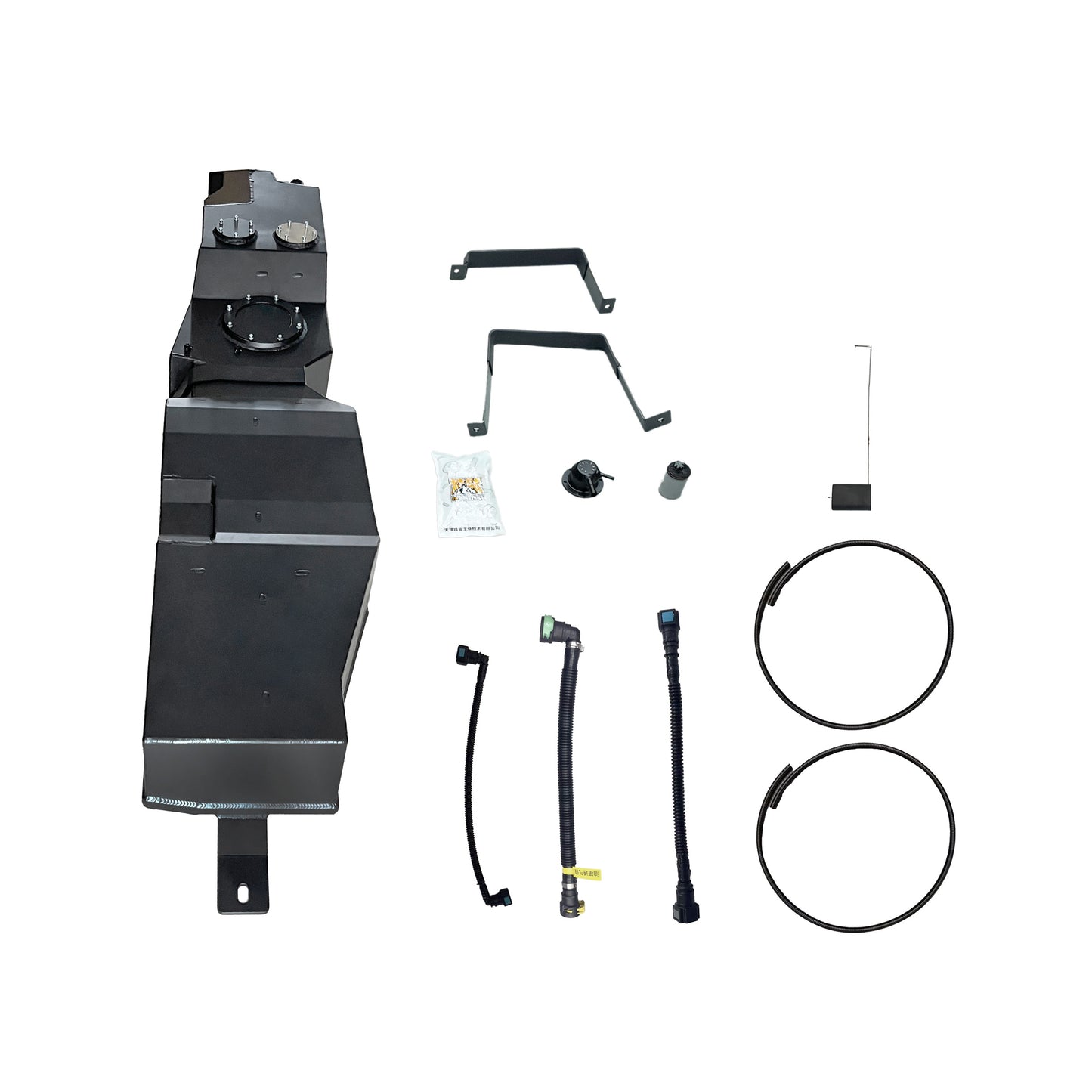

What's In The Box
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
