Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // PRIMARY FUEL SYSTEM UPGRADE
REV. 2026 / v1.1
LAND CRUISER 300 MAIN FUEK TANK 110L
Direct-replacement fuel tank engineered to boost capacity while retaining OEM fitment for Land Cruiser 300 platforms.
TOTAL CAPACITY
140L
EST.RANGE INCREASE
190km - 230km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELLAND CRUISER 300
YEAR2022+
ENGINE3.5L Twin-Turbo V6 / 4.0L V6
FUELGasoline
ENGINEERING NOTE: Dual Tank Models Only
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | REPLACEMENT |
| NET WEIGHT | 24KG |
| GROUND CLEARANCE | NO LOSS - HIGH CLEARANCE |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
140L
Factory: 110L + Fuken: 30L
EST. RANGE INCREASE
190km - 230km+
Fuel System Logic
SYSTEM TYPE
Direct Replacement (OEM Integrated)

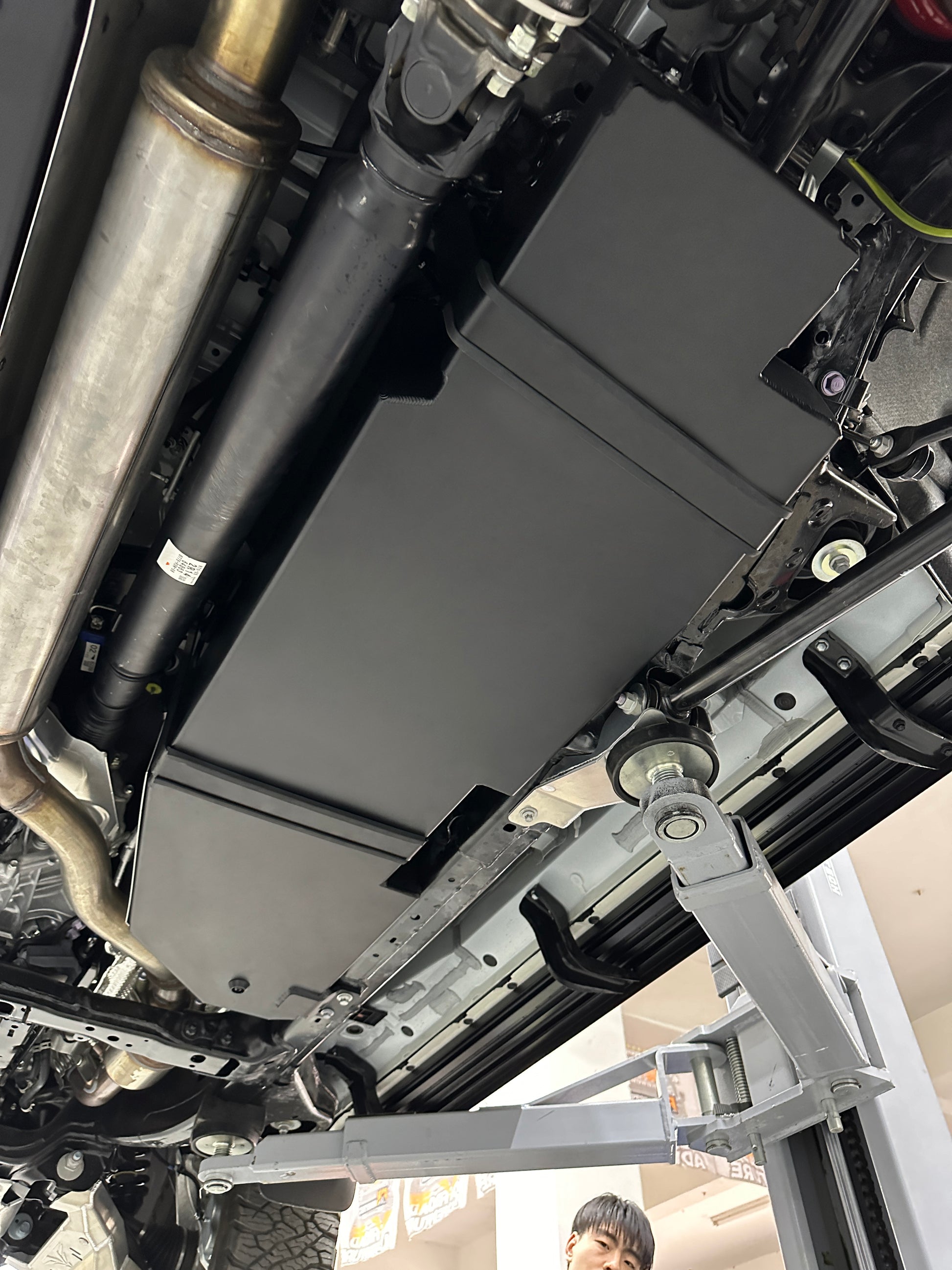

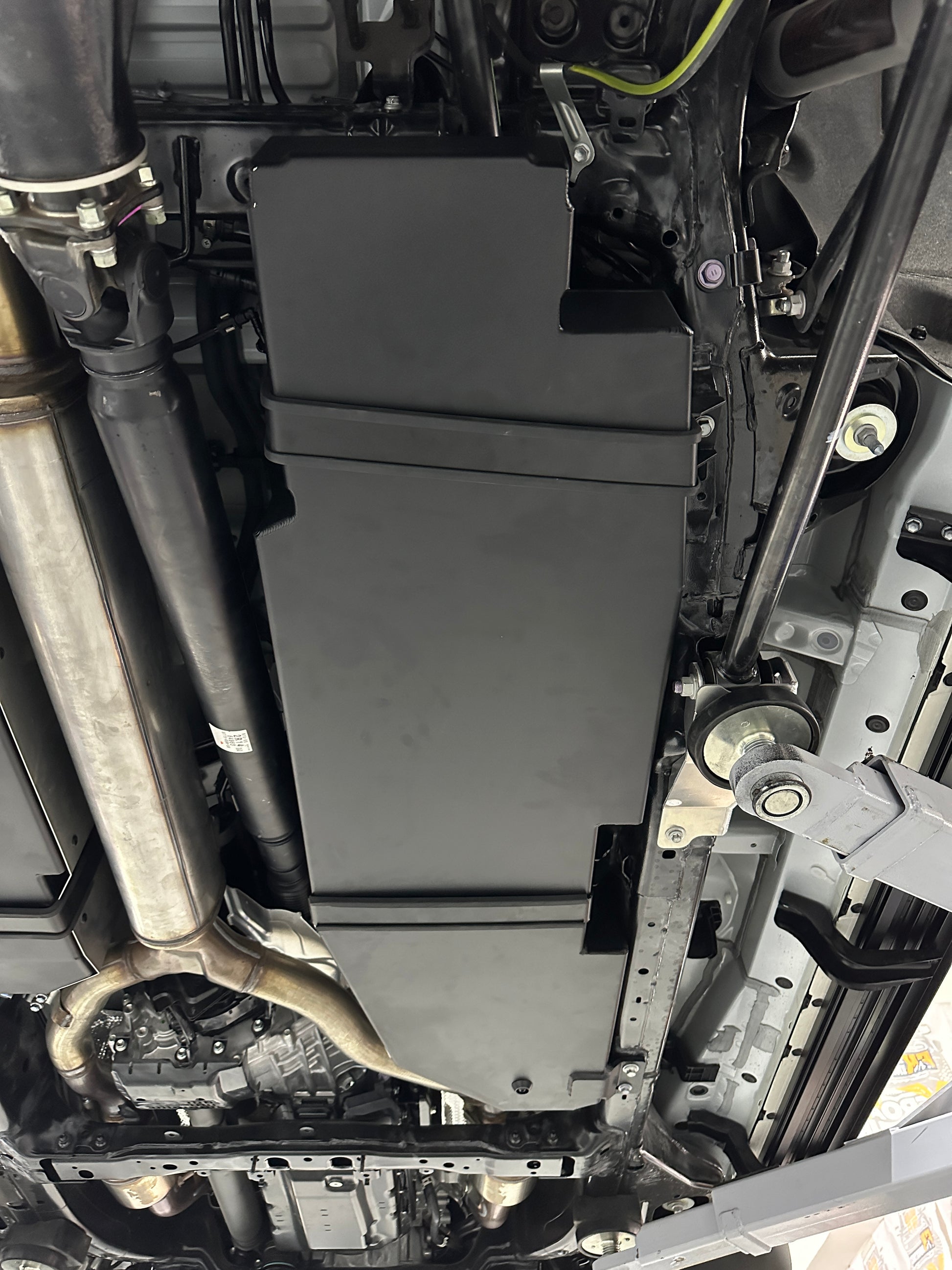

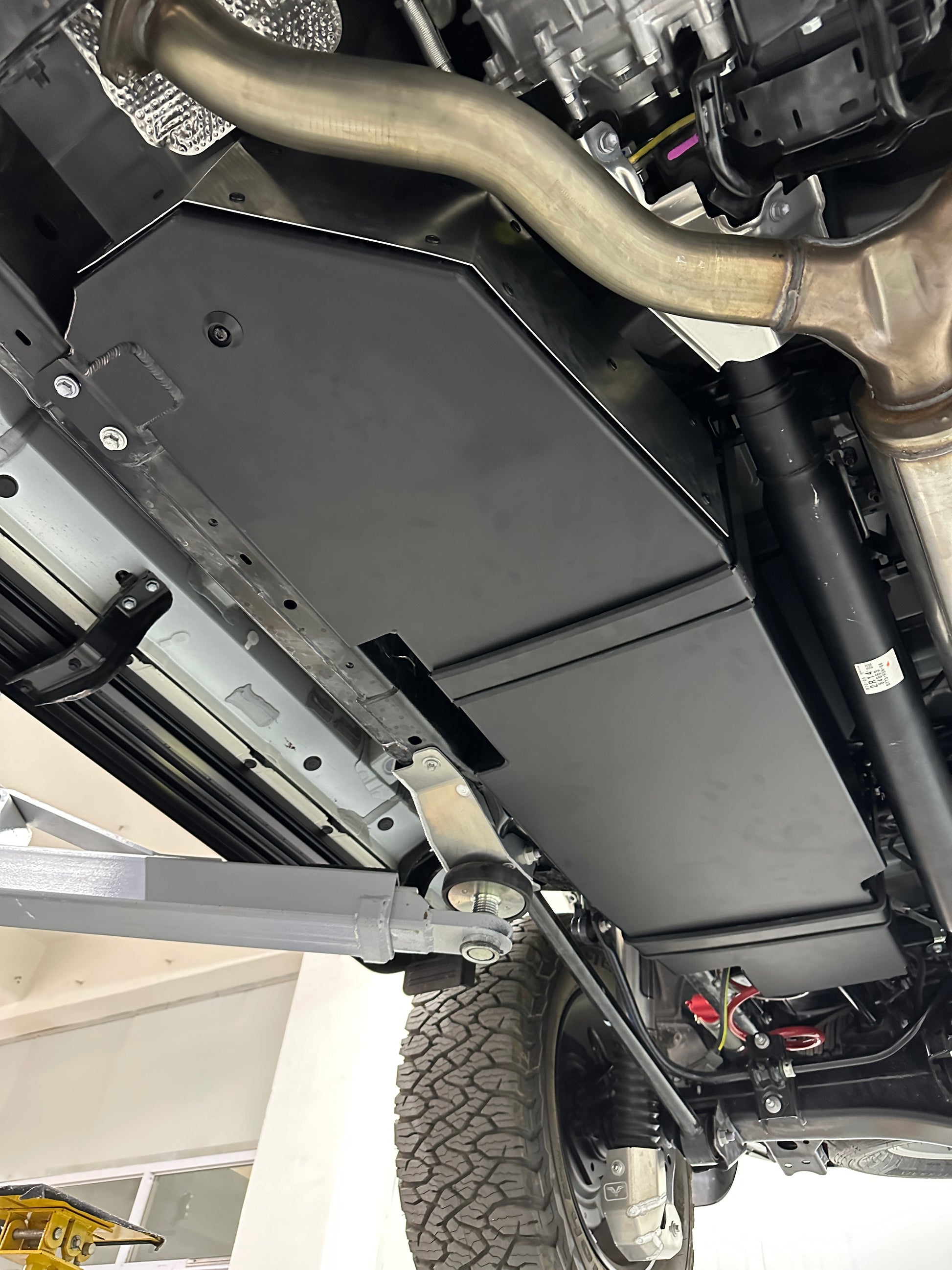

Premium high-capacity primary tank upgrade for 2022+ Toyota Land Cruiser 300 (3.5TT / 4.0L Gas) equipped with factory dual fuel tanks. Precision-engineered to replace the 80L factory main tank with an upgraded 110L capacity, expanding total onboard fuel to 140L when paired with the OEM 30L sub-tank. It integrates seamlessly with Toyota’s factory dual-tank transfer management, sensors, and EVAP systems, delivering a 100% codes-free, OEM-level long-range touring solution.
Gauge Behavior: The factory dual-tank gauge and transfer system remain 100% functional. The upgraded 110L primary tank causes the main fuel section to decline more gradually than the OEM setup. When the low-fuel warning triggers on the main tank, a physical reserve of approx. 17L remains. Distance to Empty (DTE) is dynamically calculated by Toyota’s ECU based on real-time consumption across both tanks, providing a reliable 120km - 140km+ safety buffer once the warning activates.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Strap Shield Protection System
Recessed mounting pockets allow the tank straps to sit flush within protected zones, reducing the risk of strap damage or snagging when sliding over obstacles off-road.
05
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
06
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
07
Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
08
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
24KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
67KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
2 HOURS
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

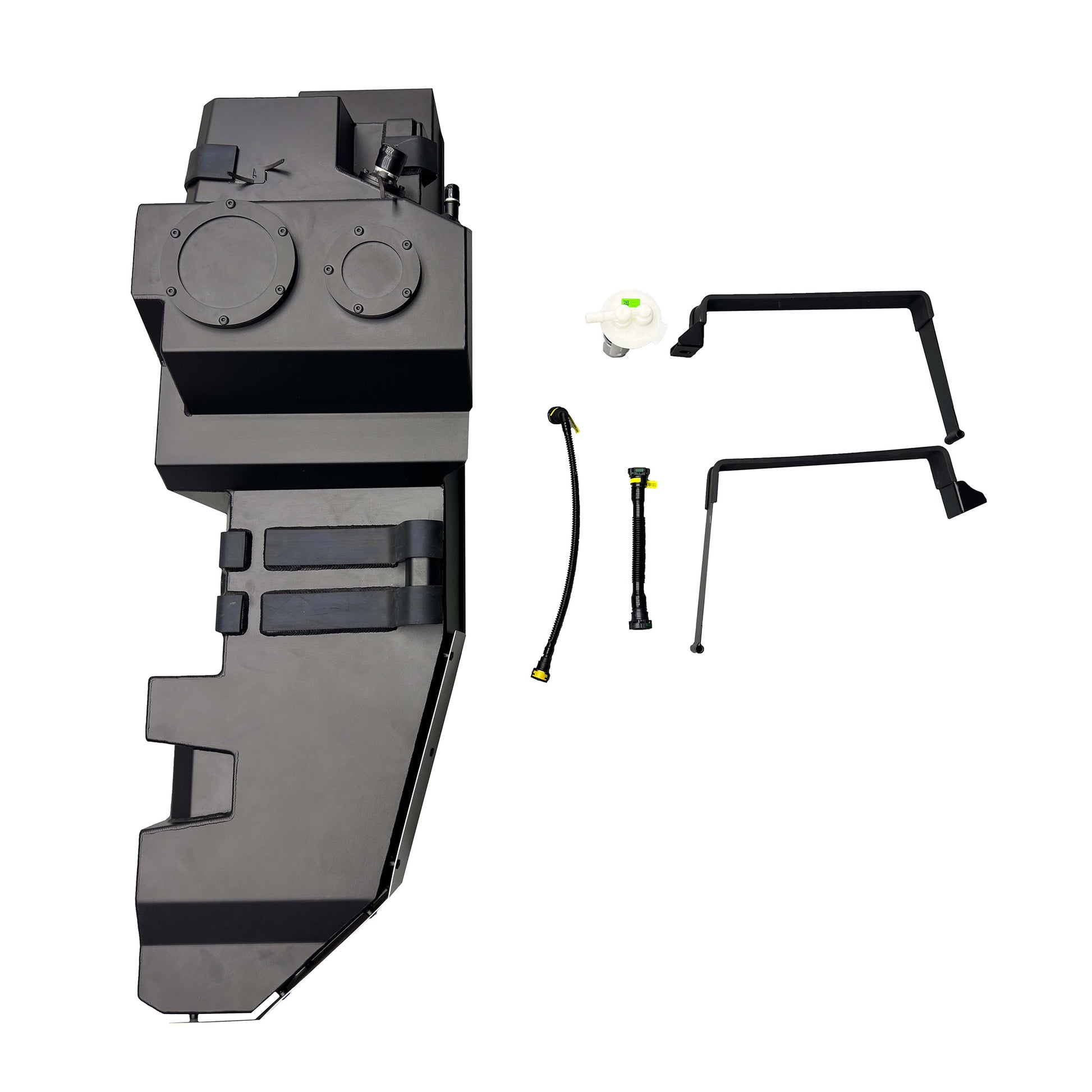

What's In The Box
110L Main Tank: Direct replacement for the factory unit.
Mounting Hardware: Fully factory-compatible brackets and bolts.
No Complexity: No additional control modules or switches.
Mounting Hardware: Fully factory-compatible brackets and bolts.
No Complexity: No additional control modules or switches.
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
