Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // AUXILIARY FUEL SYSTEM
REV. 2026 / v1.1
BRONCO AUXILIARY FUEL TANK 63L
Auxiliary fuel tank system designed to extend driving range using an OEM-style siphon transfer mechanism, maintaining seamless integration with the factory fuel system.
TOTAL CAPACITY
143L
EST.RANGE INCREASE
480km - 570km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELBronco
YEAR2022+
ENGINE2.3T/2.7T
FUELGasoline
ENGINEERING NOTE: Only fits 4-door models.
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | Chassis Side Mount |
| NET WEIGHT | 24.5KG |
| GROUND CLEARANCE | MINIMAL (<10MM) |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
143L
Factory: 80L + Fuken: 63L
EST. RANGE INCREASE
480km - 570km+
Fuel System Logic
SYSTEM TYPE
Auxiliary Siphon Transfer
Full-automatic siphon system. Fuel is seamlessly transferred from the auxiliary tank to the main tank via the factory venturi effect, requiring no manual switches or auxiliary pumps.
Gauge Behavior: The factory gauge reflects the combined capacity. Initial gauge segments represent auxiliary fuel; once consumed, the gauge tracks the remaining factory tank. Your Range (DTE) may stabilize or temporarily increase during transfer as the system replenishes the main tank.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03
Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Strap Shield Protection System
Recessed mounting pockets allow the tank straps to sit flush within protected zones, reducing the risk of strap damage or snagging when sliding over obstacles off-road.
05
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
06
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
07
Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
08
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
24.5KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
67KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
4-5 Hours
DIFFICULTY
Bolt-on with Pump Integration
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
REQUIRED

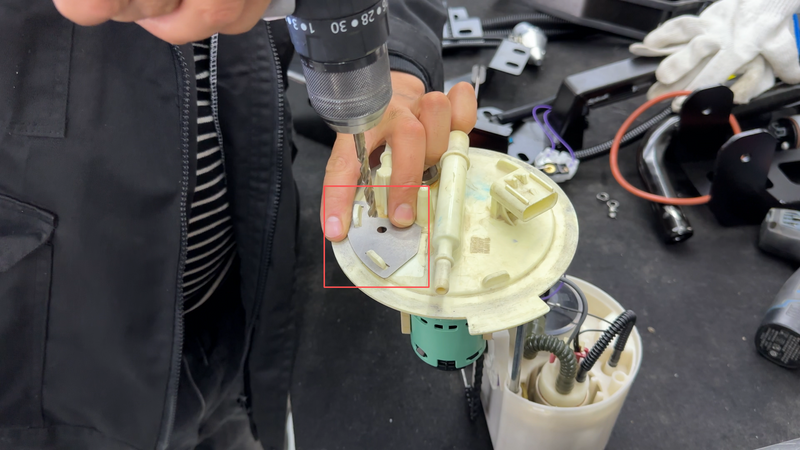

FIG. 01 // TECHNICAL SCHEMATIC

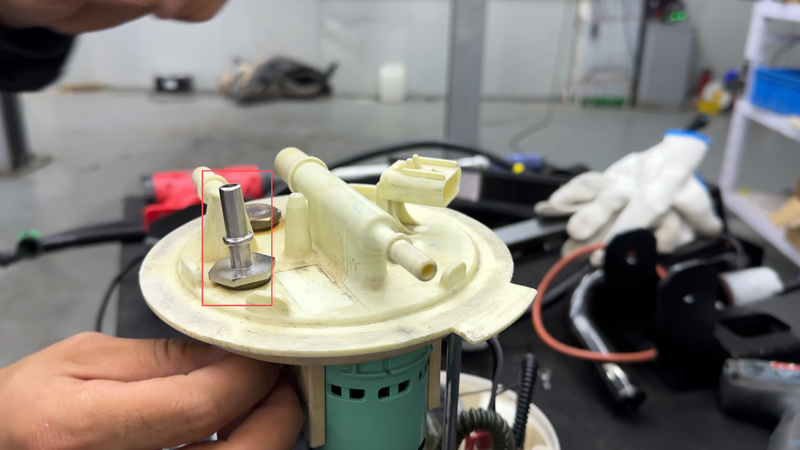

FIG. 02 // TECHNICAL SCHEMATIC
Fuel Pump Integration
To enable proper integration of the auxiliary fuel tank, a dedicated siphon valve is installed onto the factory fuel pump assembly.
This process involves a localized modification to the OEM fuel pump housing to accommodate the siphon interface, followed by installation of a precision-machined aluminum siphon valve.
The modification is limited to the fuel pump assembly only. No vehicle chassis, body structure, or electrical systems are altered. Once installed, the factory fuel pump retains its original sealing, operation, and reliability characteristics.
This process involves a localized modification to the OEM fuel pump housing to accommodate the siphon interface, followed by installation of a precision-machined aluminum siphon valve.
The modification is limited to the fuel pump assembly only. No vehicle chassis, body structure, or electrical systems are altered. Once installed, the factory fuel pump retains its original sealing, operation, and reliability characteristics.

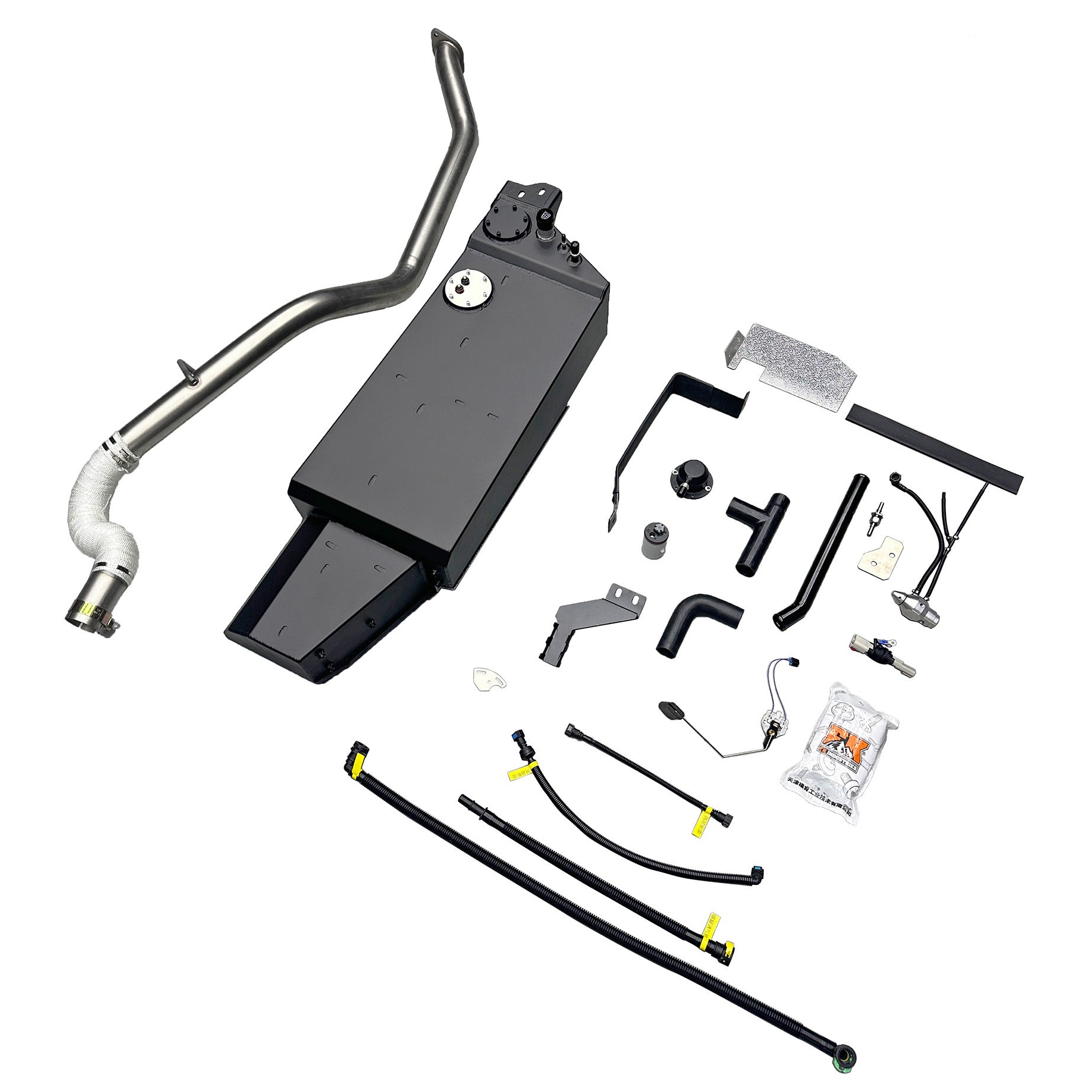

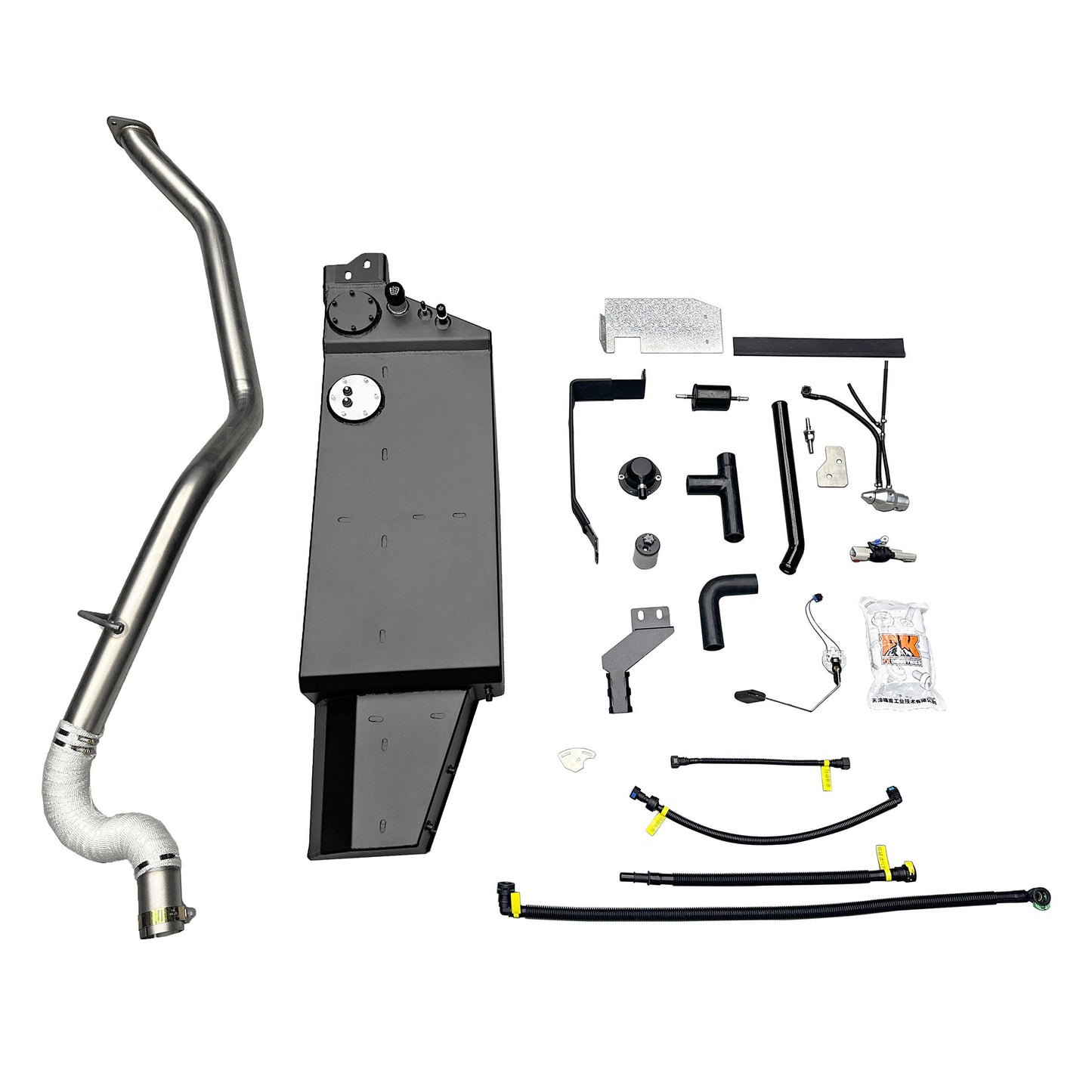

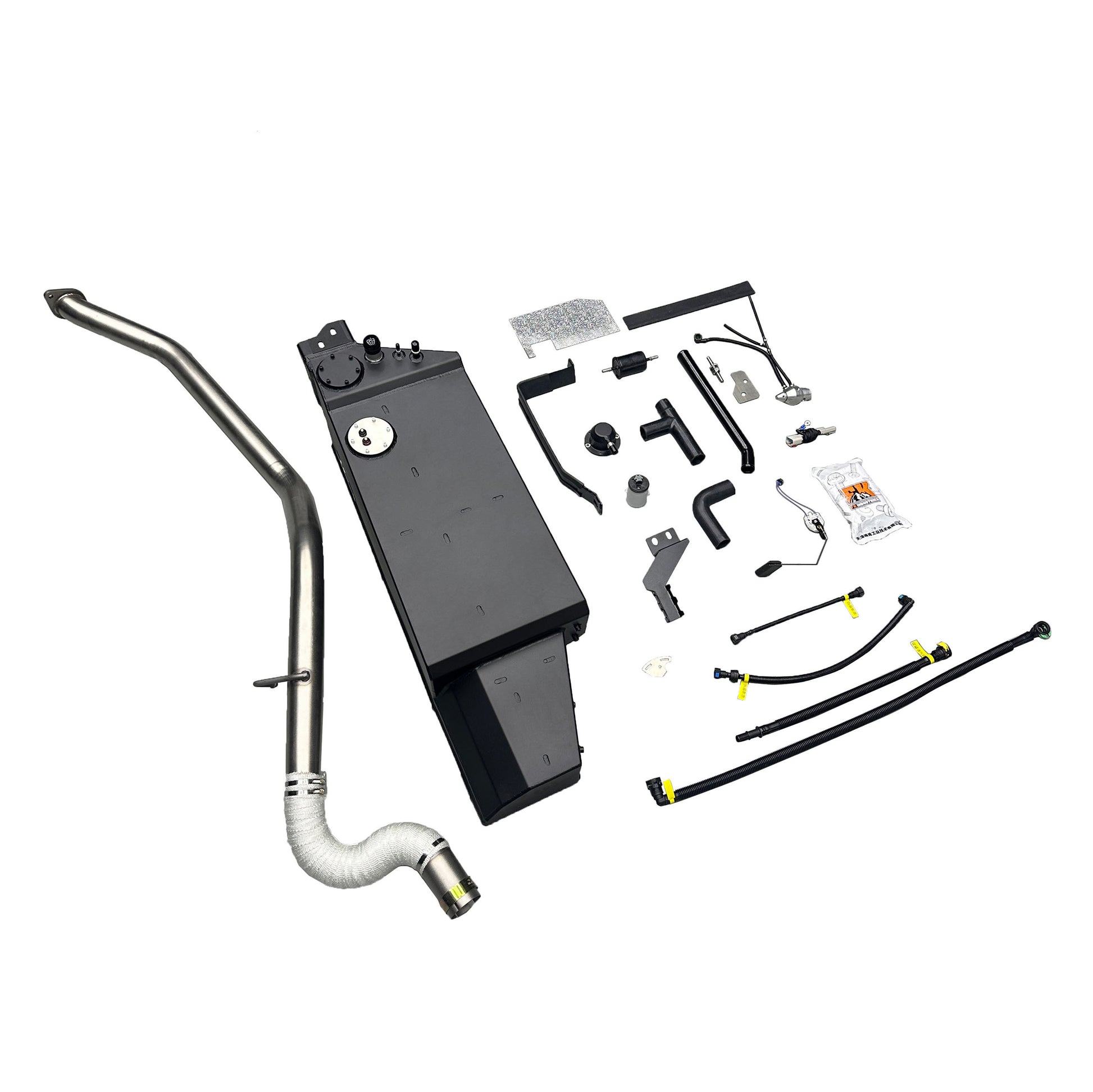

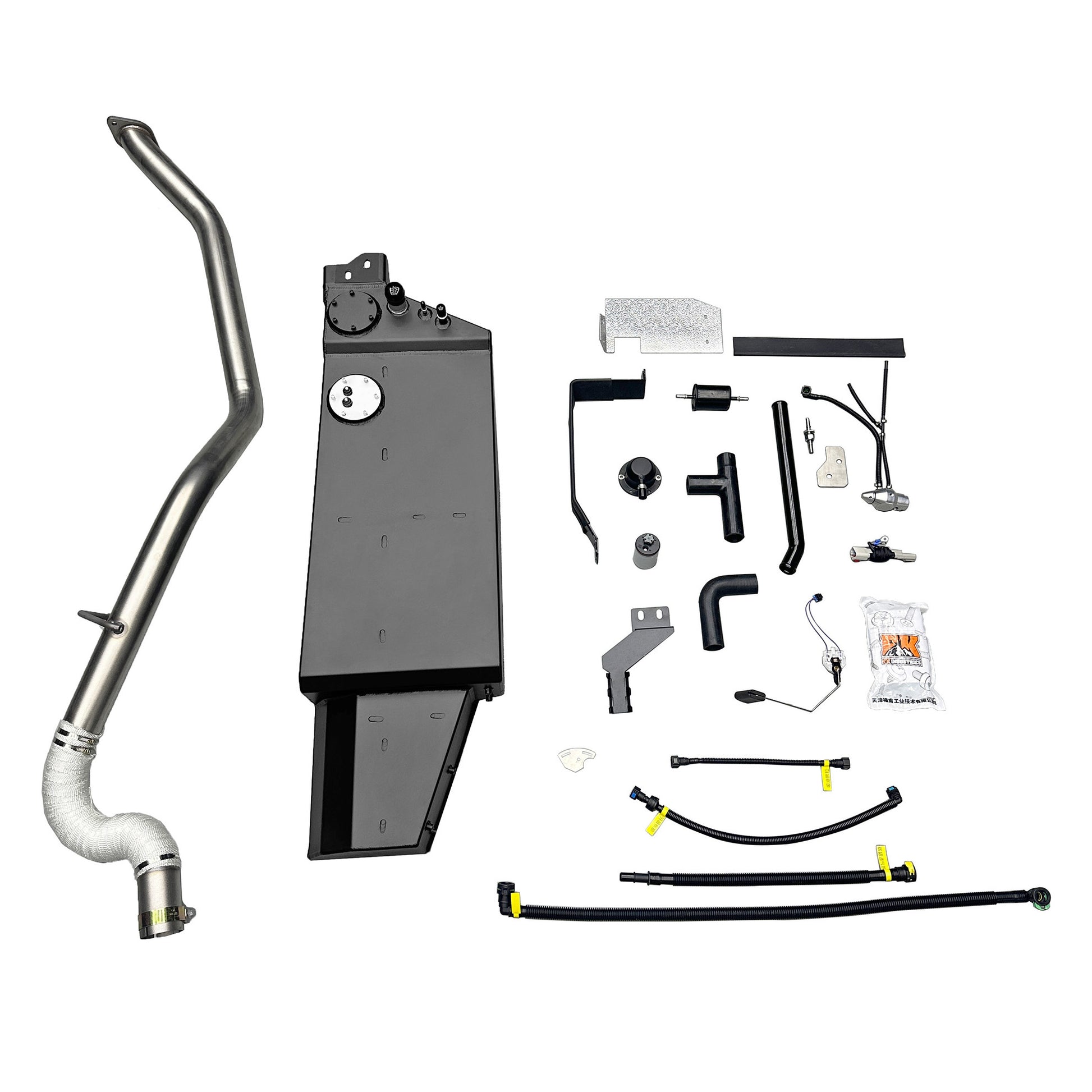

What's In The Box
63L Auxiliary Fuel Tank: Chassis-mounted, Bronco-specific.
Dedicated Exhaust Section: Pre-engineered clearance and heat management.
Heat Shielding Components: Protects fuel system from exhaust temperature.
Mounting Hardware: Straps, brackets, and fasteners.
OEM-Grade Fuel Lines & Fittings
Dedicated Exhaust Section: Pre-engineered clearance and heat management.
Heat Shielding Components: Protects fuel system from exhaust temperature.
Mounting Hardware: Straps, brackets, and fasteners.
OEM-Grade Fuel Lines & Fittings
