Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // AUXILIARY FUEL SYSTEM
REV. 2026 / v1.1
BRONCO RAPTOR AUXILIARY FUEL TANK 60L
60L auxiliary fuel system utilizing a passive siphon transfer design to automatically feed fuel into the main tank, extending range without additional controls or system complexity.
TOTAL CAPACITY
140L
EST.RANGE INCREASE
330km - 400km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELBronco Raptor
YEAR2022+
ENGINE3.0TT
FUELGasoline
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|

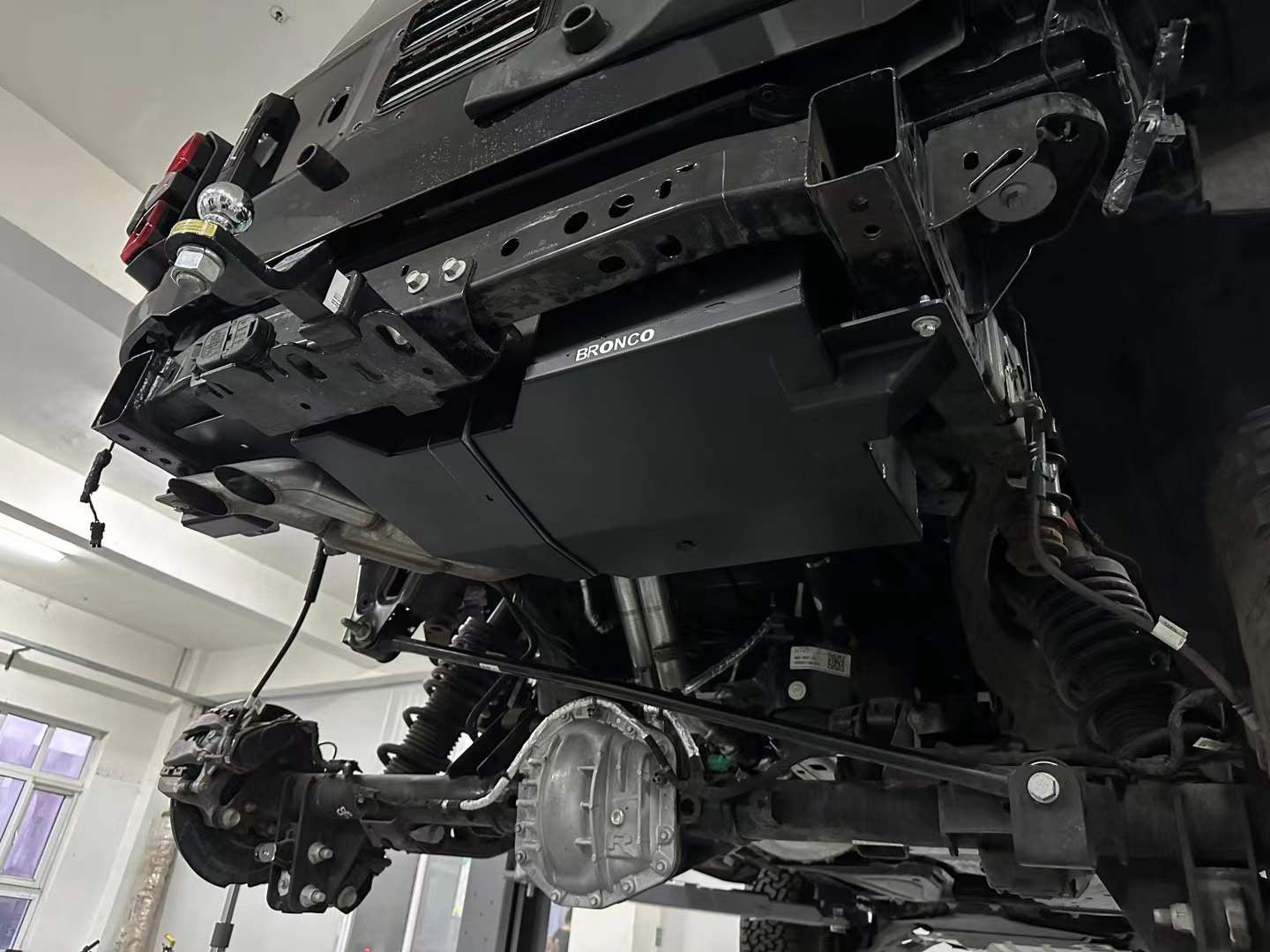

| MOUNT POSITION | Rear Chassis (Underbody) |
| NET WEIGHT | 16.9KG |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
140L
Factory: 80L + Fuken: 60L
EST. RANGE INCREASE
330km - 400km+
Fuel System Logic
SYSTEM TYPE
Auxiliary Siphon Transfer
Automatic siphon system that utilizes the factory venturi effect to transfer fuel. Operates seamlessly without the need for manual switches or additional pumps.
Gauge Behavior: The factory gauge reflects the combined capacity. Initial gauge segments represent auxiliary fuel; once consumed, the gauge tracks the remaining factory tank. Range (DTE) may stabilize or increase during transfer as the system replenishes the main tank.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03

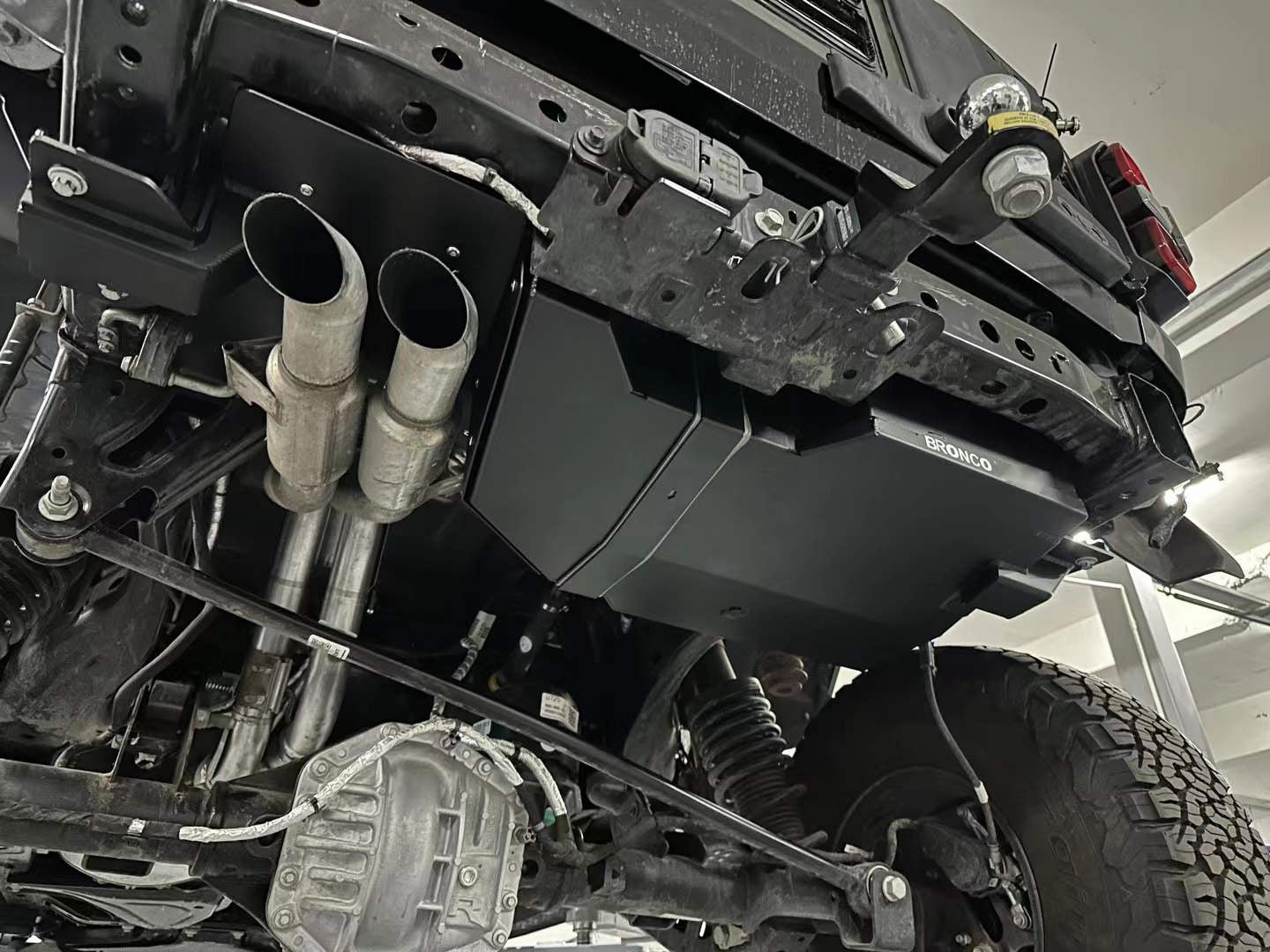

Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04
Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
05
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
06

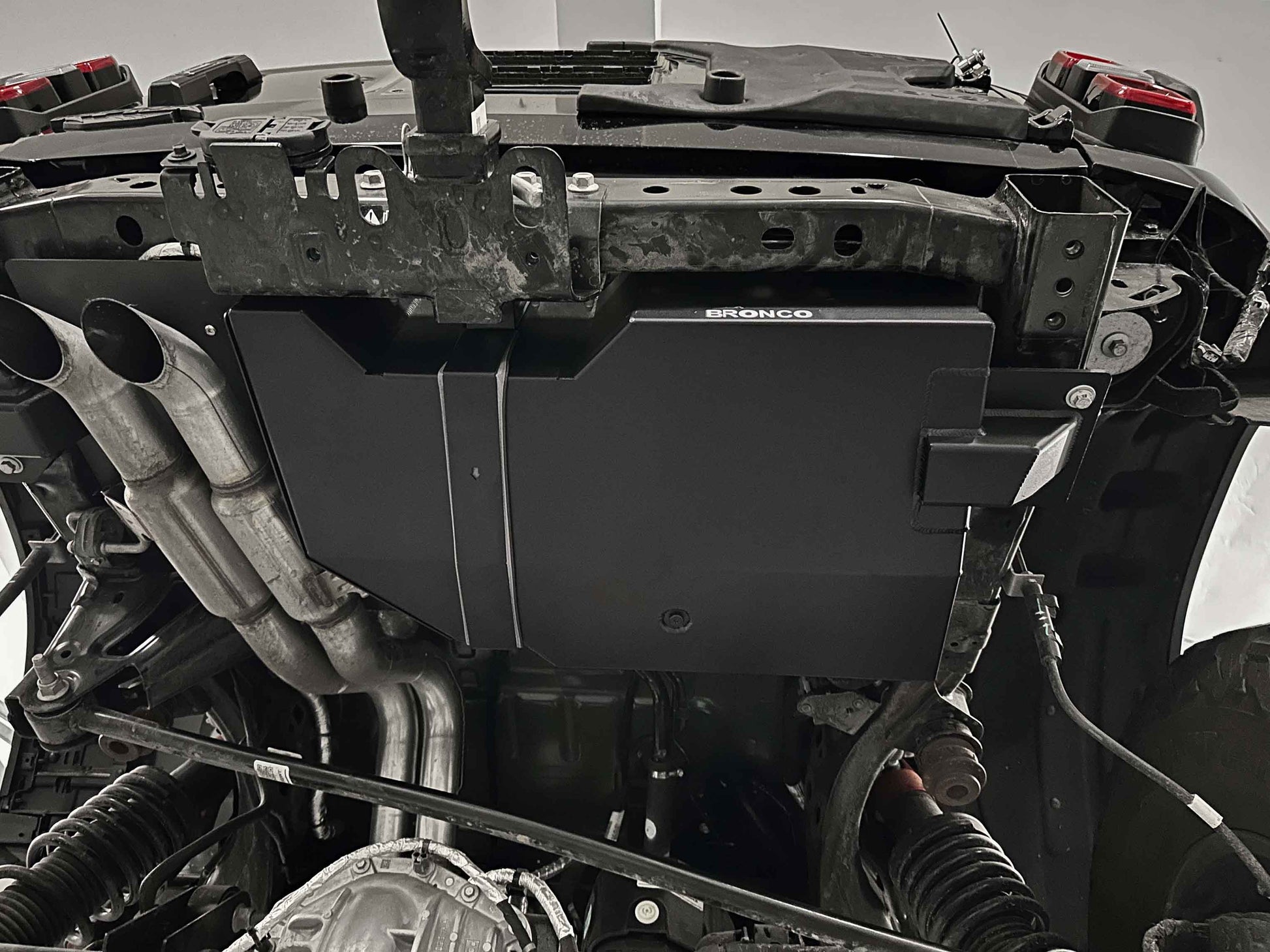

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
07
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
16.9KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
45KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
2-3 Hours
DIFFICULTY
Bolt-on with Pump Integration
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
REQUIRED
FIG. 01 // TECHNICAL SCHEMATIC
FIG. 02 // TECHNICAL SCHEMATIC
Fuel Pump Integration
To enable proper integration of the auxiliary fuel tank, a dedicated siphon valve is installed onto the factory fuel pump assembly.
This process involves a localized modification to the OEM fuel pump housing to accommodate the siphon interface, followed by installation of a precision-machined aluminum siphon valve.
The modification is limited to the fuel pump assembly only. No vehicle chassis, body structure, or electrical systems are altered. Once installed, the factory fuel pump retains its original sealing, operation, and reliability characteristics.
This process involves a localized modification to the OEM fuel pump housing to accommodate the siphon interface, followed by installation of a precision-machined aluminum siphon valve.
The modification is limited to the fuel pump assembly only. No vehicle chassis, body structure, or electrical systems are altered. Once installed, the factory fuel pump retains its original sealing, operation, and reliability characteristics.

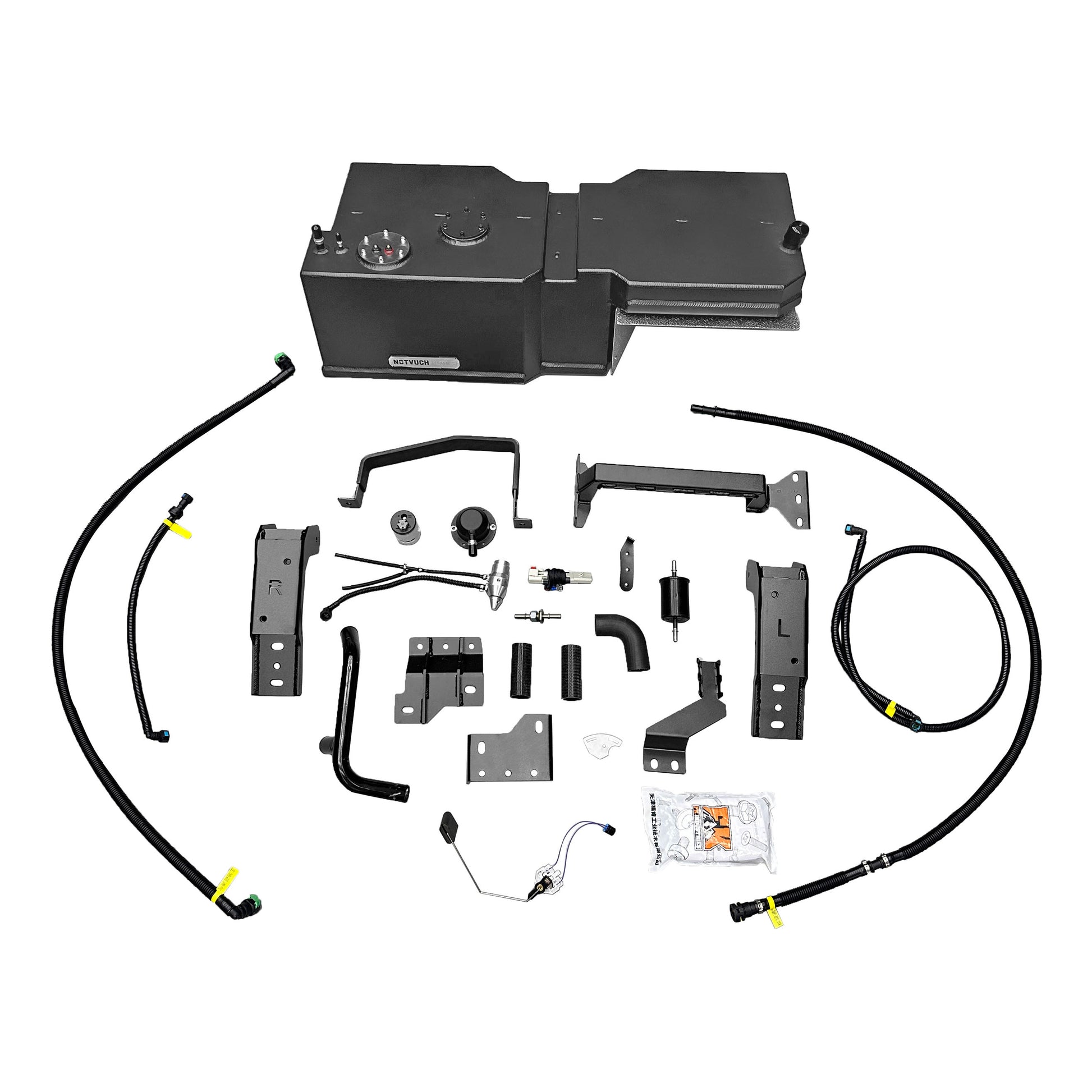

What's In The Box
60L Auxiliary Fuel Tank: Bronco Raptor-specific chassis fitment.
Heat Shielding Components: Professional-grade temperature management.
Mounting Hardware: Raptor-specific brackets and fasteners.
OEM-Grade Fuel Lines & Fittings
Heat Shielding Components: Professional-grade temperature management.
Mounting Hardware: Raptor-specific brackets and fasteners.
OEM-Grade Fuel Lines & Fittings
Installation Video Guide
SYSTEM VARIANTS
Other Engineering Configurations
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
