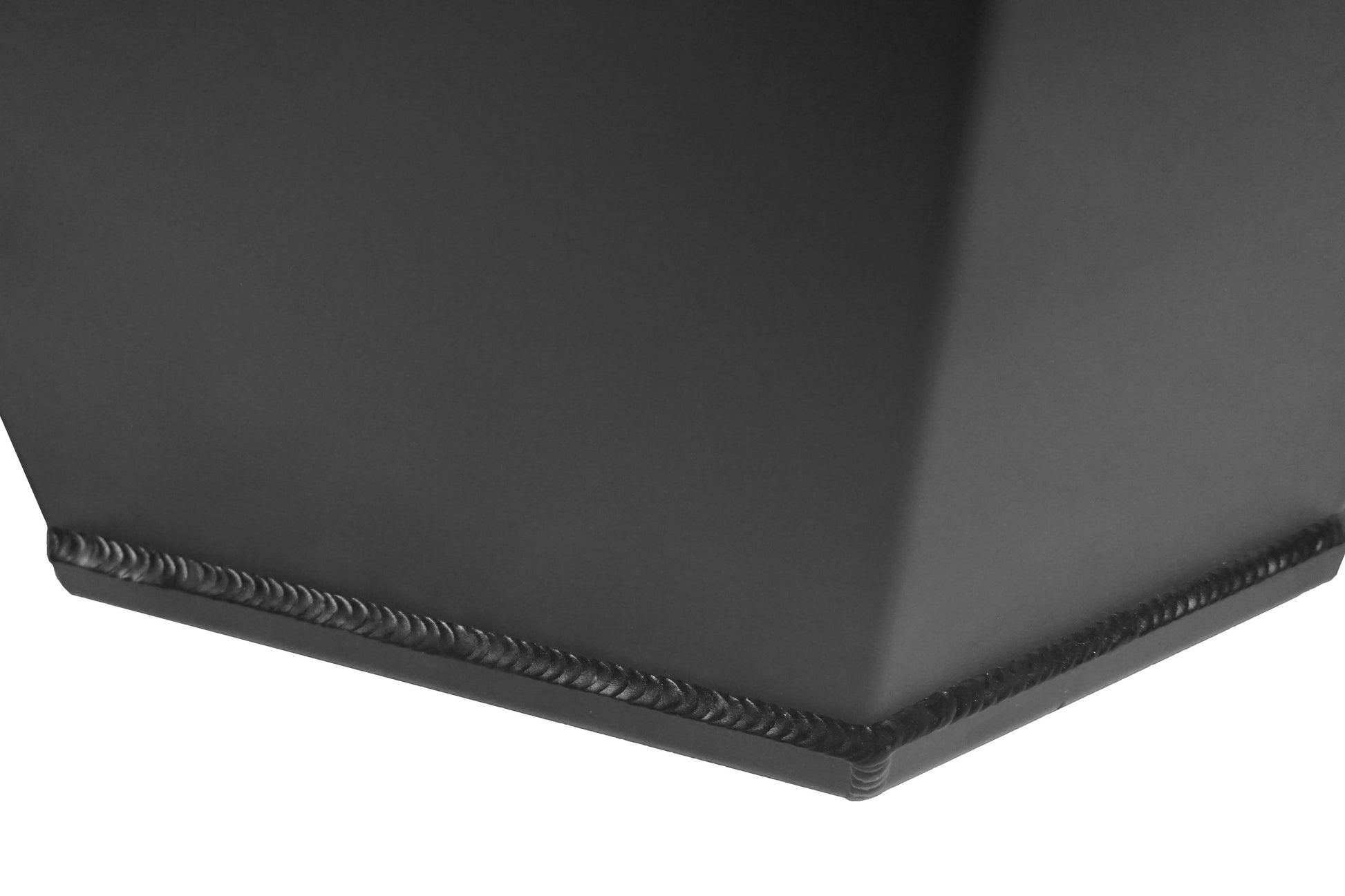

Reinforced Bottom Plate
A reinforced 5mm bottom plate improves durability and provides additional protection in uneven terrain and off-road driving conditions.
PROJECT // AUXILIARY FUEL SYSTEM
REV. 2026 / v1.1
Land Cruiser 71 Auxiliary Fuel Tank 30L
Auxiliary fuel system engineered to extend driving range through seamless fuel transfer while preserving factory balance, fitment, and system reliability.
TOTAL CAPACITY
120L
EST.RANGE INCREASE
190km - 280km+
PRIMARY MATERIAL
Aluminum-Magnesium Alloy
Vehicle Fitment
MODELLand Cruiser 71
YEARALL
ENGINE2.8T/4.0
FUELGasoline/Diesel
DATA SHEET
TECHNICAL SPECIFICATIONS
ENGINEERING DATA LOG
| MATERIAL | Aluminum-Magnesium Alloy |
|---|---|
| MOUNT POSITION | Chassis Side Mount |
| NET WEIGHT | 11.1KG |
| GROUND CLEARANCE | FLUSH WITH CHASSIS RAIL |
| COATING | Textured Black Powder Coat |
Capacity & Range
TOTAL FUEL VOLUME
120L
Factory: 90L + Fuken: 30L
EST. RANGE INCREASE
190km - 280km+
Fuel System Logic
SYSTEM TYPE
Automatic Siphon Transfer
Non-destructive auxiliary system engineered for all model years of the LC71 (4.0L Gas / 2.8T Diesel). Seamlessly integrates with the 90L OEM primary tank without requiring additional mechanical pumps or complex electrical wiring. Fuel is automatically replenished via the factory venturi system, ensuring fail-safe reliability for remote overland travel.
Gauge Behavior: The factory fuel gauge will remain at the "Full" position while fuel is actively being drawn from the 30L auxiliary tank. Once the auxiliary fuel is fully depleted, the gauge will decline naturally to reflect the 90L primary tank's level. Please note that due to the upgraded combined capacity, the ECU’s Estimated Range (DTE) cannot be calculated with absolute precision and should be utilized as a general reference only.
Structure & Protection Design
01
02
Internal Baffle System
Internal baffles help control fuel movement inside the tank, improving vehicle stability and fuel pickup reliability on uneven terrain.
03

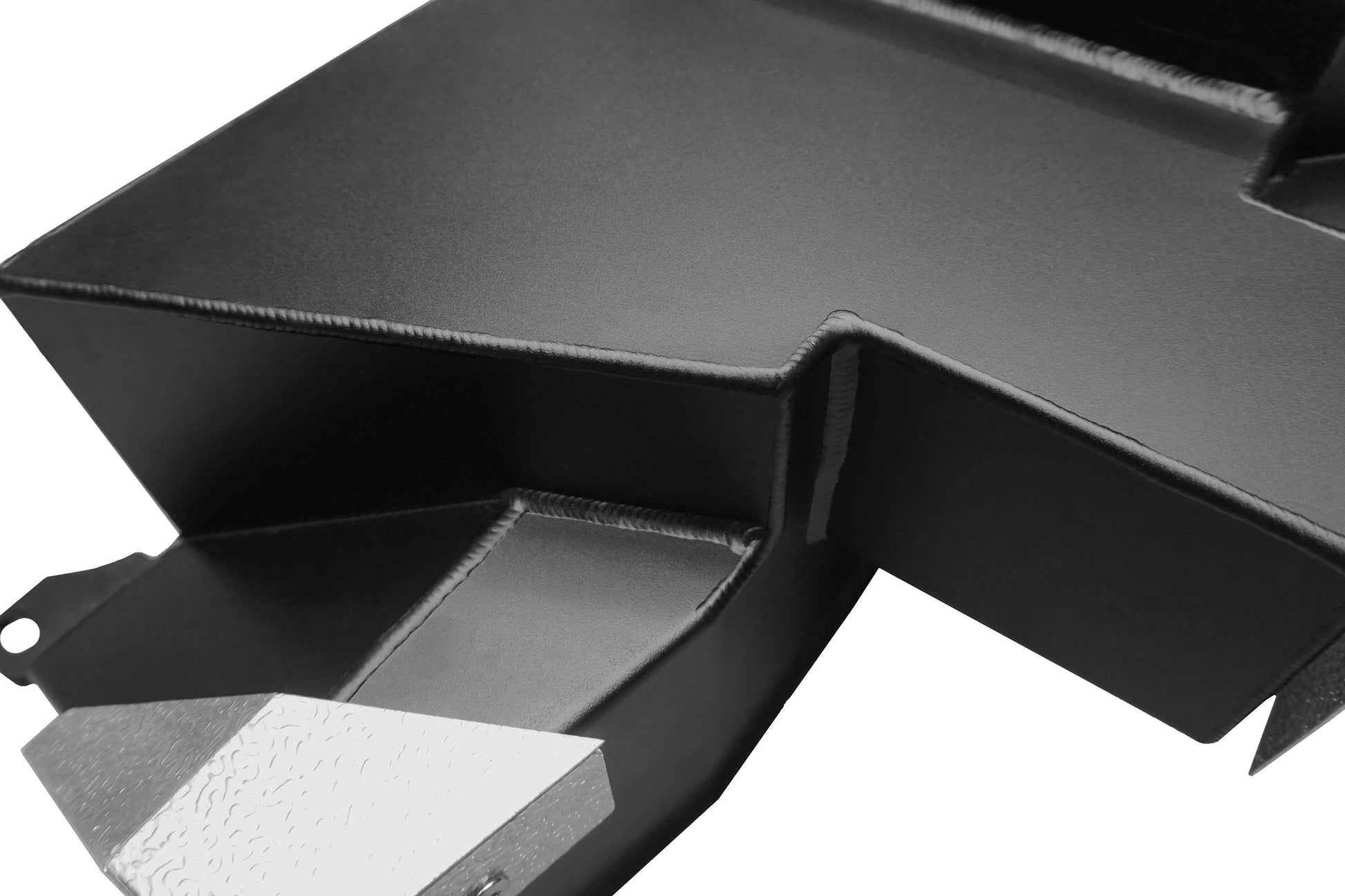

Heat Shield Protection
Integrated heat shielding reduces exhaust heat exposure and helps protect fuel system components from excessive temperature.
04

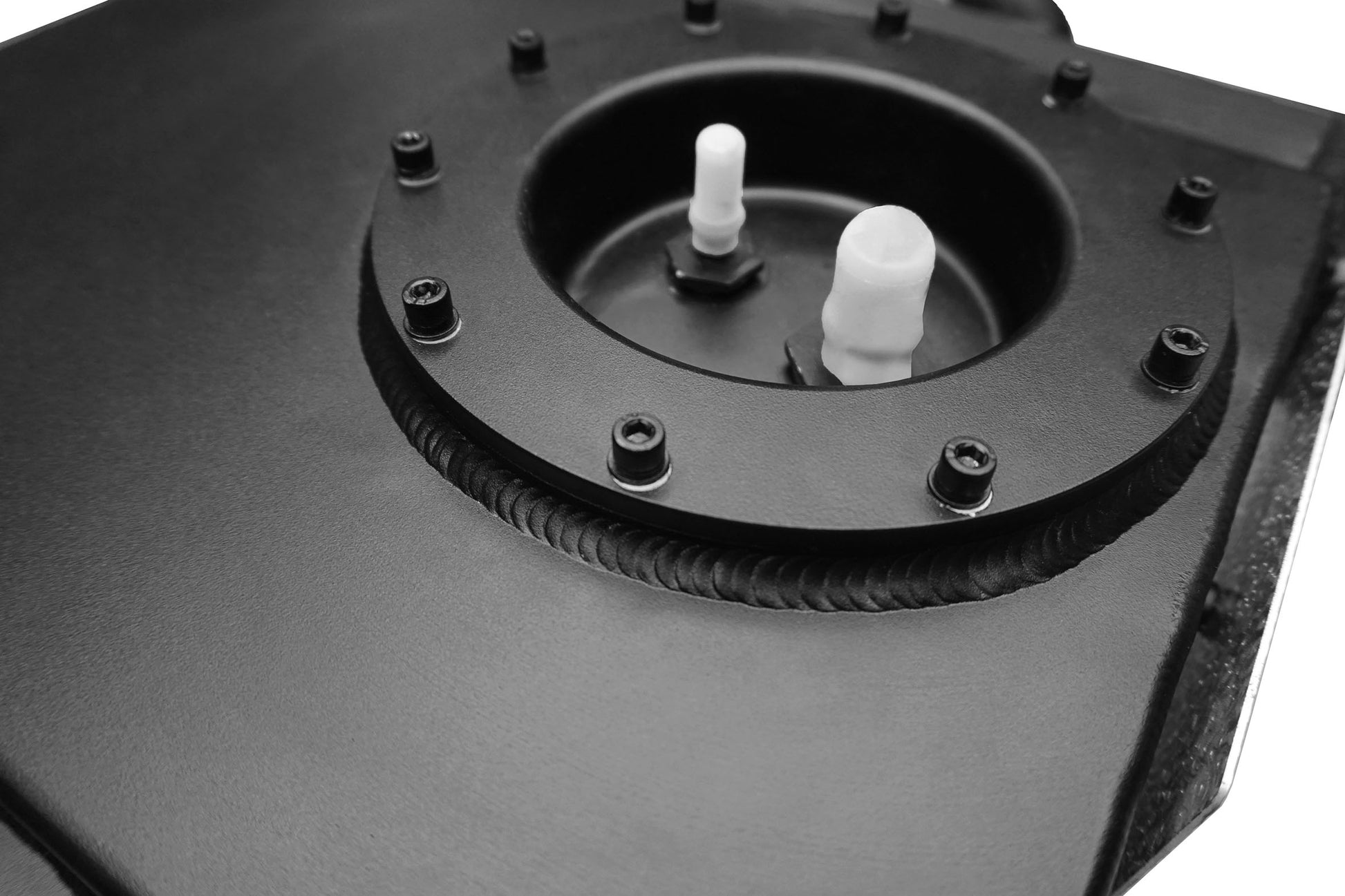

Quick-Connect Fuel Line Fittings
Equipped with OEM-style quick-connect fittings for secure sealing, simplified installation, and reliable fuel line connections.
05
Integrated Drain Port
An integrated drain port allows fuel to be safely drained for maintenance, repairs, or long-term storage without removing the tank.
06

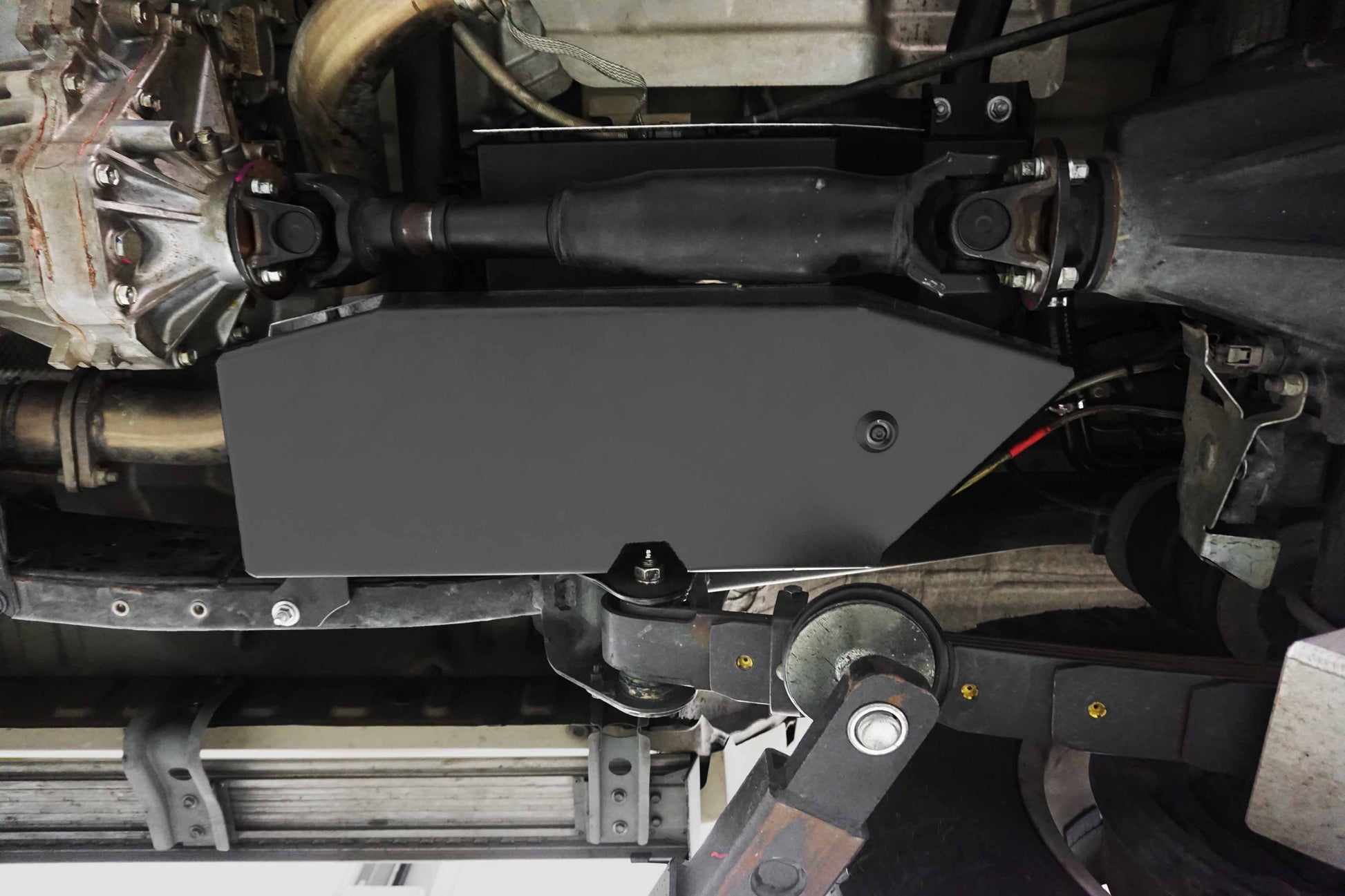

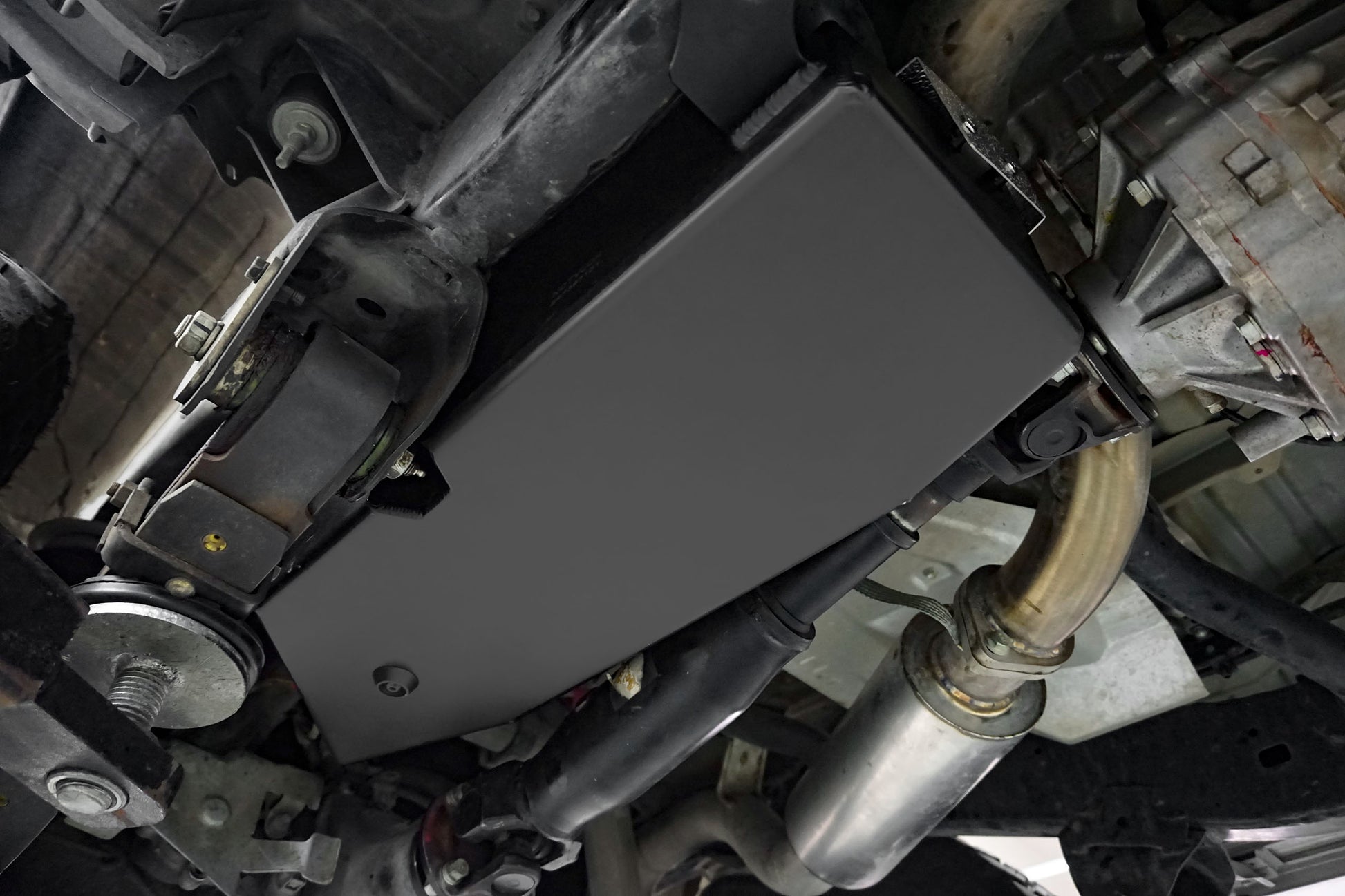

Direct Bolt-On Installation
Designed to mount to factory locations using original mounting points. No chassis cutting, drilling, or permanent modifications required.
07
Individual Serial Identification
Each tank is marked with a unique serial number for product identification, quality tracking, and authenticity verification.
Weight & Material Engineering
Designed to reduce weight without compromising strength, ideal for long-range and overland use.
ENGINEERING CHOICE
Fuken ALUMINUM TANK
11.1KG
- MATERIALAL 5052
- PROTECTIONNATIVE ANTI-RUST
- BEST FOROVERLANDING
TYPICAL ALTERNATIVE
TRADITIONAL STEEL
31KG
- MATERIALMILD STEEL
- COATINGEASY TO CORRODE
- IMPACTHIGH CHASSIS LOAD
TECH DOC // INSTALLATION
Installation & Technical Notes
EST. TIME
4 Hours
DIFFICULTY
100% Bolt-on
CHASSIS MOD
NONE
EXHAUST MOD
NONE
PUMP MOD
NONE

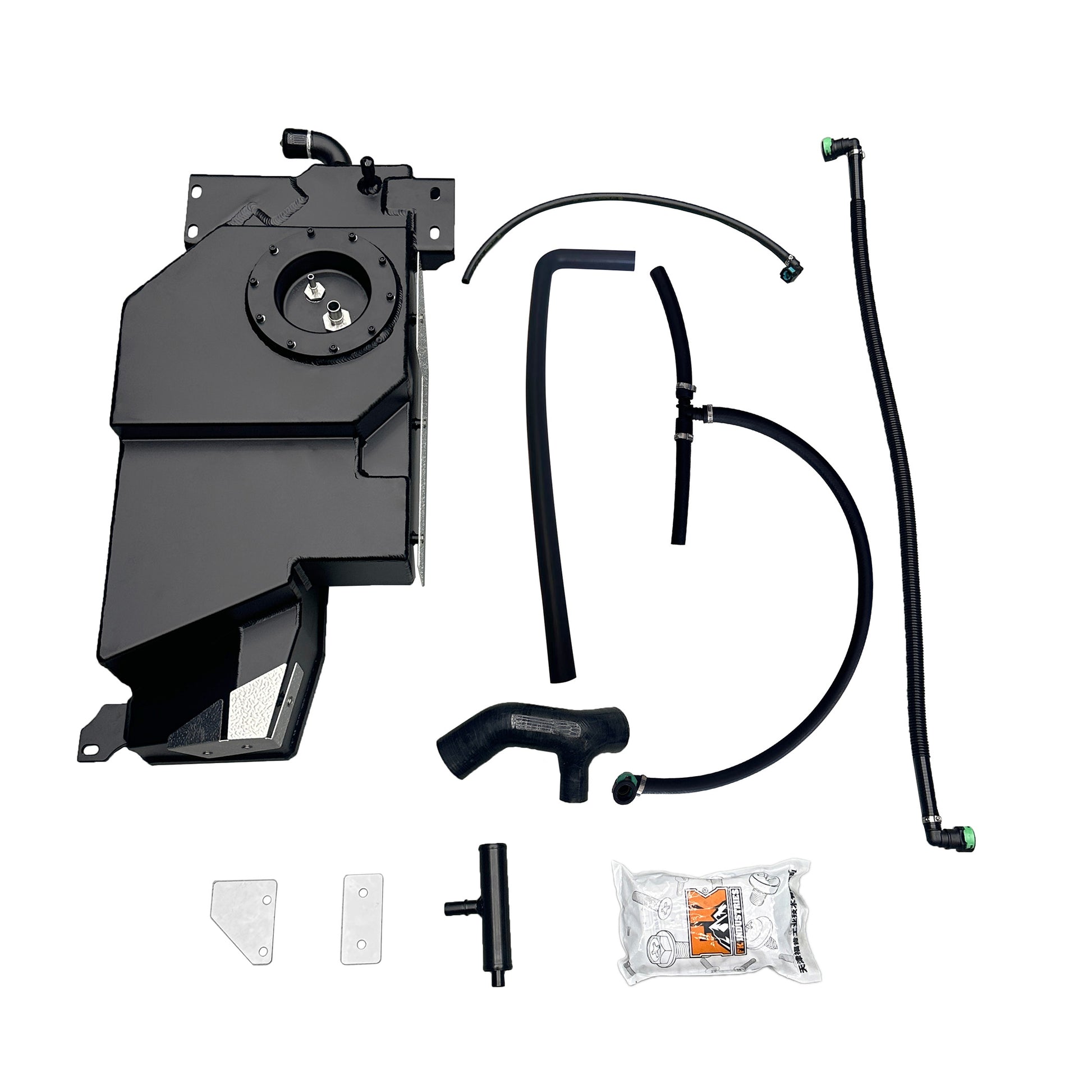

What's In The Box
30L Auxiliary Fuel Tank: Optimized for transmission-side fitment.
Mounting Hardware: Factory-compatible mounts and brackets.
Protection: Integrated heat shield for proximity components.
OEM Standards: Vehicle-specific fuel lines and fittings included.
Mounting Hardware: Factory-compatible mounts and brackets.
Protection: Integrated heat shield for proximity components.
OEM Standards: Vehicle-specific fuel lines and fittings included.
Installation Video Guide
Global Shipping
Available to most countries. Professional logistics network for oversized automotive parts.
Secure Packaging
Reinforced packaging engineered for heavy-duty fuel systems and long-distance maritime transport.
Delivery Time
Estimated 25–40 days depending on destination and selected shipping method (Sea/Air/Rail).
LONG-TERM ASSURANCE
3-YEAR WARRANTY & SUPPORT
Built to support long-term ownership, not just short-term trips. We provide transparent coverage for the life of your expedition rig.
TANK BODY
3-YEAR STRUCTURE
Full structural coverage against manufacturing defects under normal off-road usage.
COMPONENTS
LIFETIME SUPPORT
Ongoing technical support and replacement parts availability for original owners.
